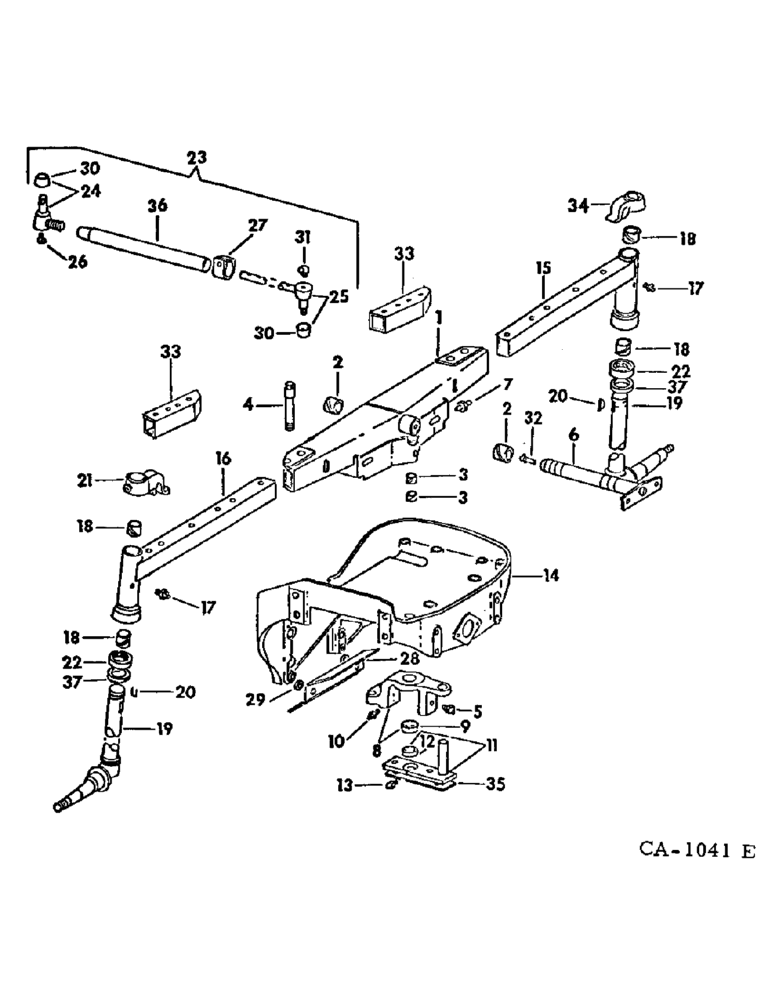

Запчасти Case IH 574 (14-01) - SUSPENSION, FRONT AXLE, STRAIGHT, ROW CROP TRACTORS, 2500 SERIES A TRACTORS Suspension

.

SERVICE PARTS, adjustable front axle, 48 to 80 in. tread, row crop tractors, consists of all unmarked parts, and those marked unit A

1шт.

.

SERVICE PARTS, three position front axle, 54, 62 or 74 in. tread, 2500 series A tractors, consists of all unmarked parts, and those marked unit B

1шт.

1

539161R92

CENTER AXLE

AXLE ASSY, front, will work for 527790R91, includes ref nos 2 and 3

1шт.

2

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

3

405574R1

BUSHING

support

2шт.

4

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

.

405576R1

NUT

front axle

4шт.

5

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4-65 deg angle drive type

1шт.

6

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot, on order for pin 405577R1 and plate 405578R1 furnish shaft 539128R1 and fitting 273352

1шт.

.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

7

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

8

405585R11

ARM

ASSY, power steering center, 574 tractors w/serial no. 100000 and below and 2500 series A tractors w/serial no. 100003 and below

1шт.

8

67499C91

ARM ASSY.

ARM ASSY, power steering center, 574 tractors w/serial no. 100001 and aboe and 2500 series A tractors w/serial no. 100004 and above

1шт.

9

379748R1

BUSHING

1шт.

10

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub, center arm

1шт.

11

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder

1шт.

.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

12

379748R1

BUSHING

1шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

1шт.

14

405587R4

BOLSTER

front, diesel engine tractors

1шт.

.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 pln type 5

6шт.

14

405586R3

BOLSTER

front, gasoline engine tractors

1шт.

.

NLS

NO LONGER SERVICED

5/8 x 2-1/2 pln type 5

6шт.

15

66704C91

EXTENSION

ASSY, front axle, LH, unit A, tractors with serial no. 10000 and below, will work for 527797R92

1шт.

15

67501C91

EXTENSION ASSY.

EXTENSION ASSY, front axle, LH, unit A, tractors with serial no. 100001 and above

1шт.

15

66716C92

EXTENSION ASSY, front axle, LH, unit B, will work for 534296R94

1шт.

16

66705C91

EXTENSION

ASSY, front axle, RH, unit A, tractors with serial no. 100000 and below, will work for 527798R92

1шт.

16

67502C91

EXTENSION ASSY.

EXTENSION, front axle, RH, unit A, tractors with serial no. 100001 and above

1шт.

16

66717C92

EXTENSION ASSY, front axle, RH, unit B, will work for 527297R94

1шт.

17

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

18

376099R1

BUSHING

4шт.

19

527292R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, unit A

2шт.

19

534288R91

STEERING KNUCKLE

KNUCKLE ASSY, steering, unit B, tractors with serial no. 100003 and below

2шт.

19

67522C91

KNUCKLE JOINT

KNUCKLE ASSY, steering, unit B, tractors with serial no. 100004 and above

2шт.

20

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

21

538691R1

ARM

steering knuckle RH, replaces 527802R1, 574 tractors with serial no. 1000000 and below and 2500 series A tractors with serial no. 100003 and below

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

21

67525C1

ARM

steering knuckle RH, 574 tractors with serial no. 10001 and above and 2500 series A tractors with serial no. 100004 and above

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

22

405831R91

BEARING

steering knuckle thrust

2шт.

23

ROD ASSY, tie, not serviced separately, order component parts

2шт.

24

527658R91

BALL JOINT

END ASSY, RH

2шт.

24

527658R91GV

TIE-ROD

Value, Tie Rod End

2шт.

.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

.

390686R1

JAM NUT

11/16-18 hex jam

1шт.

25

65079C91

END

ASSY, LH, will work for 529497R91

2шт.

.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

.

390686R1

JAM NUT

11/16-18 hex jam

1шт.

26

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

27

43747D

CLAMP

2шт.

.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 x 1-7/8 hex-hd cap

2шт.

.

9421096

LOCK WASHER,7/16"

2шт.

.

271505

BODY

7/16-NF pln type 5

2шт.

28

534812R1

BAFFLE

bolster air

1шт.

.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, gasoline engine tractors

2шт.

.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap, diesel engine tractors, Course Threads

2шт.

29

534813R1

SPACER

bolster air baffle, diesel engine tractors

2шт.

.

369936R1

WASHER

bolster air baffle

2шт.

30

358900R1

SEAL

COVER, dust

4шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

2шт.

32

273352

SCREW

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

33

66755C92

EXTENSION

front axle w/product graphic part

2шт.

.

18752R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

SCREW, 3/4-10 x 6-1/2 hex-hd cap

8шт.

.

425-1012

NUT,3/4"-10, G5

3/4-10 hex., row crop or tabacco special tractors

8шт.

34

538690R1

ARM

steering knuckle LH, replaces 527801R1, 574 tractors with serial no. 100000 and below and 2500 series A tractors with serial no, 100003 and below

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

34

67524C1

ARM

steering knuckle LH, 574 tractors with serial no. 100001 and above and 2500 series a tractors with serial no. 100004 and above

1шт.

.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

.

102637

NUT,1/2"-13, G5

1шт.

35

67976C1

PLATE, LOCKING

STRIP, straight center arm bolt lock, replaces washers 103323

1шт.

36

529496R1

TUBE

tie rod, unit A, tractors w/serial no. 100000 and below

2шт.

36

67529C1

TUBE,0.766" ID, 1.005" OD, 16.21" Length

tie rod, unit A, tractors w/serial no. 100001 and above

2шт.

36

527659R1

TUBE

tie rod, unit B, tractors w/serial no. 100003 and below

2шт.

36

67529C1

TUBE,0.766" ID, 1.005" OD, 16.21" Length

tie rod, unit B, tractors w/serial no. 100004 and above

2шт.

36

66756C2

TUBE,19.38 mm ID, 25.46 mm OD, mm Length

tie rod, row crop or tobacco special tractors

2шт.

37

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.
