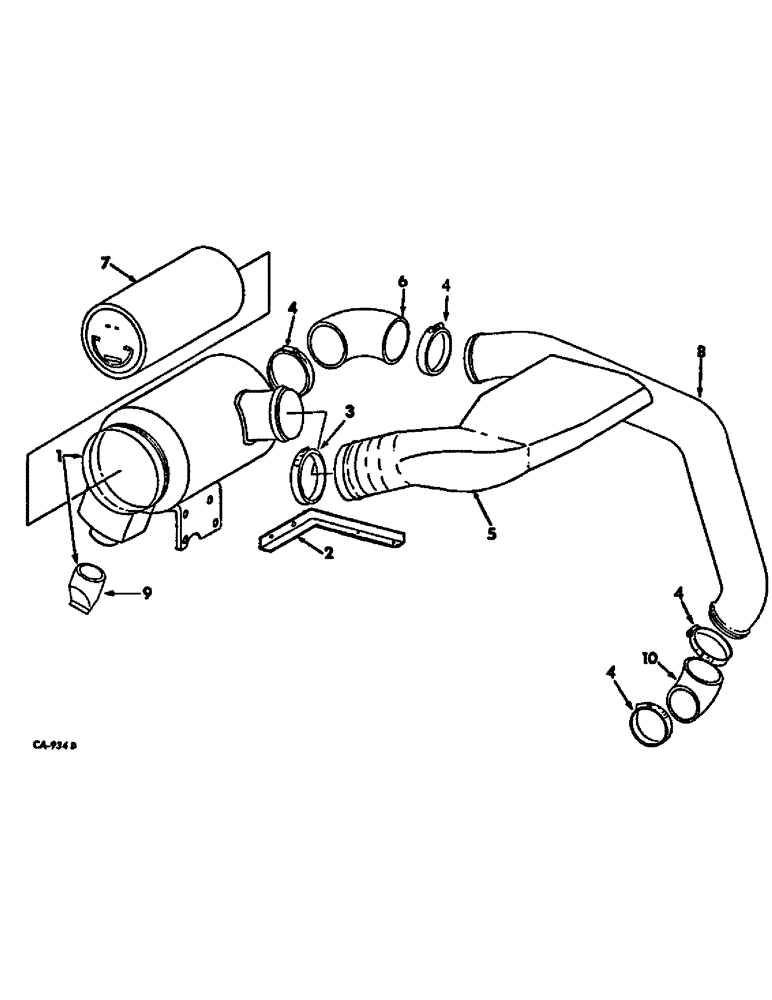

Запчасти Case IH 574 (12-01) - POWER, AIR CLEANER AND CONNECTIONS Power

1

402612R93

FILTER CARTRIDGE

CLEANER ASSY, air, diesel engine tractors, consists of ref nos 7 and 9

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3118679R1

RETAINER

LATCH, air cleaner

1шт.

1

402620R92

CLEANER

ASSY, air, gasoline engine tractors, consists of ref nos 7 and 9

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3118679R1

RETAINER

LATCH, air cleaner

1шт.

2

67290C1

BRACKET

ASSY, air cleaner MTG, replaces 527273R1, diesel engine tractors

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

21423R1

CLAMP

3-5/16 hose

1шт.

4

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, no. 44 hose, gasoline engine tractors

4шт.

5

529864R1

DUCT

air inlet

1шт.

6

402614R1

HOSE, air cleaner outlet, gasoline engine tractors with serial no. 4539 and below

1шт.

402615R1 HOSE FOR DIESEL

1шт.

6

382400R1

INTAKE AIR HOSE,2.25" ID, 2.50" ID, SAE 20R4, Class SC

Air Cleaner Outlet, Gasoline engine tractors with serial no. 4540 and above 2.25" ID, 2.50" ID, SAE 20R4, Class SC

1шт.

7

114597C91

PACKAGE

ELEMENT ASSY, gasoline engine tractors

1шт.

7

114596C91

PACKAGE

ELEMENT ASSY, diesel engine tractors

1шт.

8

402621R1

PIPE, air cleaner to carburetor, gasoline engine tractor, furnish pipe 539949R1, 402500R2 and hose 382400R1

1шт.

8

539949R1

PIPE, air cleaner to carburetor, gasoline engine tractors

1шт.

9

529855R1

VALVE

dust unloader

1шт.

10

400938R1

INTAKE AIR HOSE

Carburetor Inlet, Gasoline engine tractors with serial no. 4539 and below 2.00" ID x 2.50"

1шт.

10

402500R2

HOSE

Carburetor Inlet, Gasoline Engine Tractors with Serial No. 4540 and Above 2.00" ID, 2.25" ID x 3.30", SAE J200

1шт.
