Запчасти Case IH 574 (17-12) - MOUNTED EQUIPMENT, BACKHOE CONSOLE, SEAT SUPPORT AND FLOOR PLATE Mounted Equipment

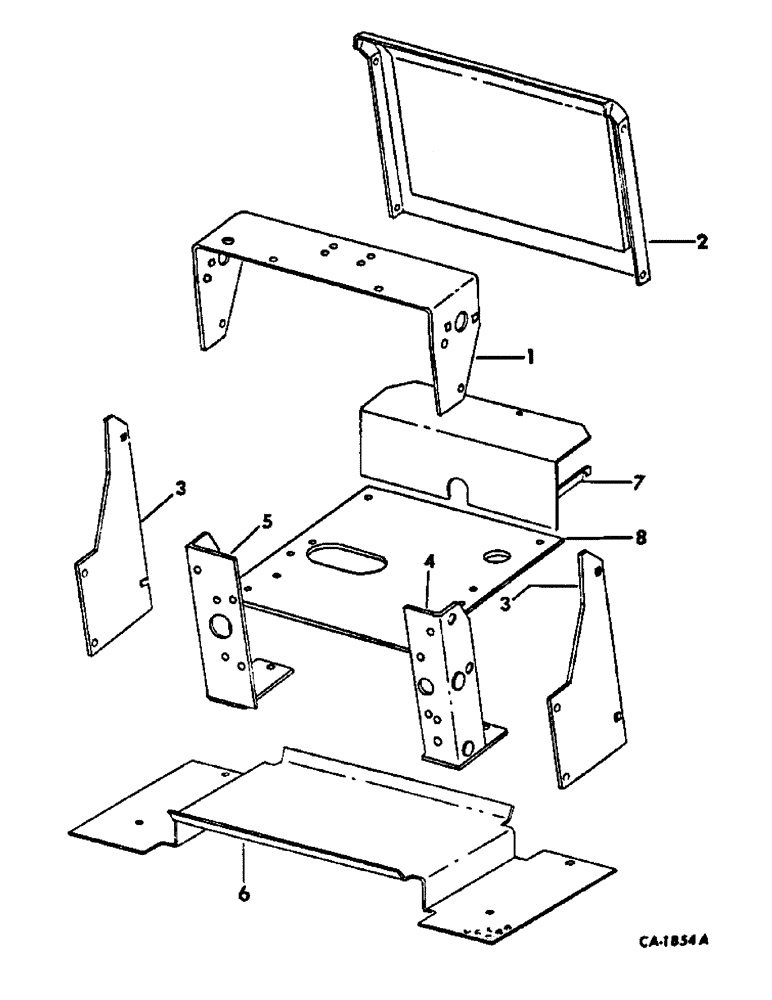

Схема запчастей Case IH 574 - (17-12) - MOUNTED EQUIPMENT, BACKHOE CONSOLE, SEAT SUPPORT AND FLOOR PLATE Mounted Equipment
7
6
3
8
2
4
1
3
5

Артикул

Название

Примечание

Количество

1

481663R1

SUPPORT, seat

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

481686R1

SHROUD, control frt

1шт.

3

481685R1

SHROUD, control side

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

459063R1

SPRING NUT

2 RETAINER, 5/16 speed grip nut

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

481658R93

BRACKET ASSY, valve support LH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

481659R93

BRACKET ASSY, valve support RH

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd med lock

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

60511C1

IGNITION SWITCH

COVER, floor, replaces 481687R2, strip, 492598R1, spacer 615860R1, bracket 546306R1 and bracket 545765R1

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 1 znd hex-hd cap

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

7

547344R1

COVER ASSY, console rear

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd hex-hd tap.

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 znd

2шт.

8

546305R1

PLATE, console support

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

Выбрано товаров: 27
