Запчасти Case IH 574 (17-11) - MOUNTED EQUIPMENT, BACKHOE SUBFRAME Mounted Equipment

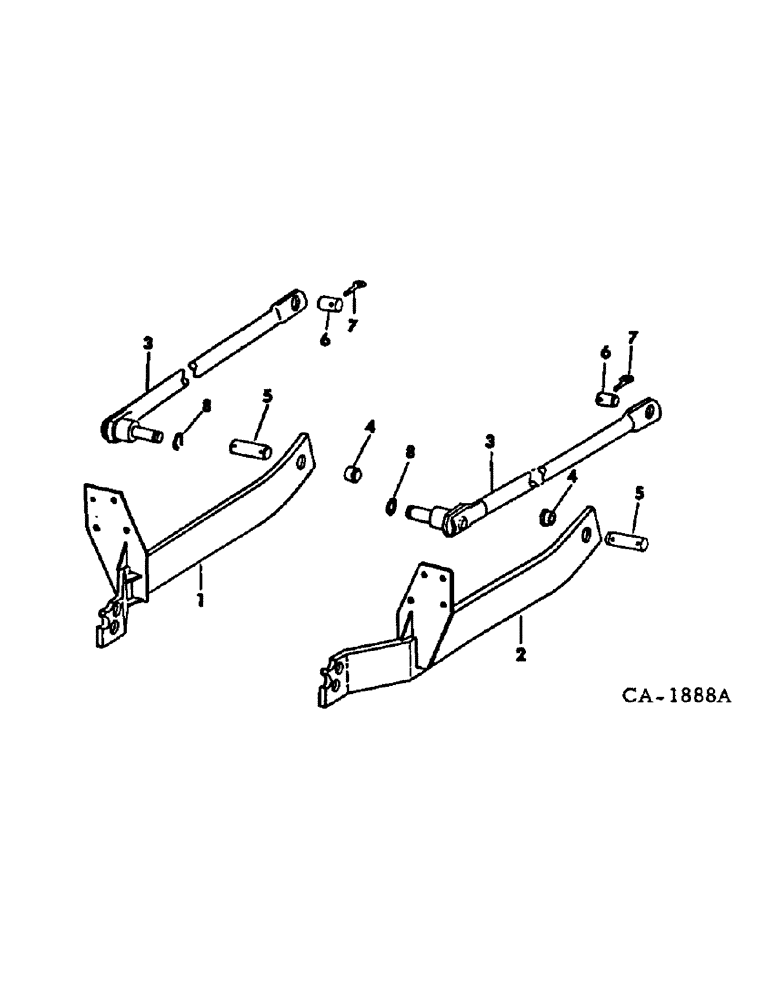

Схема запчастей Case IH 574 - (17-11) - MOUNTED EQUIPMENT, BACKHOE SUBFRAME Mounted Equipment
5
2
3
5
3
7
6
1
7
6
4
4
8
8

Артикул

Название

Примечание

Количество

1

546108R1

SUBFRAME ASSY, LH

1шт.

2

546109R1

SUBFRAME ASSY, RH

1шт.

3

546117R2

SUPPORT ASSY, maniframe upper

2шт.

22872

HYDRAULIC HOSE

WASHER, 1-17/32 x 2-1/2 x 11 ga

2шт.

4

469189R1

CAM, mounting

2шт.

5

546121R1

PIN, front subframe mounting

2шт.

22872R1

WASHER

1-17/32 x 2-1/2 x 11 ga

4шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

4шт.

6

546122R1

PIN

mainframe support

2шт.

7

544611R1

ROD

EYE, bar pin straight

2шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 znd hex-hd cap

2шт.

24958R1

BOLT,Hex, 5/8" - 11 x 8", Gr 8

SCREW, 5/8-11 x 8 znd hex-hd cap type 8

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

69339R1

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

Выбрано товаров: 15
