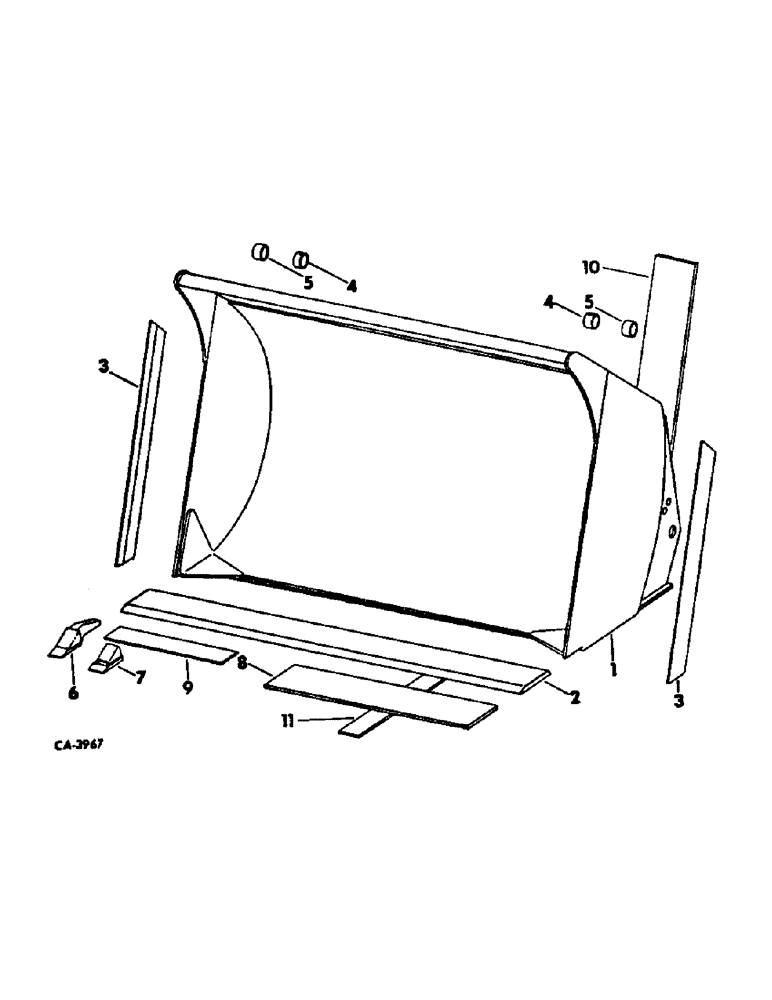

Запчасти Case IH 574 (17-09) - MOUNTED EQUIPMENT, LOADER BUCKETS Mounted Equipment

1

BUCKET ASSY, 49 in., 13 cubic feet, consists of all parts marked unit A

1шт.

1

BUCKET ASSY, 61 in., 13 cubic feet, consists of all parts marked unit B

1шт.

1

BUCKET ASSY, 61 in., 16 cubic feet, consists of all parts marked unit C, not for use on 574 tractors with narrow tread front axle

1шт.

1

BUCKET ASSY, 70 in., 3/4 cubic yard, consists of all parts marked unit D, not for use on 2500 series A Lo-Boy tractors

1шт.

1

BUCKET ASSY, 79 in., 7/8 cubic yard, consists of all parts marked unit E, not for use on 574 2500 series A Lo-Boy tractors

1шт.

1

BUCKET ASSY, snow, 1-1/4 cubic yard, consists of all parts marked unit F

1шт.

2

547274R1

EDGE, front cutting, unit A

1шт.

2

546601R2

EDGE, front cutting, unit B and C

1шт.

2

545201R2

BLADE

EDGE, front cutting, unit D

1шт.

2

546606R1

EDGE, front cutting, unit E

1шт.

2

535423R1

BLADE

EDGE, front cutting, unit F

1шт.

3

545204R1

EDGE, side cutting, units A, C, and D

2шт.

3

546617R1

EDGE, side cutting, unit B

2шт.

3

546867R1

EDGE, side cutting, unit E

2шт.

3

535429R1

EDGE, side cutting, unit F

2шт.

4

378554R1

SPACER

BOSS, units A thru F

4шт.

5

378555R1

SPACER

BOSS, units A thru F

4шт.

6

547227R91

SHANK & TOOTH ASSY, 6 used with unit A, 8 used with units C and E, 9 used with unit D

1шт.

7

545596R1

TOOTH

POINT, tooth, optional w/point 486433R1, 6 used with unit A, 8 used with units C and E, 9 used with unit D

1шт.

7

486433R1

POINT

tooth, optional w/point 545596R1, 6 used with unit A, 8 used with units C and E, 9 used with unit D

1шт.

8

545202R2

PLATE, wear, units A, B, C and D

2шт.

8

546868R1

PLATE, wear, unit E

2шт.

9

545203R1

PLATE, wear, units A, B, C, and D

1шт.

9

535485R1

PLATE, wear, unit E

3шт.

10

546817R1

BAR, runner, unit F

2шт.

11

535427R1

BAR, runner, unit F

2шт.

59994C91

PARTS ACCESSORY, chain anchor, consists of (2) anchor 59993C1 (NSS)

1шт.
