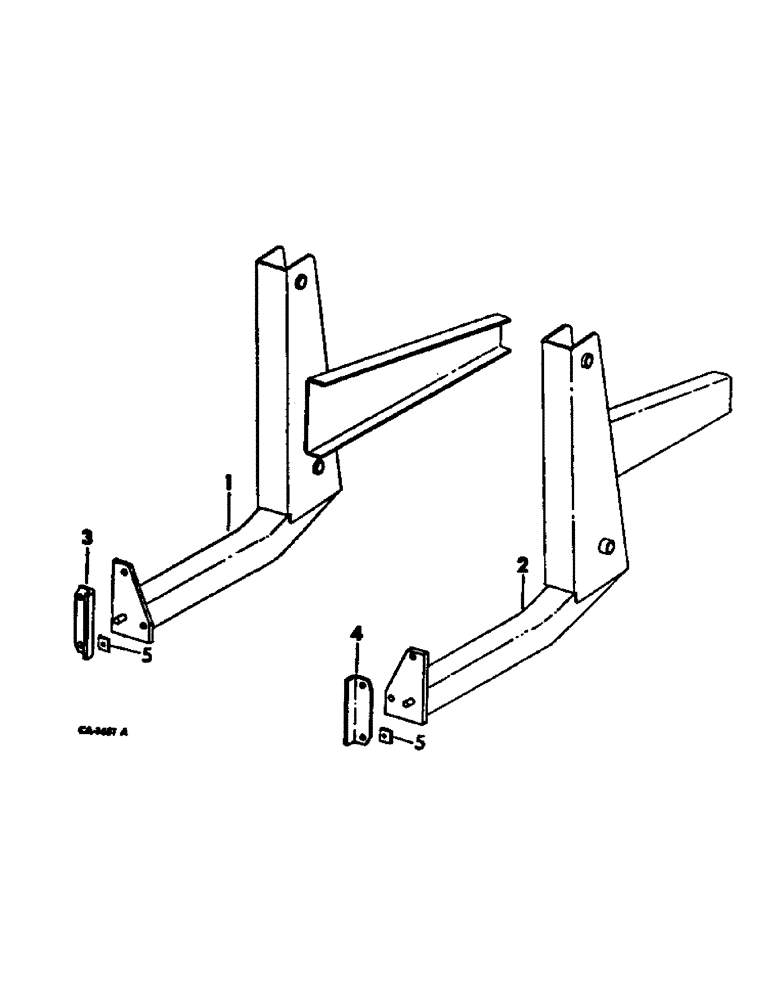

Запчасти Case IH 574 (17-03) - MOUNTED EQUIPMENT, SUBFRAME, TRACTORS WITH 3142 BACKHOE AND/OR 2050A LOADER Mounted Equipment

1

61200C1

SUBFRAME ASSY, loader w/backhoe LH, will work for 546197R2

1шт.

1

544543R2

SUBFRAME ASSY, loader LH

1шт.

24958R1

BOLT,Hex, 5/8" - 11 x 8", Gr 8

SCREW, 5/8-11 x 8 znd hex-hd cap, 2 for tractors with loader, 4 for tractors with backhoe

1шт.

21434R1

NUT,5/8"-11, G8

5/8-11 znd hex., 2 for tractors with loader, 4 for tractors with backhoe

1шт.

2

61201C1

SUBFRAME ASSY, loader w/backhoe RH, will work for 59864C1

1шт.

2

59871C1

SUBFRAME ASSY, loader RH, tractors without tractor valves

1шт.

2

547447R2

SUBFRAME ASSY, loader RH, tractors with tractor valves

1шт.

24958R1

BOLT,Hex, 5/8" - 11 x 8", Gr 8

SCREW, 5/8-11 x 8 znd hex-hd cap, 2 for tractors with loader, 4 for tractors with backhoe

1шт.

21434R1

NUT,5/8"-11, G8

5/8-11 znd hex., 2 for tractors with loader, 4 for tractors with backhoe

1шт.

3

544417R1

PLATE ASSY, tie RH

1шт.

4

544417R1

PLATE ASSY, tie LH

1шт.

5

59320C1

BAR, axle spacer

2шт.
