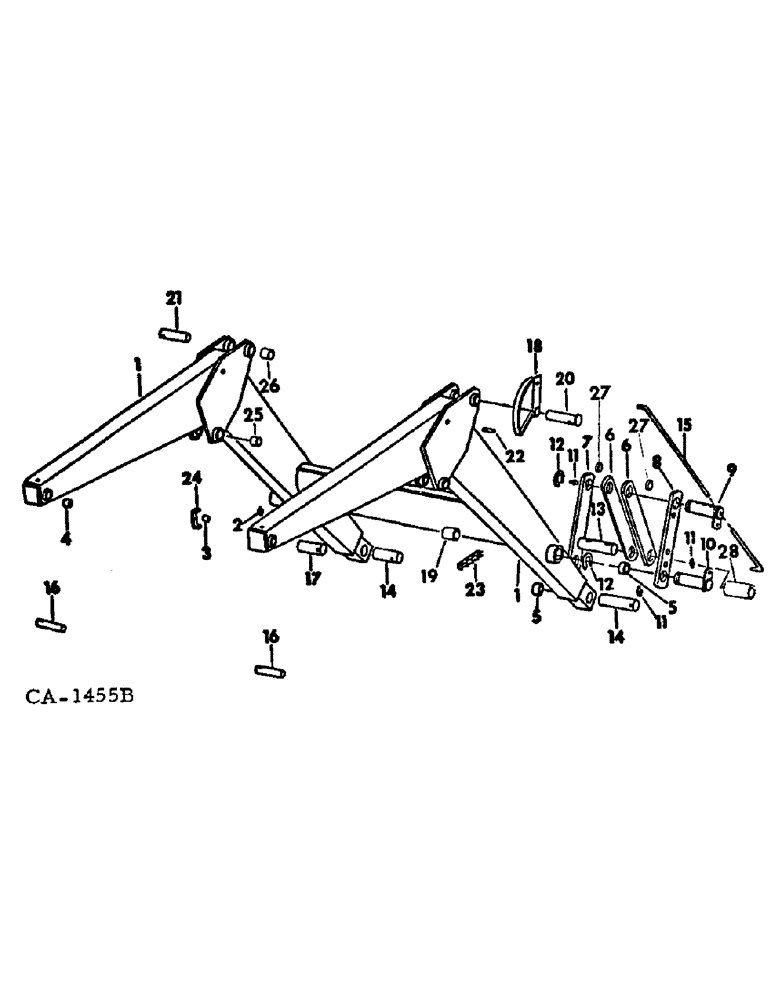

Запчасти Case IH 574 (17-02) - MOUNTED EQUIPMENT, LOADER BOOM AND CONNECTIONS, 3050 SERIES A Mounted Equipment

1

544432R3

BOOM ASSY

1шт.

18252R1

NUT,5/16"-18, GB

5/16-18 nylon insert

3шт.

2

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str drive type lub

4шт.

3

M77214

SPACER, tube

1шт.

4

378478R1

BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L

loader boom, 1-1/8 ID x 1-3/8 OD x 47/64 in. long

4шт.

5

468673R1

BUSHING

loader boom, 1-3/8 ID x 1-5/8 OD x 1-7/64 in. long

8шт.

6

61160C91

LINK ASSY, bucket

4шт.

7

544452R2

BAR, boom inner

2шт.

8

56192C1

BAR, boom link

2шт.

9

56189C1

PIN ASSY.

PIN ASSY, linkage, will work for 544454R1

2шт.

23446R1

WASHER

1.406 x 2.25 x 1.20 znd

4шт.

10

56191C1

PIN ASSY, linkage lower, replaces 544457R1

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8-27 PTF str short lub

6шт.

12

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

4шт.

13

544459R1

PIN

bucket top

2шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 C-Z headed

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

14

544460R1

PIN

bucket pivot

2шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 headed

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

15

59797C1

ROD, bucket link, will work for 544461R1

1шт.

59795C1

NUT, spring puch on

3шт.

16

61074C1

PIN

subframe to lift cyl & bucket cyl

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-13/16 std-hd

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

14

61074C1

PIN

subframe to boom, replaces 378559R2

2шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-13/16 std-hd

2шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

2шт.

18

59796C1

SECTOR

indicator, will work for 399136R1, on order for 399136R1, also furnish spacer, 480127R1

1шт.

19

544446R1

BOSS, boom lower

2шт.

20

61075C1

SHAFT ASSY, will work for 480440R11

1шт.

21

61073C1

AXLE PIN

PIN, lift & bucket cyl to boom, will work for 378479R1

3шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-13/16 headed

4шт.

12235R1

1/8" x 5/8", self-opening 1/8" x 5/8"

4шт.

22

405533R1

PIN, bucket indicator

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

23

467192R1

CHANNEL

CLAMP, tube

3шт.

24

467193R1

CLAMP, tube

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SCREW, 5/16-18 x 2-1/4 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

25

378472R1

SPACER

BOSS, side plate

4шт.

26

378473R1

SPACER

BOSS, side plate

4шт.

27

544451R1

BUSHING

bucket link

8шт.

28

61161C1

SPACER, link

2шт.
