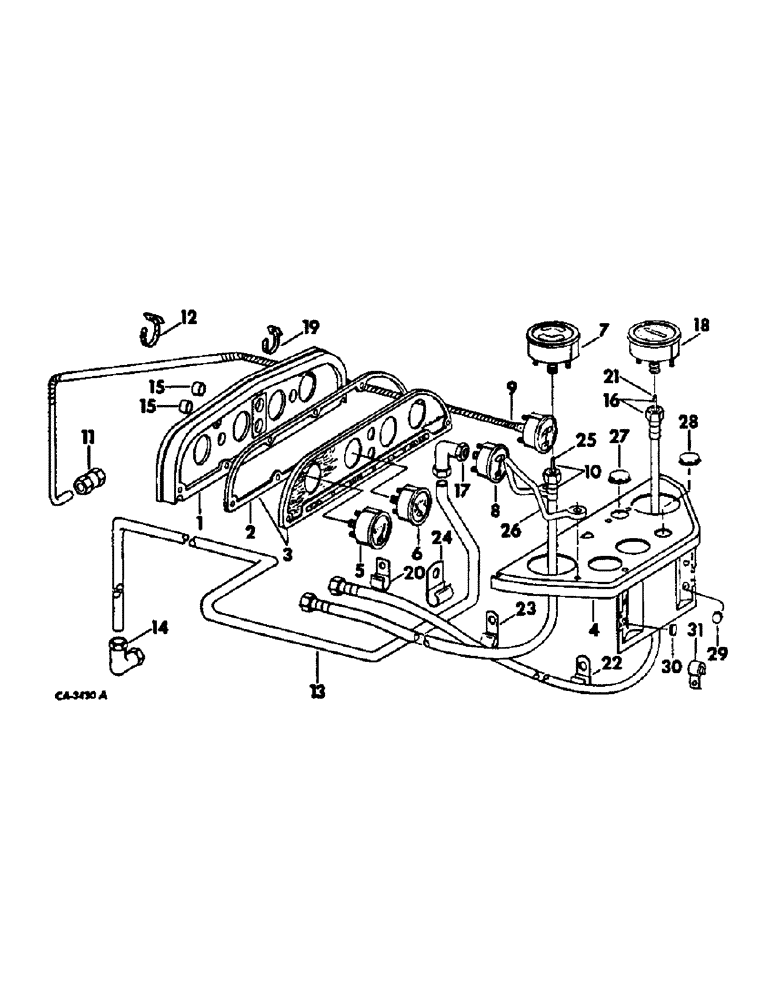

Запчасти Case IH 574 (11-01) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES Instruments

1

529357R2

HOUSING

instrument panel gauge

1шт.

2

529360R1

GASKET

1шт.

3

529358R11

PANEL

ASSY, instrument face

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp p/hdcr mach

8шт.

4

527566R3

PANEL ASSY, instrument, synchromesh transmission tractors with serial number 114908 and below

1шт.

4

114627C1

PANEL ASSY, instrument, synchromesh transmission tractors with serial number 114909 and above

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, 1/4 x 3/8 type 5

2шт.

167214

CHAIN

SCREW, no. 12 x 1/2 p/hdcr tap

4шт.

4

527570R4

PANEL ASSY, instrument, hydrostatic drive tractors w/hand controls

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 znd hex-hd cap

2шт.

167214

CHAIN

SCREW, 12-24 x 1/2 C-Z cr-rec-pan-hd tap

4шт.

4

537965R2

PANEL ASSY, instrument, 2500 series A hydrostatic drive tractors with foot controls

1шт.

167214

CHAIN

SCREW, 12-24 C-Z cr-rec-pan-hd tap.

4шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 znd hex-hd cap

2шт.

5

529804R1

FUEL GAUGE

GAUGE ASSY, electric feul

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

6

536229R1

INDICATOR

GAUGE ASSY, charge indicator

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

7

529798R1

TACHOMETER

574 synchromesh transmission tractors and 2500 series A synchromesh transmission tractors with serial no. 100000 and below

1шт.

7

66344C1

TACHOMETER

574 synchromesh transmission tractors and 2500 series A synchromesh transmission tractors with serial no. 10001 and above

1шт.

7

529799R1

TACHOMETER, 574 hydrostatic drive tractors and 2500 series A hydrostatic drive tractors with serial no. 100000 and below

1шт.

7

66455C1

GAUGE

TACHOMETER, 574 hydrostatic drive tractors and 2500 series A hydrostatic drive tractors with serial no. 100001 and above

1шт.

8

529802R1

GAUGE

ASSY, oil pressure indicator, optional w/536973R2

1шт.

8

536973R2

SWITCH

GAUGE ASSY, oil pressure indicator, optional w/529802R1

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

9

529801R1

INDICATOR

ASSY, heat, optional w/536972R1

1шт.

9

536972R1

ELECTRICAL GAUGE

INDICATOR ASSY, heat, optional w/529801R1

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 x 2-1/8 x 3/32

1шт.

10

529795R92

CABLE

ASSY, tachometer flexible, gasoline engine tractors

1шт.

10

393326R92

CABLE ASSY.

CABLE ASSY, tachometer flexible, diesel engine tractors

1шт.

11

51510D

BUSHING

capillary tube bulb

1шт.

12

306132C1

CABLE TIE,14.5" L

STRAP, capillary tube, will work for 289862C1

1шт.

13

529805R1

PIPE, oil pressure indicator, gasoline engine tractors

1шт.

13

529806R1

PIPE

oil pressure indicator, diesel engine tractors

1шт.

14

140304

ELBOW

1/8, 27 ball sleeve external thread 90 deg.

1шт.

15

530589R1

TUBE

warning light, 1 used with 2500 series A synchromesh transmission tractors with serial no. 100001 and above, 2 used with all tractors except 2500 series A synchromesh transmission tractors with serial no. 100001 and above

1шт.

16

393326R91

CABLE

ASSY, flexible drive

1шт.

17

19717R1

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

1/8, 27 hi-duty tube fitting

1шт.

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16, 24 hi-duty tube fitting

1шт.

18

529780R91

SPEEDOMETER

hydrostatic drive tractors

1шт.

19

306132C1

CABLE TIE,14.5" L

STRAP, speedometer drive tractors, will work for 289862C1

1шт.

20

395228R1

CABLE CLIP

CLIP, speedometer flexible drive cable

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

21

393327R92

CABLE

CORE ASSY, speedometer flexible drive shaft

1шт.

22

362126R1

CLIP

tachometer drive shaft

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, tachometer drive shaft, diesel engine tractors

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

362127R1

CLIP

oil pressure tube

1шт.

25

536905R2

CORE

ASSY, tachometer flexible drive shaft, gasoline engine tractors

1шт.

25

393327R92

CABLE

CORE ASSY, tachometer flexible drive shaft, diesel engine tractors

1шт.

26

536669R1

ROD, steady rest, hydrostatic drive tractors w/hand controls

1шт.

157523

SCREW

5/16 x 3/4 C-Z cr-rec-ov-hd mach

2шт.

27

192105

HOLE PLUG BUTTON,1"

PLUG, 1 C-Z button, ether start push button hole

1шт.

28

192105

HOLE PLUG BUTTON,1"

PLUG, 1 C-Z button, forward-reverse control handle hole

1шт.

29

374342R1

PLUG

button, horn button hole

1шт.

30

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 cr-button, cigarette lighter hole

1шт.

31

362123R1

CLIP

tachometer drive shaft, diesel engine tractors

1шт.
