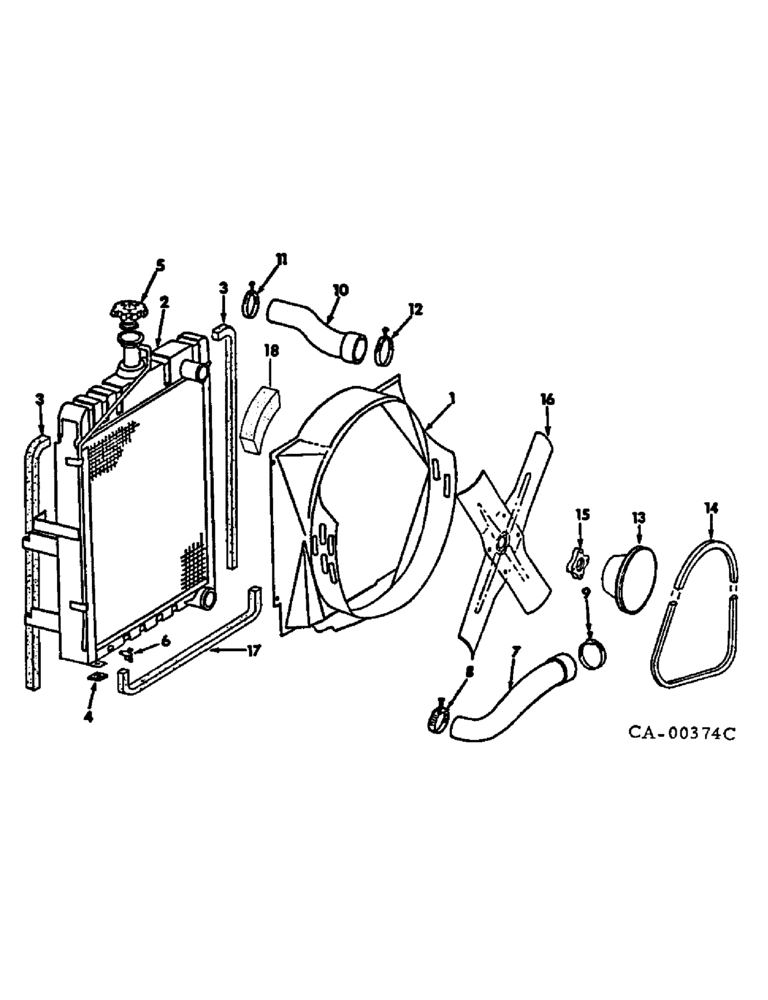

Запчасти Case IH 574 (06-05) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

402200R1

HOUSING

fan

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

4шт.

2

539567R2

RADIATOR

ASSY, replaces 402604R2, diesel engine, synchromesh transmission tractors

1шт.

2

539561R2

RADIATOR ASSY, replaces 402605R1, 528146R1 and 528147R1, diesel engine, hydrostatic drive tractors

1шт.

2

539566R2

RADIATOR ASSY, replaces 402202R1, gasoline engine, synchromesh transmission tractors

1шт.

2

539565R2

RADIATOR ASSY, replaces 402201R1, gasoline engine, hydrostatic drive tractors

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

7500032

BUSHING

NUT, 5/16-18 znd wing

1шт.

3

GASKET, radiator baffle, furnish 28 inches, from four foot length marked, 73217C1

2шт.

4

47240D

PAD

radiator

4шт.

23042R1

WASHER

17/32 x 1 x 22 ga C-Z

1шт.

5

532029R1

CAP ASSY.

CAP ASSY, radiator

1шт.

6

539787R1

COCK, DRAIN

COCK, 1/4 drain

1шт.

7

402204R1

HOSE,1.50" ID x 6.60", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Outlet (Gasoline Engine Tractors) 1.50" ID x 6.60", SAE 20R2

1шт.

7

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A OR SAE 20R4 CLASS D1, Outlet (Diesel Engine Tractors) 50.80 mm ID x 213.90 mm, SAE 100R2

1шт.

7

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

8

39149H

HOSE CLAMP

CLAMP, no. 64 hose, 2 for gasoline engine tractors, optional w/705935R91

1шт.

8

705935R91

HOSE CLAMP

CLAMP, hose, 2 for gasoline engine tractors, optional w/39149H

1шт.

9

39205H

CLAMP

no. 80 hose, diesel engine tractors, optional w/706078R91

1шт.

9

706078R91

CLAMP

hose, diesesl engine tractors, optional w/39205H

1шт.

10

402206R1

HOSE,1.50" ID, 2.00" ID x 6.65", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet (Gasoline Engine Tractors) 1.50" ID, 2.00" ID x 6.65", SAE 20R2

1шт.

10

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet (Diesel Engine Tractors) 50.80 mm ID x 179.83 mm, SAE 20R2

1шт.

10

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

11

39149H

HOSE CLAMP

CLAMP, no. 64 hose, optional w/705935R91

1шт.

11

705935R91

HOSE CLAMP

CLAMP, hose, optional w/39149H

1шт.

12

39205H

CLAMP

no. 80 hose, optional w/706078R91

1шт.

12

706078R91

CLAMP

hose, optional w/39205H

1шт.

13

527471R1

PULLEY

water pump, gasoline engine tractors

1шт.

13

401124R2

PULLEY

water pump, diesel engine tractors

1шт.

14

532031R2

V-BELT,0.38" W x 52.48" L

Fan, Gasoline engine tractors 0.38" W x 52.48" L

1шт.

14

534311R1

V-BELT,0.50" W x 61.12" L

Fan, Diesel engine tractors 0.50" W x 61.12" L

1шт.

15

401125R1

SPACER

fan, gasoline engine tractors, optional w/296645C1

1шт.

15

296645C1

SPACER

fan, gasoline engine tractors, optional w/401125R1

1шт.

16

527472R1

FAN

BLADE ASSY, fan, 574 tractors w/synchromesh transmission

1шт.

181321

BOLT,Hex, 1/4" - 28 x 1 3/4", Gr 5

SCREW, 1/4-28 x 1-3/4 hex-hd cap, gasoline engine tractors

4шт.

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

1/4-28 x 11/16 hex-hd cap, Diesel engine tractors

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

527473R1

FAN

BLADE ASSY, fan, 2500 series A tractors and 574 tractors w/hydrostatic transmission

1шт.

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

1/4-28 x 1-3/4 hex-hd cap, Diesel engine tractors

4шт.

181321

BOLT,Hex, 1/4" - 28 x 1 3/4", Gr 5

SCREW, 1/4-28 x 1-3/4 hex-hd cap, gasoline engine tractors

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

537162R1

FILLING STRIP

GASKET, lower radiator

1шт.

18

389838R1

FOAM

BAFFLE, foam air cleaner outlet hose protective, diesel engine tractors

1шт.
