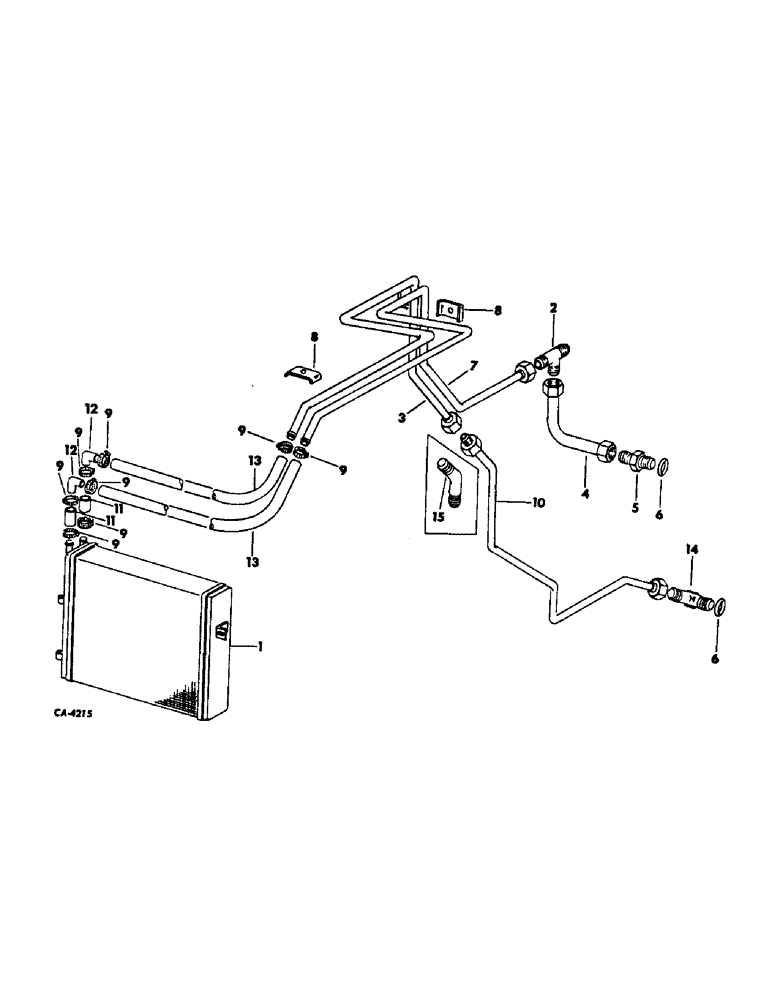

Запчасти Case IH 574 (06-04) - COOLING, OIL COOLER, HYDROSTATIC DRIVE TRACTORS Cooling

1

406409R2

COOLER

oil, International 574 tractors

1шт.

1

536349R1

COOLER

oil, International 2500 series A tractors, on order for cooler 406409R2, furnish cooler 536349R1, two hoses 65795C1, two tubes 65794C1 and four clamps 995218R1

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 std-hd

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

9403139

TEE,7/8"-14, 37º x 1/2"-14, NPTF Fem Run

1/2-14 C-Z hyd 37 deg flared

1шт.

3

534868R1

TUBE

ASSY, oil cooler outlet fwd, for service replacement furnish tube 56554C1 and tube 66103C1

1шт.

3

56554C1

TUBE

ASSY, oil cooler outlet fwd

1шт.

4

65768C1

TUBE ASSY.,0.625" OD, 3.9, 3.6" Length

TUBE ASSY, oil cooler inlet-short

1шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

7

529630R1

TUBE

ASSY, oil cooler inlet, on order for tube 529630R1 furnish tube 65770C1, tube 65768C1 and tee 9403139

1шт.

7

65770C1

TUBE ASSY.,0.625" OD, 42.27, 16" Length

TUBE ASSY, oil cooler inlet

1шт.

8

529645R1

CLAMP

oil cooler tube

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

995218R1

CLAMP

oil cooler hose

8шт.

10

529611R1

TUBE ASSY, oil cooler outlet rear, for service replacement furnish tube 586554C1 and tube 66103C1

1шт.

10

66103C1

PIPE

TUBE ASSY, oil cooler outlet rear

1шт.

11

65795C1

HOSE

oil cooler connection

2шт.

12

65794C1

TUBE, connection 0.625" OD, 2, 2" Length

2шт.

13

HOSE, oil cooler, furnish 14 inches from bulk roll marked, 73200C1

2шт.

14

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str-thd 90 deg

1шт.

15

529612R1

ELBOW, 37 deg hyd flared tube 45 deg oil cooler outlet rear tube, used on tractors with tubes 534868R1 and 529611R1

1шт.
