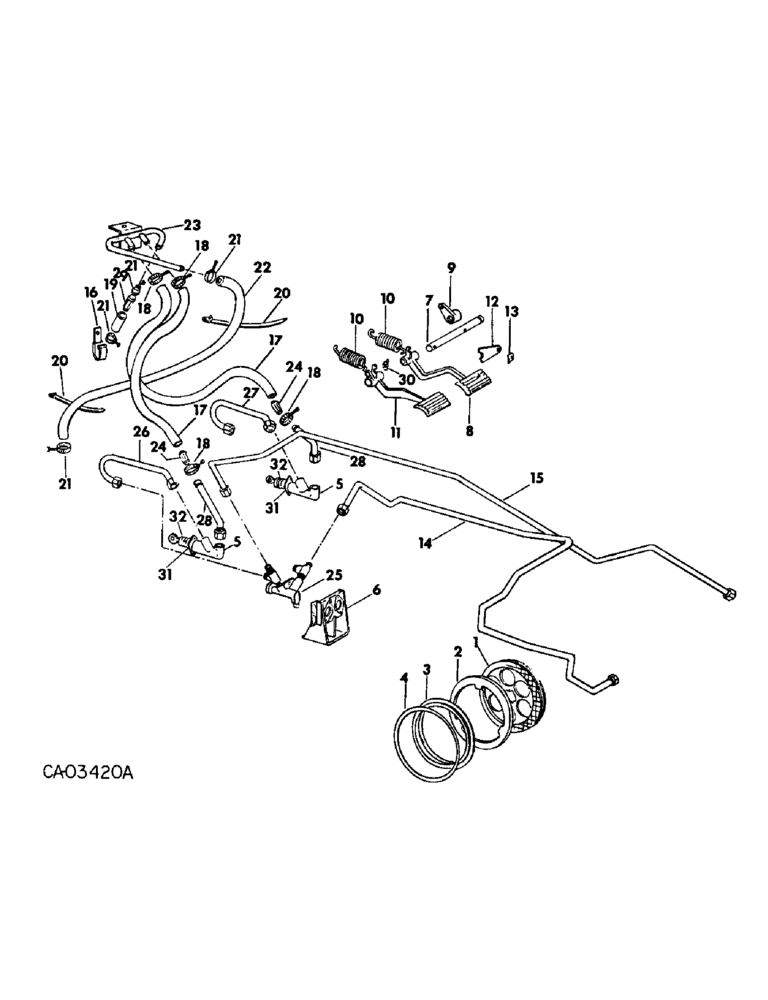

Запчасти Case IH 574 (04-03) - BRAKES, BRAKES, INTL 574 WITH S/N 7366 AND ABOVE AND INTL 2500 SERIES A WITH S/N 1795 AND ABOVE (5.1) - BRAKES

1

114619C1

BRAKE LINE

DISC, brake center, replaces 399734R1 by also furnishing piston, 114621C1

2шт.

2

399736C1

RING, brake

2шт.

3

114621C1

PISTON

brake, replaces 399737R2 by also furnishing brake center disc, 114619C1

2шт.

4

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 10-1/4 x 1/8 brake piston, also furnished in package, 539535R91

2шт.

5

527542R92

CYLINDER

ASSY, brake master

2шт.

5

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

(P/N 527542R92) - 3125824R1 seal kit for ref #5

1шт.

6

529582R1

BRACKET

ASSY, brake cyl mounting, synchromesh transmission tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

527545R1

BRACKET

ASSY, brake cyl mounting, hydrostatic drive tractors

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8 x 2-3/4 x hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

399740R1

SHAFT

pedal support, synochromesh transmission tractors and hydrostatic drive tractor w/hand controls

1шт.

8

399741R3

PEDAL

RH brake

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103026

NUT,3/8"-24, G5

1шт.

9

529858R1

ARM

RH brake pedal

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

1шт.

10

539556R1

SPRING

brake pedal return

2шт.

11

537095R11

PEDAL ASSY.

PEDAL ASSY, LH brake, consists of ref nos 12, 13 and rivet 104087

1шт.

399744R1

BOLT

BOLT, brake pedal adjusting

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103026

NUT,3/8"-24, G5

1шт.

12

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 small b-hd solid

1шт.

13

51293D

SPRING

brake pedal lock tension

1шт.

14

66093C1

BRAKE LINE

TUBE ASSY, brake LH, replaces LH front tube 536620R1 and LH rear tube 53662R1

1шт.

15

66094C1

BRAKE LINE

TUBE ASSY, brake RH, replaces LH front tube 536622R1 and LH rear 536623R1

1шт.

16

527433R1

CLIP

CLAMP, brake reservoir inlet hose

1шт.

17

66372C1

HYDRAULIC HOSE,0.31" ID x 25.00"

HOSE, brake reservoir inlet

2шт.

18

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

19

66368C2

HYDRAULIC HOSE,0.31" ID x 11.00"

HOSE, brake reservoir inlet

1шт.

20

289862C1

CABLE TIE,3/16" x 7"

STRAP

2шт.

21

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

22

66372C1

HYDRAULIC HOSE,0.31" ID x 25.00"

HOSE, brake reservoir dump

1шт.

23

66369C1

TUBE ASSY.

TUBE ASSY, brake reservoir supply

1шт.

179292

SHIELD

SCREW, 8-32 x 3/8 C-Z hex-hd tap.

1шт.

24

537849R2

SCREEN

ORIFICE AND SCREEN ASSY, brake reservoir

2шт.

25

530374R92

VALVE

ASSY, brake equalizer

1шт.

(P/N 530374C92) - 68434C3

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

26

530851R2

TUBE

ASSY, equalizer LH

1шт.

27

530852R1

TUBE

ASSY, equalizer RH

1шт.

28

66367C1

TUBE ASSY.,0.31" OD, 2.5" Length

TUBE ASSY, brake cylinder supply

2шт.

29

537518R1

SCREEN

ORIFICE AND SCREEN ASSY, brake

1шт.

30

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg angle drive type lub

1шт.

31

71925C1

HOSE

master cylinder ret

1шт.

32

71926C1

BELLOWS

INSULATOR, master cylinder dust

1шт.
