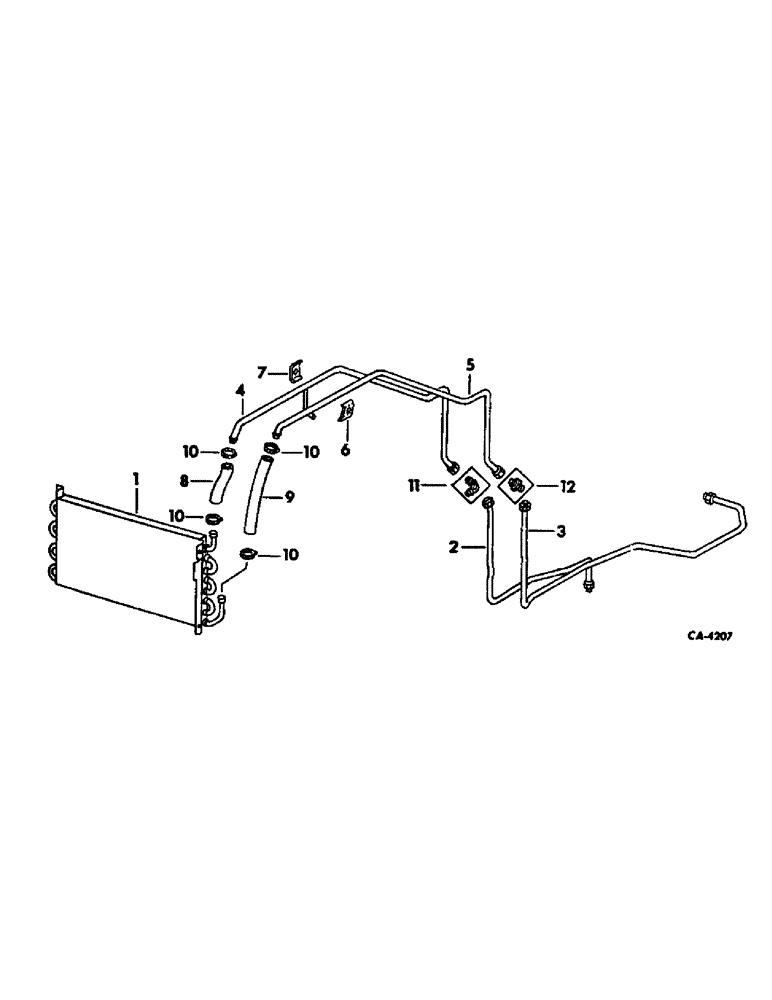

Запчасти Case IH 574 (06-01) - COOLING, OIL COOLER, INTERNATIONAL 574 TRACTORS WITH SYNCHROMESH TRANSMISSION Cooling

1

539560R1

COOLER

oil, replaces 406407R1

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 std-hd

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

529605R2

TUBE ASSY, oil cooler rear, for service replacement furnish one each tube assy 66098C1 and 66095C1

1шт.

2

66095C1

TUBE

ASSY, oil cooler rear

1шт.

3

529606R1

TUBE

ASSY, oil cooler return rear, tractors with serial no. 102814 and below

1шт.

3

66096C1

TUBE

ASSY, oil cooler return rear, tractors with serial no. 102815 and above

1шт.

4

529628R1

TUBE

ASSY, oil cooler inlet, for service replacement furnish one each tube assy 66098C1 and 66095C1

1шт.

4

66098C1

PIPE

TUBE ASSY, oil cooler inlet

1шт.

5

534867R1

TUBE ASSY, oil cooler outlet, tractors with serial no. 102814 and below

1шт.

5

66100C1

TUBE

ASSY, oil cooler outlet, tractors with serial no. 102815 and above

1шт.

6

529644R11

CLAMP

ASSY, oil cooler tube

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

381448R1

CLAMP

oil cooler tube

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

HOSE, oil cooler inlet, furnish 13.5 inches from bulk roll marked, 73199C1

1шт.

9

HOSE, oil cooler outlet, furnish 20 inches from bulk roll marked, 73199C1

1шт.

10

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Oil cooler hose #06, .44/.78 Type F Worm

4шт.

11

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION, 3/4-16 C-Z 37 deg hyd flared tube 90 deg elbow, used with tube 529605R2

1шт.

12

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 C-Z deg hyd flared, used with tube 529605R2

1шт.
