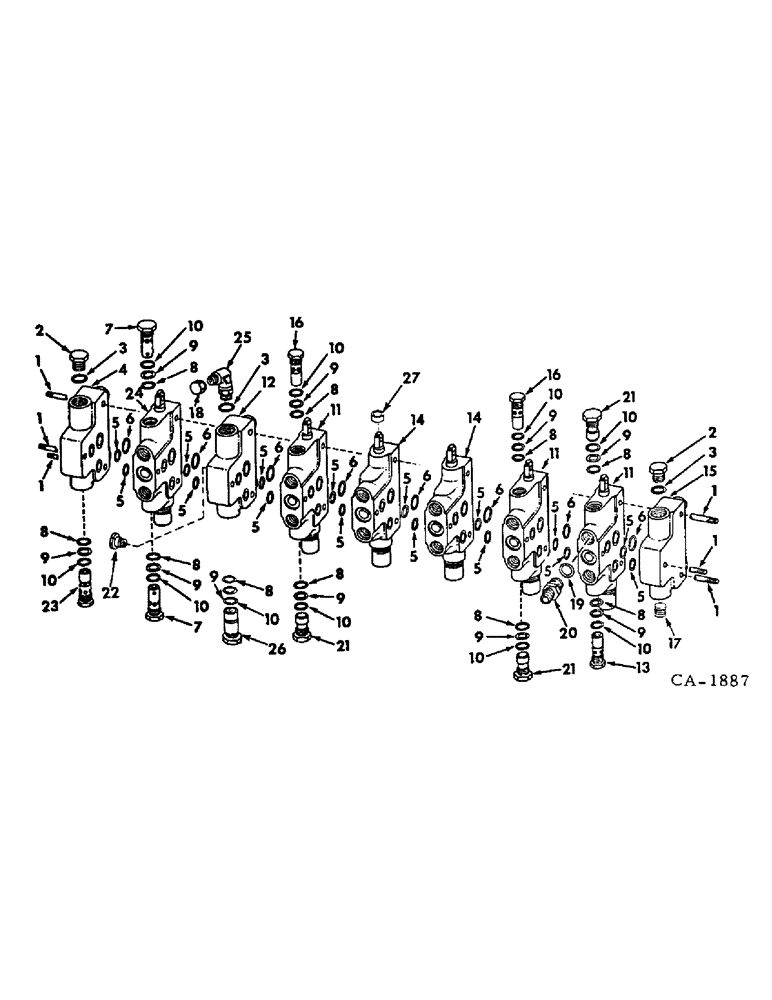

Запчасти Case IH 574 (10-47) - HYDRAULICS, BACKHOE HYDRAULIC VALVE BANK (07) - HYDRAULICS

1

392971R1

ROD, tie

3шт.

102635

NUT,3/8"-16, G5

6шт.

527476R1

WASHER, 3/8 lock

6шт.

2

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

1-3/16 C-Z str thd o-ring boss for 7/8 tube, outlet valve cover, large

2шт.

3

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-9/32 x 7/64

3шт.

4

392968R2

COVER, left side end

1шт.

4

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, valve outlet cover

16шт.

6

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, valve outlet cover

8шт.

7

387229R91

VALVE

ASSY, anti-cavitation

2шт.

8

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot operated relief valve

10шт.

9

378985R2

BACK-UP RING

pilot operated relief valve backup

10шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, pilot operated relief valve

10шт.

11

394705R96

VALVE ASSY, hyd open center control, for components see list of parts under details of three position spring centered control valve

1шт.

12

395006R2

COVER, center

1шт.

13

382479R91

LOCK VALVE

VALVE ASSY, cushion relief, 2500 P.S.I., for tractors w/3-1/2 in. lift cyl

1шт.

13

382928R91

VALVE

ASSY, cushion relief for, tractors w/4 in. lift cyl

1шт.

14

383271R96

VALVE ASSY, hyd open center control, for components see list of parts under details of three position spring centered control valve

2шт.

15

546105R1

COVER, outlet

1шт.

16

547243R91

VALVE

ASSY, cushion relief, 2750 P.S.I.

2шт.

17

444709

PLUG,Hex Soc, 3/4"-14

3/4, 14 auto hex-soc hd pip

1шт.

18

9403375

CAP,37 Degree, 1 3/16"-12

1-3/16, 12 37 deg hyd flared tube

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

20

397699R1

UNION

ASSY, orifice

1шт.

21

378899R1

PLUG

relief valve chamber

3шт.

22

383440R91

LOCK VALVE

VALVE ASSY, check

1шт.

23

388208R93

VALVE

ASSY, pilot operated relief, 2000 P.S.I., for components see list of parts under details of pilot relief under details of pilot relief valve

1шт.

24

383270R94

VALVE ASSY, hyd open center control, for components see list of parts under details of three position spring centered control valve

1шт.

25

9410980

ELBOW,90 Degree, 1 3/16"-12, 37 Degree x 1 3/16"-12, O-Ring

1-5/16, 12 C-Z 37 deg hydraulic flared tube

1шт.

26

399858R92

VALVE

ASSY, pilot relief 2500 P.S.I., replaces 543976R91, for components see list of parts under details of pilot relief valve

1шт.

27

543201R1

SEAL, valve dust

6шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

6шт.
