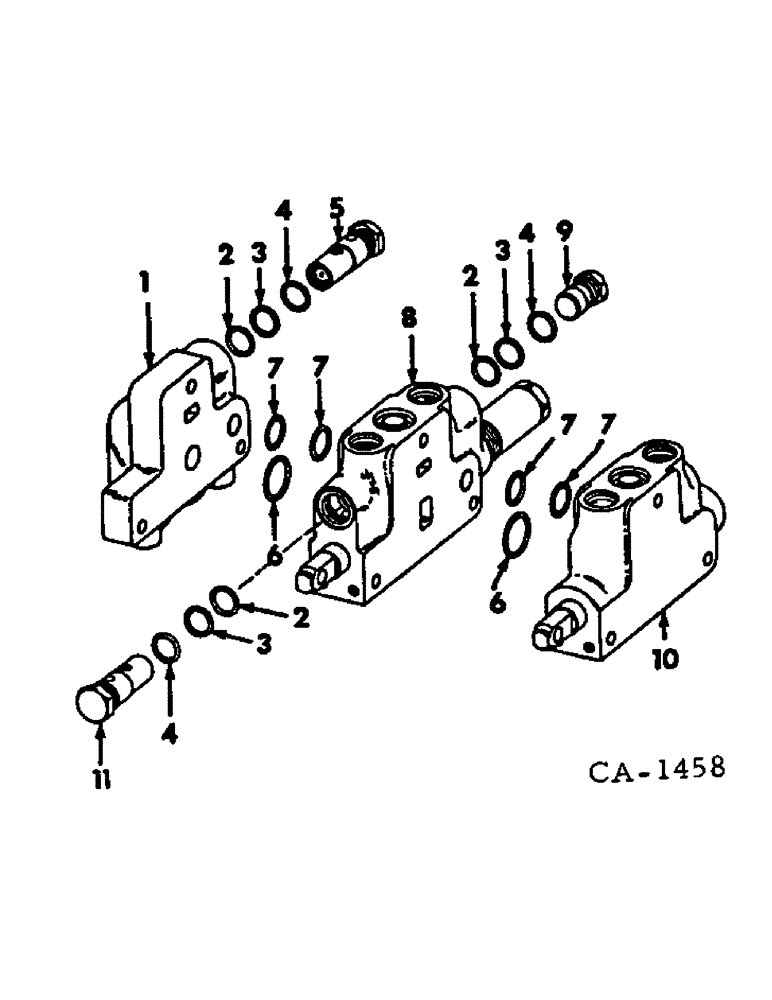

Запчасти Case IH 574 (10-32) - HYDRAULICS, LOADER HYDRAULIC VALVE BANK (07) - HYDRAULICS

1

379361R3

COVER, valve inlet

1шт.

102635

NUT,3/8"-16, G5

3шт.

381782R1

BOLT,Hex, 3/8" - 16 x 5 7/8", Gr 8

SCREW, 3/8-16 x 5-7/8 hex-hd cap type 8

2шт.

20847R1

BOLT,Hex, 3/8" - 16 x 6 1/4", Gr 8

SCREW, 3/8-16 x 6-1/4 hex-hd cap type 8

1шт.

527476R1

WASHER, valve inlet cover

6шт.

2

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 3/32

3шт.

3

378985R2

BACK-UP RING

relief valve back-up

3шт.

4

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

3шт.

5

396729R93

VALVE

ASSY, pilot relief, 2300 PSI, high capacity, for components see list of parts under details of pilot relief valve

1шт.

6

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32

2шт.

7

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

4шт.

8

383269R96

VALVE

ASSY, open center control, for components see list of parts under details of fourt position spring centered control valve

1шт.

9

378899R1

PLUG

reflief valve chamber

1шт.

10

57290C92

VALVE

ASSY, open center control, for components see list of parts under details of three position spring centered control valve

1шт.

11

382479R91

LOCK VALVE

VALVE ASSY, cushion relief, 2500 PSI

1шт.
