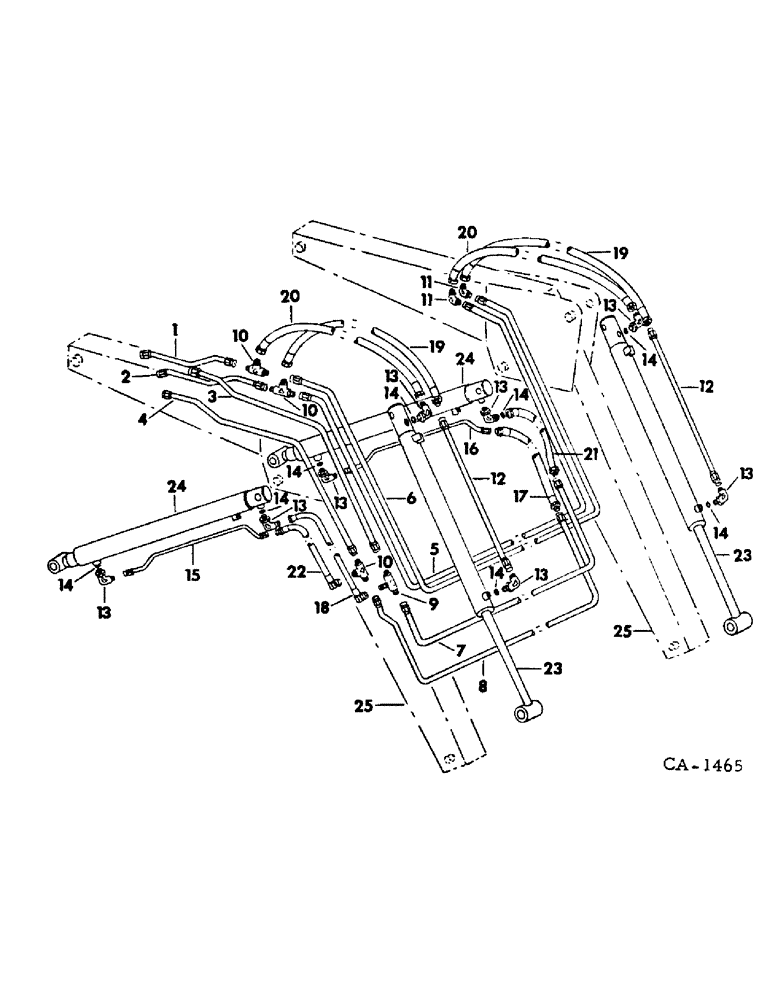

Запчасти Case IH 574 (10-29) - HYDRAULICS, LOADER CYLINDER, TUBES AND CONNECTIONS, TRACTORS BUILT PRIOR TO 1972 (07) - HYDRAULICS

1

544474R1

TUBE ASSY, bucket hyd

1шт.

2

544475R1

TUBE ASSY, bucket hyd

1шт.

3

544476R1

TUBE ASSY, boom hyd

1шт.

4

544477R1

TUBE ASSY, boom hyd

1шт.

5

544548R1

TUBE ASSY, bucket hyd

1шт.

6

544549R1

TUBE ASSY, bucket hyd

1шт.

7

544550R2

TUBE ASSY, boom hyd

1шт.

8

544551R1

TUBE ASSY, boom hyd

1шт.

9

470782R1

TEE

7/8-14 37 deg hyd flared tube three way

1шт.

10

9402983

TEE,7/8"-14, 37 Degree

7/8-14 37 deg hyd flared tube three way

3шт.

11

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8-14 37 deg hyd flared tube 90 deg union

2шт.

12

544482R1

TUBE ASSY, return bucket cyl

2шт.

13

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 deg hyd flared tube 90 deg adj.

8шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32

8шт.

15

544484R1

TUBE, lift cyl return RH

1шт.

16

544483R1

TUBE, lift cyl return LH

1шт.

17

544485R1

HOSE ASSY, cylinder rod

1шт.

18

544486R1

HOSE ASSY, cylinder head

1шт.

19

544487R1

HOSE ASSY, cylinder rod

2шт.

20

544488R1

HOSE ASSY, cylinder head

2шт.

21

544490R1

HOSE ASSY, cylinder head

1шт.

22

544489R1

HOSE ASSY.

HOSE ASSY, cylinder rod

1шт.

23

544719R92

CYLINDER

ASSY, 2-1/2 x 23/50 stroke bucket, for components see list of parts under details of hydraulic cylinder

2шт.

24

544718R91

CYLINDER ASSY, 2-1/2 x 28.70 stroke lift, for components see list of parts under details of hydraulic cylinder

2шт.

25

BOOM, refer to loader boom listing

1шт.
