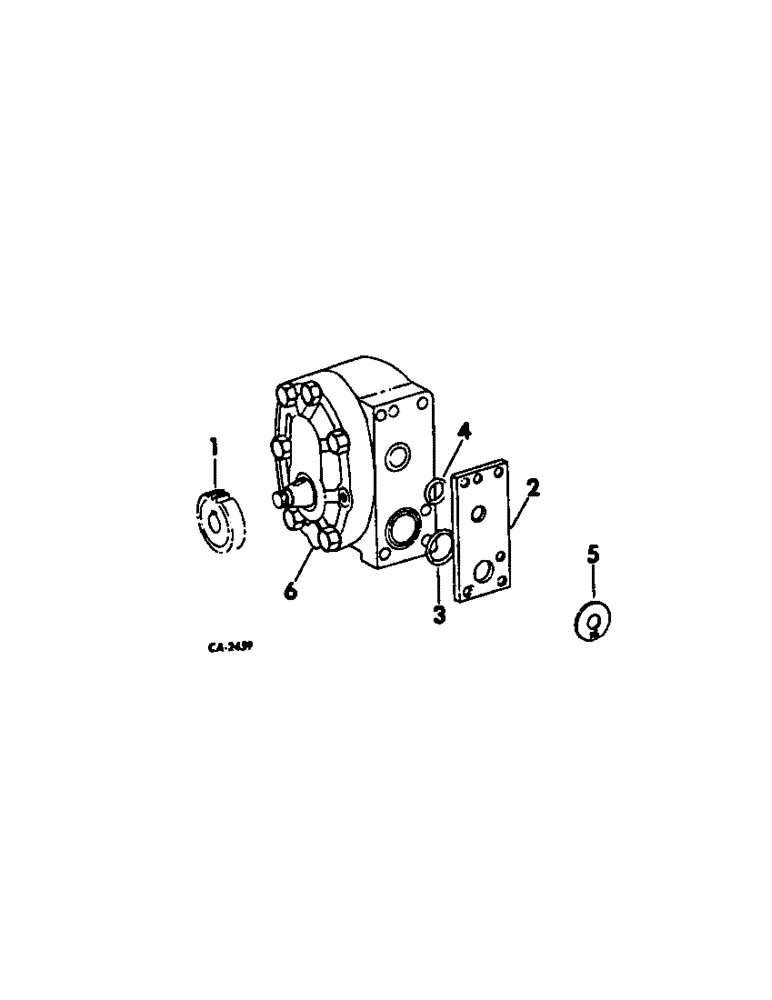

Запчасти Case IH 574 (10-28) - HYDRAULICS, PUMP MOUNTING, TRACTORS WITH LOADER, MOWER, OR LOADER AND MOWER (07) - HYDRAULICS

1

544908R1

GEAR

hyd pump driven

1шт.

2

544909R2

LARGE PLATE

PLATE, pump mounting

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

2шт.

3

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 x 3/32

1шт.

4

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 x 3/32

1шт.

5

537517R1

WASHER

pump identification, located on mulitple control valve

1шт.

6

406827R91

PUMP

ASSY, hyd gear, for components, see list of part under details of hyd gear pump

1шт.

406827R91 - Seal kit not available, must order whole pump

1шт.

6

84573150R

REMAN-HYD PUMP

574 (1/71-12/77), 2500, Both INTERNATIONAL SERIES-A TRACTOR (NORTH AMERICA), ASSY, hyd gear, Reman for New PN 406827R91

1шт.

6

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.
