Запчасти Case IH 574 (02-01) - MISCELLANEOUS, SLOW MOVING VEHICLE EMBLEM Accessories & Attachments / Miscellaneous

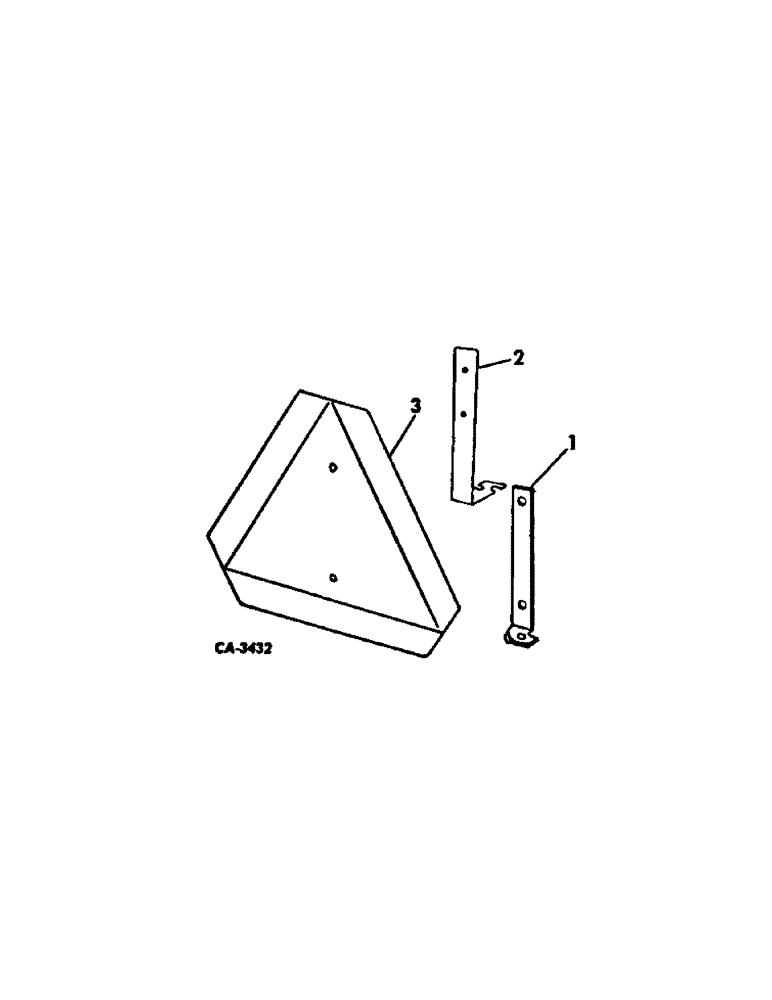

Схема запчастей Case IH 574 - (02-01) - MISCELLANEOUS, SLOW MOVING VEHICLE EMBLEM Accessories & Attachments / Miscellaneous
1
2
3

Артикул

Название

Примечание

Количество

1

114623C1

BRACKET

slow moving vehicle emblem, replaces 66595C1, with draft control

1шт.

187-1091

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, 10-16 x 3/8 cr-rec-pan-hd tap.

2шт.

2

114629C1

BRACKET, slow moving vehicle emblem, replaces 67683C1, without draft control

1шт.

187-1091

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, 10-16 x 3/8 cr-rec-pan-hd tap.

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

407220R1

PRODUCT GRAPHIC

PACKAGE, slow moving vehicle emblem

1шт.

Выбрано товаров: 7
