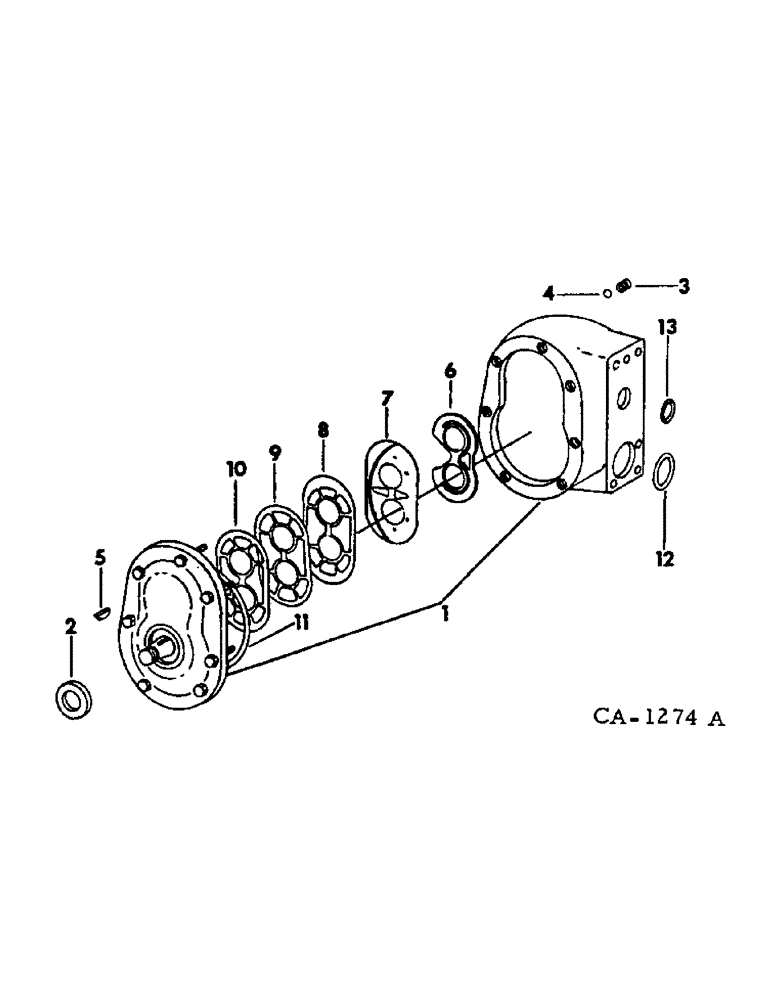

Запчасти Case IH 574 (10-23) - HYDRAULICS, HYDRAULIC GEAR PUMP, CESSNA (07) - HYDRAULICS

1

PUMP ASSY, hydraulic gear, orders for pump assy, 406827R91 or 67248C91 furnish, 128180C91

1шт.

1

128180C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, replaces 67248C91, optional with pump 66513C91

1шт.

1

84573150R

REMAN-HYD PUMP

574 (1/71-12/77), 2500, Both INTERNATIONAL SERIES-A TRACTOR (NORTH AMERICA), PUMP ASSY, hydraulic gear, Reman for New PN 128180C91

1шт.

1

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

373244R91

SEAL

SEAL, pump shaft oil

1шт.

3

371523R1

SPRING

ball check, replaces 383663R1

1шт.

4

16007R1

BALL

7/32 dia. cr-stl

1шт.

5

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Drive gear #6, 5/32" x 5/8", HT

1шт.

6

PLATE, thrust, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

7

DIAPHRAGM, pressure, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

8

SEAL, diaphragm, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

9

GASKET, back-up, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

10

GASKET, protector, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

11

O-RING, pump cover, not serviced separately, furnish o-ring and gasket service package 67249C93

1шт.

12

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

suction port

1шт.

13

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

pressure port

1шт.

67249C93

PACKAGE,SERVICE

PACKAGE, hyd pump o-ring and gasket service, replaces 534261R91, used w/pump, 67248C91, consists of (1) plate (NSS), (1) diaphragm (NSS), (1) seal (NSS), (1) gasket (NSS), (1) gasket (NSS), (1) o-ring (NSS)

1шт.

73234C91

PACKAGE,SERVICE

PACKAGE, o-ring and gasket service, used w/pump, 128180C91

1шт.
