(10-22) - HYDRAULICS, HYDRAULIC GEAR PUMP, TRACTORS WITH FORWARD AND REVERSE

Запчасти Case IH 574 (10-22) - HYDRAULICS, HYDRAULIC GEAR PUMP, TRACTORS WITH FORWARD AND REVERSE (07) - HYDRAULICS

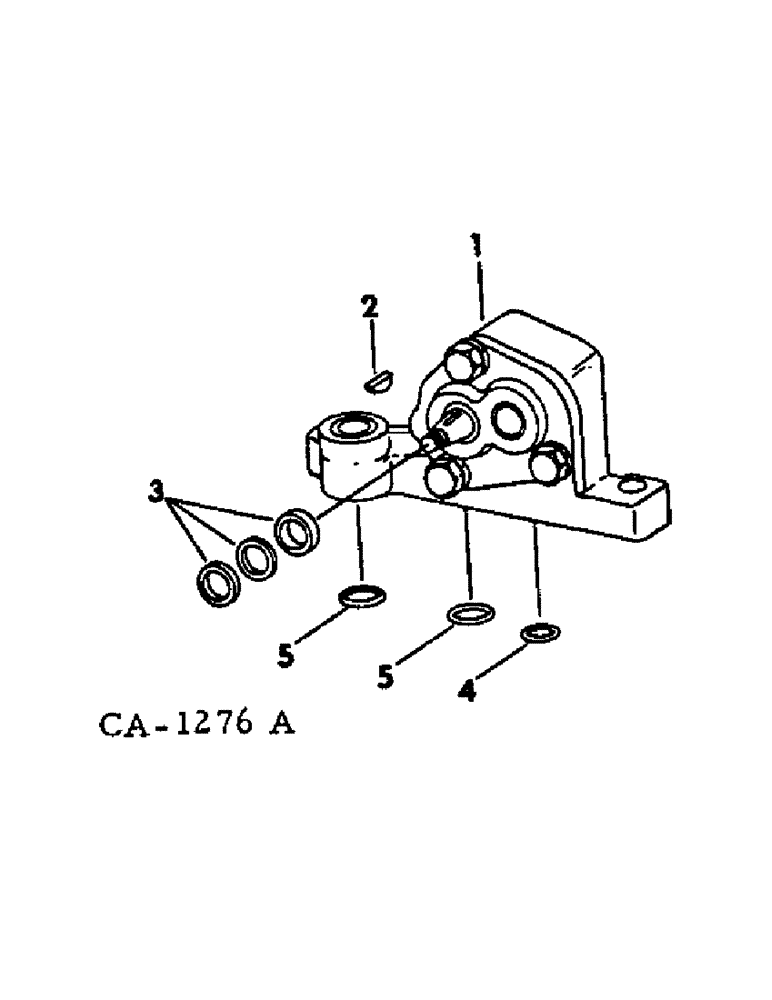

Схема запчастей Case IH 574 - (10-22) - HYDRAULICS, HYDRAULIC GEAR PUMP, TRACTORS WITH FORWARD AND REVERSE (07) - HYDRAULICS
4
3
5
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

527757R91

PUMP

ASSY, hydraulic gear, tractors w/forward-reverse

1шт.

2

427261

KEY

pump shaft

1шт.

3

534263R91

SEALING RING

SEAL PACK KIT

1шт.

4

574069R1

O-RING,0.750" ID x .062"

suction pot

1шт.

5

379181R1

O-RING,0.614" ID x 0.07" Width

pressure port

2шт.
