Запчасти Case IH 574 (10-15) - HYDRAULICS, POWER SUPPLY, TRACTOR WITH SIDE MOUNTED PUMP OR WITH BACKHOE (07) - HYDRAULICS

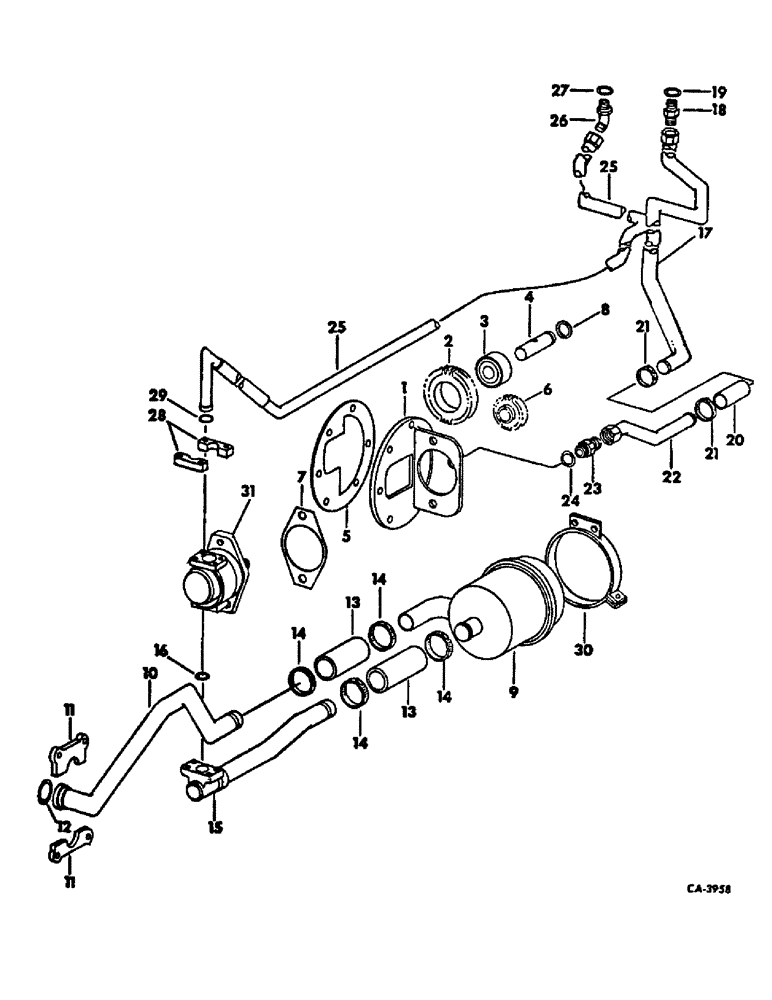

Схема запчастей Case IH 574 - (10-15) - HYDRAULICS, POWER SUPPLY, TRACTOR WITH SIDE MOUNTED PUMP OR WITH BACKHOE (07) - HYDRAULICS
31
15
5
22
24
30
4
20
9
19
8
27
25
17
26
12
21
10
3
6
14
14
14
25
11
13
14
1
28
23
29
7
11
2
18
13
21
16

Артикул

Название

Примечание

Количество

1

528644R1

HOUSING ASSY.

HOUSING ASY, hyd pump mounting

1шт.

102637

NUT,1/2"-13, G5

2шт.

NLS

NO LONGER SERVICED

7шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

528646R11

GEAR

W/BEARING, hyd pump idler

1шт.

3

528647R91

BALL BEARING

hyd pump idler gear

1шт.

4

528648R1

SHAFT

hyd pump idler gear support

1шт.

38-31632

PIN,1/4" x 2", Coiled

Pin, Grooved, 1/4" x 2", Type A

1шт.

5

528650R1

GASKET

pump mounting medium

1шт.

6

528652R1

GEAR

side pump drive

1шт.

21121R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 nylon insert

1шт.

7

538898R1

GASKET

hydraulic pump

1шт.

8

515440R1

SNAP RING,#98, Ext

Ring, Snap, , gear #98, Ext

2шт.

9

547257R93

FILTER ASSY, for components see list of part under details of filter assy

1шт.

10

544499R2

TUBE ASSY, Serial Range: tractors-filter

1шт.

11

301844R1

FLANGE

split

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

343921R1

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1-7/8 x 2-1/8 x 1/8

1шт.

13

480901R1

HOSE

filter suction rear

2шт.

14

995220R1

CLAMP

hose size 28

4шт.

15

544491R2

HYD TUBE

TUBE ASSY, Serial Range: filter-pump

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 znd hex-hd cap

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

16

343909R1

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1-1/2 x 1-3/4 x 1/8

1шт.

17

544493R3

TUBE ASSY, return

1шт.

18

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

UNION, 1-5/16-12 C-Z 37 deg hyd flared tube short swivel

1шт.

19

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD tube

1шт.

20

HOSE, return line, furnish 4 in. of 1 in. ID hose from A 50 ft roll marked 490960R1

1шт.

21

995219R1

CLIP

CLAMP, hose size 24

2шт.

22

544495R1

TUBE ASSY, return

1шт.

23

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16, 12 deg hyd flared tube, tractors w/o backhoe

1шт.

24

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube, tractors w/o backhoe

1шт.

25

544552R2

HYD TUBE

TUBE ASSY, pressure line, tractors w/o backhoe

1шт.

26

9411108

ELBOW,45 Degree, 1 3/16"-12 x 1 3/16"-12, 37 Degree

1-3/16, 12 37 deg hyd flared tube adj 45 deg, tractors w/o backhoe

1шт.

27

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, tractors w/o backhoe

1шт.

28

295698R1

CLAMP

FLANGE, half 4 bolt spilt, tractors w/o backhoe

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

29

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8, tractors w/o backhoe

1шт.

30

544500R2

CLAMP ASSY, filter

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

22523R1

BOLT (SPREADER),3/8" x 1", Gr 5

SCREW, 3/8-16 x 1 znd hex-hd cap

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

31

544707R93

HYDRAULIC PUMP

PUMP ASSY, 18 GPM side mounted hyd, tractors w/o backhoe, Thompson, for components see list of part under details of side mounted hydraulic pump, optional w/544708R92

1шт.

31

544708R92

PUMP

ASSY, 18 GPM side mounting hyd, tractors w/o backhoe, Cessna, for components see list of parts under details of side mounted hydraulic pump, optional w/544707R93

1шт.

31

546686R93

HYDRAULIC PUMP

PUMP ASSY, 13.5 GPM, Thompson, tractors with backhoe, for components see list of parts under details of side mounted hydraulic pump, optional w/547301R92

1шт.

31

547301R92

PUMP

ASSY, 13.5 GPM, Cessna, tractors with backhoe, for components see list of parts under details of side mounted hydraulic pump, optional w/546686R93

1шт.

528643R93

PISTON ASSY.

PARTS ACCESSORY, side mounted hydraulic pump drive, consists of ref nos 1 through 8 and attaching hardware

1шт.

Выбрано товаров: 51
