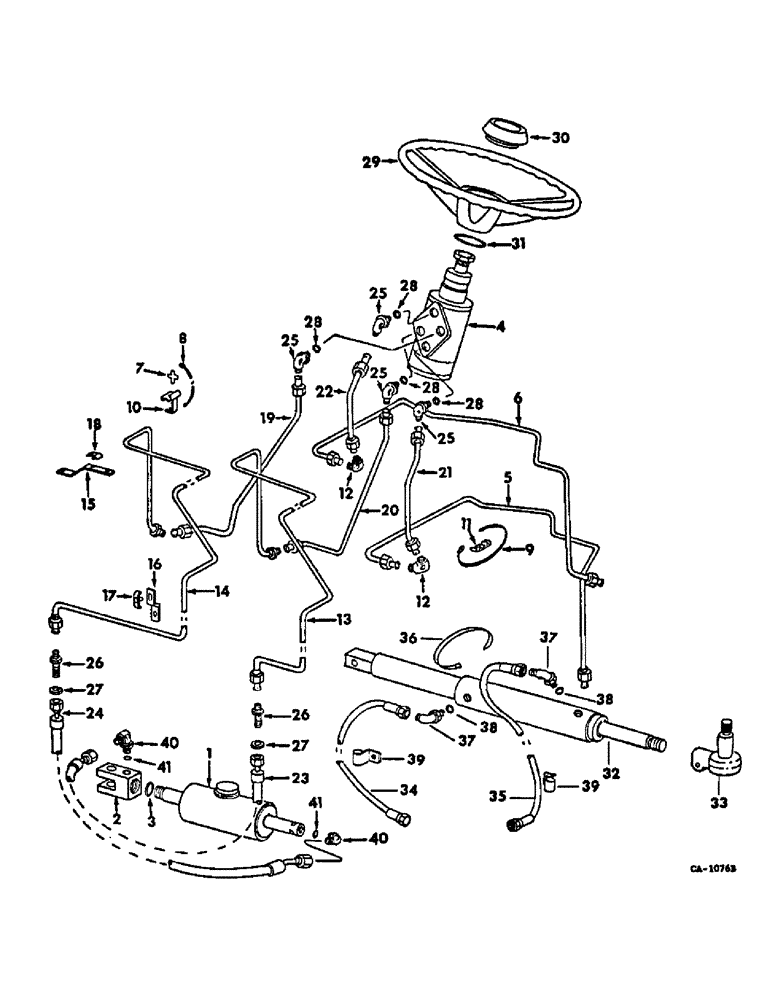

Запчасти Case IH 574 (10-08) - HYDRAULICS, POWER STEERING (07) - HYDRAULICS

1

549667R91

STEERING CYLINDER

CYLINDER ASSY, hyd power steering, had rod with thread size 3/4-16 and uses clevis 549670R2

1шт.

On order for cylinder 400566R91, furnish cylinder 549667R91, clevis 549670R1 and o-ring 570828R1, all tractors except International 2500 series A w/cast I beam front axle. For componenets, see list of parts under details of hydraulic cylinder.

1шт.

2

406762R1

CLEVIS

cyl end, used w/power steering cylinder 400566R91, has rod with thread size 7/8-14"

1шт.

67488C2

PIN

power steering cylinder

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

2

549670R2

CLEVIS,3/4" - 16

cyl end, used w/power steering cylinder 549667R91

1шт.

67488C2

PIN

PIN, power steering cylinder

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, used w/power steering cylinder 400566R91

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, used w/power steering cylinder 549667R91

1шт.

4

70110C93

PUMP

STEERING ASSY, hydrostatic integral, will work for 534852R92, for components, see list of parts under details of hydrostatic intergral steering assy

1шт.

5

529615R1

TUBE

ASSY, power steering return rear

1шт.

6

529616R1

TUBE

ASSY, power steering pressure rear

1шт.

7

529637R2

GUIDE

manifold tube

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP, rear manifold tubes

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP, rear manifold tubes

1шт.

10

529638R1

BRACKET

rear manifold, synchromesh transmission tractors

1шт.

10

529639R1

BRACKET

rear manifold, hydrostatic drive tractors

1шт.

11

GUIDE, manifold tube, use 2.5 in. of hose from bulk roll, 530107R1

2шт.

12

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 C-Z 37 deg hyd flared tube 90 deg elbow

2шт.

13

529631R1

TUBE

ASSY, power steering LH forward, on order for tube 529631R1 furnish tube 66107C1 and tube 66111C1

1шт.

14

529632R1

TUBE

ASSY, power steering RH forward, on order for tube 529632R1 furnish tube 66109C1 and tube 66110C1

1шт.

15

529646R1

BRACKET

front manifold support, replaces 529641R1

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

16

529642R1

BRACKET

front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

529643R11

CLAMP

ASSY, power steering tube

1шт.

18

384891R11

CLAMP

ASSY, power steering tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

529622R1

TUBE

ASSY, power steering RH rear, on order for tube 529622R1 furnish tube 66109C1 and tube 66110C1

1шт.

20

529623R1

TUBE ASSY, power steering LH rear, on order for tube 529623R1 furnish tube 66107C1 and tube 66111C1

1шт.

21

529635R1

TUBE

ASSY, power steering return fwd

1шт.

22

529636R1

TUBE

ASSY, power steering pressure fwd

1шт.

23

530131R1

HOSE

ASSY, power steering steering cyl LH, all tractors except International 2500 series A w/cast I beam front axle

1шт.

24

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

HOSE ASSY, power steering cyl RH, all tractors except International 2500 series A w/cast I beam front axle

1шт.

25

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg

4шт.

26

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 9/16-18 C-Z 37 deg hyd flared tube bulkhead

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

27

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 C-Z bulkhead union lock

2шт.

28

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

29

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

29

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

30

68837C1

CAP

steering wheel, will work for 378395R1

1шт.

31

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

32

378580R91

STEERING CYLINDER

CYLINDER ASSY, power steering, International 2500 series A tractors w/cast I beam front axle, for components, see list of parts under details of hydraulic cylinder

1шт.

518505R1

HEADED PIN,3/4" x 3"

PIN, 3/4 x 3 std-hd

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

33

378817R91

BALL JOINT

END ASSY, power steering cylinder, International 2500 series A tractors w/cast I beam front axle

1шт.

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, 3/8-24 x 1-2/4 znd hex-hd cap

1шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

7/8-14 znd slt-hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

34

537283R1

HOSE

power steering RH, International 2500 series A tractors w/cast I beam front axle

1шт.

35

537284R1

HOSE

power steering LH, International 2500 series A tractors w/cast I beam front axle

1шт.

36

306132C1

CABLE TIE,14.5" L

STRAP, LH hyd hose, International 2500 series A tractors w/cast I beam front axle

1шт.

37

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg, International 2500 series A tractors w/cast I beam front axle

2шт.

38

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, International 2500 series A tractors w/cast I beam front axle

2шт.

39

332791R1

CLAMP, International 2500 series a tractors w/cast I beam front axle

2шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

40

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg, all tractors except International 2500 series A w/cast I beam front axle

2шт.

41

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, all tractors except International 2500 series A w/cast I beam front axle

2шт.
