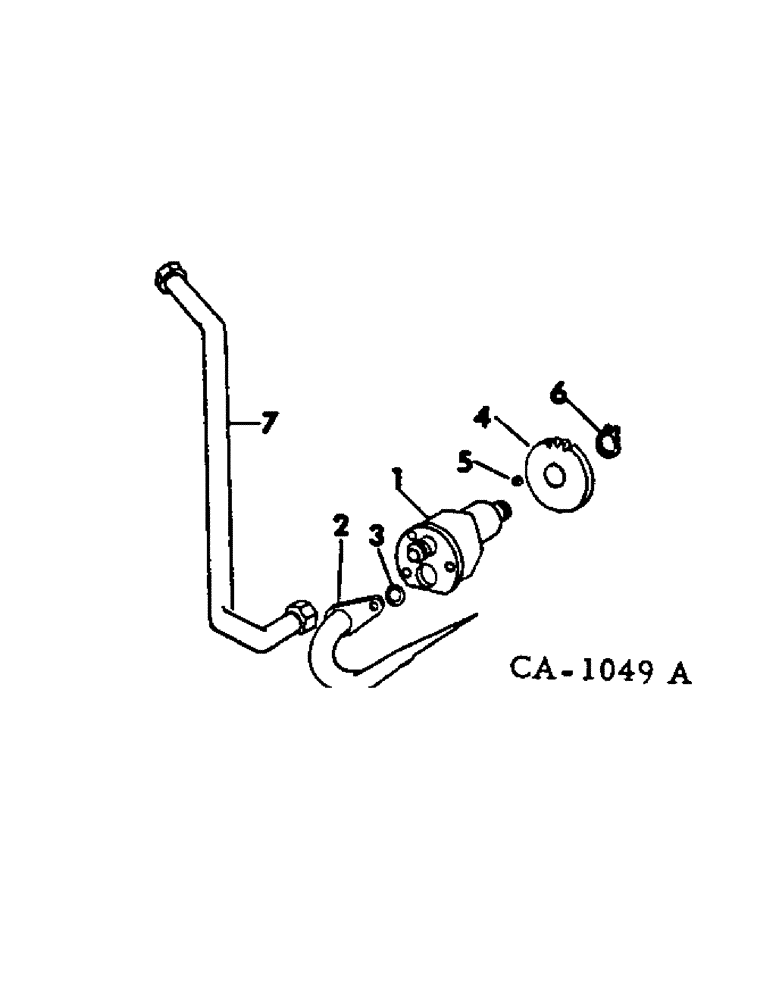

Запчасти Case IH 574 (10-07[1]) - HYDRAULICS, HYDRAULIC TRANSFER PUMP, SYNCHROMESH TRANSMISSION TRACTORS (07) - HYDRAULICS

1

528504R91

PUMP

ASSY, tansfer, hydraulic, synchromesh transmission tractors

1шт.

139371

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 hex-soc-hd cone PT set, hydraulic transfer pump, synchromesh transmission tractors

2шт.

2

529099R1

SUCTION PIPE

TUBE, transfer pump suction, hydraulic, synchromesh transmission tractors

1шт.

3

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 x 1/16, hydraulic transfer pump, synchromesh transmission tractors

1шт.

4

528095R1

PINION

GEAR, transfer pump driven, 21 T, hydraulic, synchromesh transmission tractors

1шт.

5

529100R1

BUCKET TOOTH KEY

KEY, transfer pump, hydraulic, synchromesh transmission tractors

1шт.

6

3042123R1

RING, SNAP

RING, driven gear retaining snap, hydraulic transfer pump, synchromesh transmission tractors

1шт.

7

527423R1

PRESSURE PIPE

PIPE ASSY, transfer pump outlet, hydraulic, synchromesh transmission tractors

1шт.
