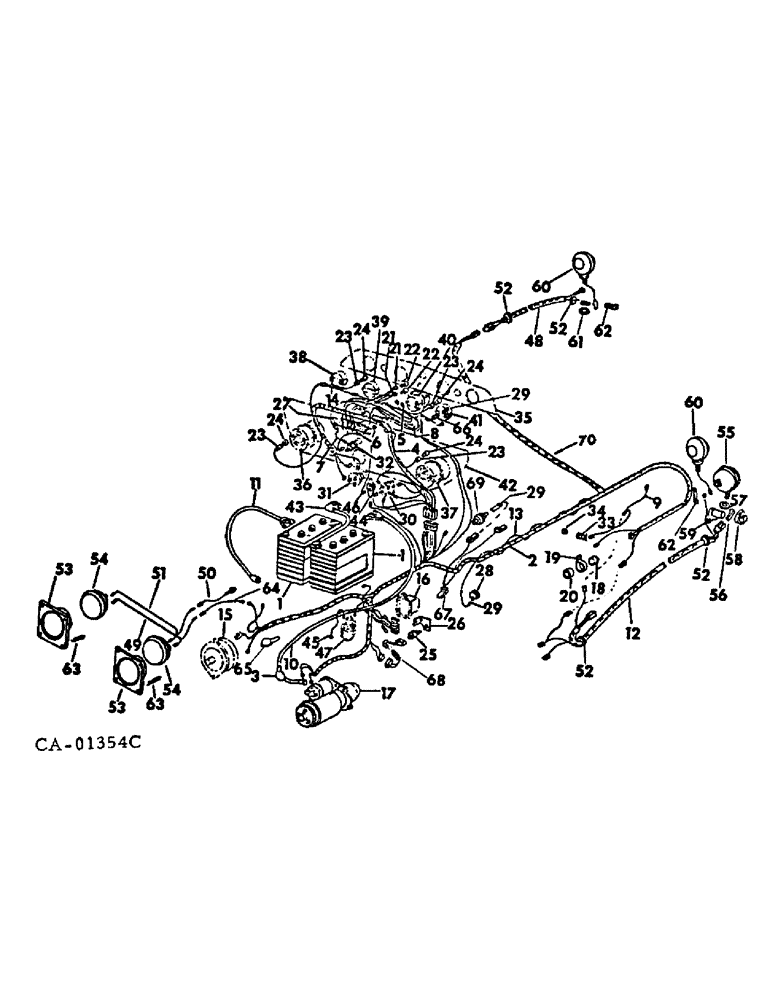

Запчасти Case IH 574 (08-29) - ELECTRICAL, STARTING AND LIGHTING (06) - ELECTRICAL

1

538977R1

BATTERY, Prestolite 1253X, 6 volt, 574 synchromesh transmission tractors with serial no. 4057 and below and 2500 series A synchromesh transmission tractors

2шт.

1

65247C1

BATTERY, Prestolite 3016X, 12 volt, 574 synchromesh transmission tractors with serial no. 4058 and above

1шт.

1

538982R1

BATTERY, Prestolite transmission tractors with heavy duty batteries

2шт.

1

537532R1

BATTERY, Prestolite 1266X, 6 volt, replaces 400123R1, hydrostatic drive tractors and hydrostatic drive tractors with heavy duty batteries

2шт.

2

529658R3

HARNESS

ASSY, main cable

1шт.

3

364910R1

BOOT

INSULATOR, terminal cover boot

1шт.

4

529659R2

HARNESS

ASSY, panel cable, consists of ref no. 66

1шт.

5

529660R1

CABLE

ASSY, junction block to charge indicator negative terminal

1шт.

6

529661R1

CABLE

ASSY, junction block to charge indicator positive terminal

1шт.

7

404530R1

CABLE

ASSY, junction, Serial Range: block-fuse

1шт.

8

404391R1

CABLE

ASSY, junction, Serial Range: block-fuel

1шт.

9

405229R1

CABLE

ASSY, parking brake ground

1шт.

10

529662R1

CABLE

W/BOOT, battery to solenoid switch

1шт.

11

529663R1

CABLE

ASSY, Serial Range: battery-ground

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

1шт.

12

529668R2

HARNESS

CABLE ASSY, LH fender

1шт.

13

404531R1

CABLE

oil pressure switch junction, synchromesh transmission tractors

1шт.

14

534821R1

CABLE ASSY, instrument light junction, hydrostatic drive tractors

1шт.

15

ALTERNATOR-GENERATOR, for components, see list of parts under details of alternator generator

1шт.

16

VOLTAGE REGULATOR, refer to alternator-generator listing

1шт.

17

1113203

MOTOR

cranking, Delco Remy, 403298R91, for complete assy, furnish 1107867, synchromesh transmission tractors, for components see list of parts under details of cranking motor

1шт.

17

1107867

ELECTRIC MOTOR

MOTOR, cranking, Delco Remy, 403300R92, synchromesh transmission tractors, for components, see list of parts under details of cranking motor

1шт.

17

1113690

STARTING MOTOR

MOTOR, cranking, Delco Remy, 528012R91, hydrostatic drive tractors, for components, see list of parts under detail of cranking motor

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120381

WASHER

3/8 C-Z light lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

17

104209A1R

REMAN-STARTER

Remanufactured Starter

1шт.

17

104209A1C

CORE-STARTER

Return Number

1шт.

18

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

19

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

20

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

21

537804R1

SOCKET

ASSY, instrument light, 3 used w/synchromesh transmission tractors, 4 used w/hydrostatic drive tractors

1шт.

22

9417863

BULB,C2F, #1895, 14V

LIGHT, no. 1895, 12 volt

2шт.

23

537803R1

SOCKET

ASSY, instrument light, 3 used w/synchromesh transmission tractors, 4 used w/hydrostatic drive tractors

1шт.

24

9417863

BULB,C2F, #1895, 14V

LIGHT, no. 1895, 12 volt, 3 used w/synchromesh transmission tractors, 4 used w/hydrostatic drive tractors

1шт.

25

121629C1

IGNITION SWITCH

SWITCH ASSY, neutral starting, replaces 382728R91

1шт.

26

533859R1

BRACKET

neutral starting switch

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

27

378336R91

BLOCK

ASSY, junction

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

28

529796R1

IGNITION SWITCH

SWITCH ASSY, transmission oil pressure, 574 synchromesh transmission tractors and 2500 series A tractors without draft control or forward and reverse

1шт.

28

376855R92

SWITCH

transmission oil pressure, 574 hydrostatic drive tractors, 2500 series A hydrostatic drive tractors and 2500 series A synchromesh transmission tractors with draft control

1шт.

28

392249R92

SWITCH

transmission oil pressure 2500 series a synchromesh transmission tractors with forward and reverse

1шт.

29

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch

3шт.

30

SWITCH ASSY, lighting, refer to engine controls and switches listing

1шт.

31

SWITCH ASSY, ignition key, refer to engine controls and switches listing

1шт.

32

HOUSING ASSY, fuse, refer to engine controls and switches listing

1шт.

33

404352R1

SWITCH

ASSY, park brake warning light, replaces 529461R91

1шт.

34

534351R1

COVER

warning light switch

1шт.

35

PANEL, instrument face, refer to instrument panel and gauges listing, group 11

1шт.

36

SPEEDOMETER, refer to instrument panel and gauges listing, group 11

1шт.

37

TACHMOMETER, refer to instrument panel and gauges listing, group 11

1шт.

38

INDICATOR ASSY, heat, refer to instrument panel and gauges listing, group 11

1шт.

39

GAUGE ASSY, oil pressure indicator, refer to instrument panel and gauges listing, group 11

1шт.

40

GAUGE ASSY, charge indicator, refer to instrument panel and gauges listing, group 11

1шт.

41

GAUGE ASSY, fuel, refer to instrument panel and gauges listing, group 11

1шт.

42

PANEL ASSY, instrument, refer to instrument panel and gauges listing, group 11

1шт.

43

370394R91

CABLE

ASSY, battery to battery, tractors with hydrostatic drive or heavy duty batteries

1шт.

44

395074R93

SWITCH

ES ASSY, ether push button

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, 10-24 x 3/8 C-Z slt-pan-hd mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

45

405227R1

CABLE

ether, Serial Range: solenoid-ground

1шт.

46

404414R1

CABLE PULLING GRIP

CABLE, junction block to ether switch

1шт.

47

SOLENOID ASSY, ether injection, refer to ether starting listing, group 12

1шт.

48

529669R2

HARNESS

CABLE ASSY, RH fender and fuel gauge sending unit

1шт.

49

404420R1

CABLY ASSY, headlight junction, will work for 529670R1, for service replacement also furnish one cable 405228R1

1шт.

50

404421R1

CABLE

ASSY, headlight ground

1шт.

51

404422R1

CABLE

ASSY, ground and headlight junction

1шт.

52

NLS

NO LONGER SERVICED

fender cables

4шт.

53

537013R1

HOUSING

headlight, replaces 528532R1

2шт.

529671R2

SCREW

10-24 x 2-1/4 C-Z ov-hd cr-rec mach

8шт.

66327C1

WASHER

grille screw retainer

4шт.

537014R1

INSERT

headlight housing

8шт.

54

373662R91

LAMP

HEADLIGHT, sealed beam

2шт.

55

387729R92

LIGHT ASSY.

LIGHT ASSY, sealed beam combination, only serviecable items are bulb, 455490, lamp, 371461R91 and retainer, 676078R1, replaces 377102R91

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

56

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear and tail light

1шт.

57

365503R1

SPACER

combination rear and tail light

1шт.

58

350920R1

CLAMP

combination rear and tail light

1шт.

59

529672R1

BRACKET

ASSY, combination rear lamp

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

60

394129R91

LIGHT

ASSY, flashing warning, for complete light assy, furnish 67538C91, only servicable items ar lens, amber 899280R1 or 405532R1, red 899179R1 and lamp 9417866

1шт.

120371

NUT,1/2"-20, G5

2шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

2шт.

60

67538C91

HEADLAMP

LIGHT ASSY, flashing warning, will work for 394129R91, only serviceable item is lamp 9417866

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

2шт.

120371

NUT,1/2"-20, G5

2шт.

61

394262R1

WASHER

GASKET, flashing, warning light, used with light 394129R91

2шт.

62

376749R1

BODY

CONNECTOR, flashing warning light

2шт.

63

528533R1

SPRING

headlight

8шт.

64

405228R1

CABLE

ASSY, harness to headlight junction

1шт.

65

399470

FRAME

INSULATOR, terminal cover boot

1шт.

66

145510

FUSE,1 Amp, Type 3AG

cartridge type AGC-1, 1-1/4 long

1шт.

66

149559

FUSE, cartridge type AGA-1, 5/8 long 1 Amp, Type 1AG

1шт.

67

534820R2

CABLE ASSY, warning light junction, hydrostatic drive tractors

1шт.

68

539462R1

HARNESS, 2500 series A hydrostatic drive tractors with foot controls

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP

1шт.

69

65425C1

SWITCH

ASSY, oil temperature, hydrostatic drive tractors

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

70

529664R1

HARNESS

ASSY, feader cable (Replaces 529644R1)

1шт.
