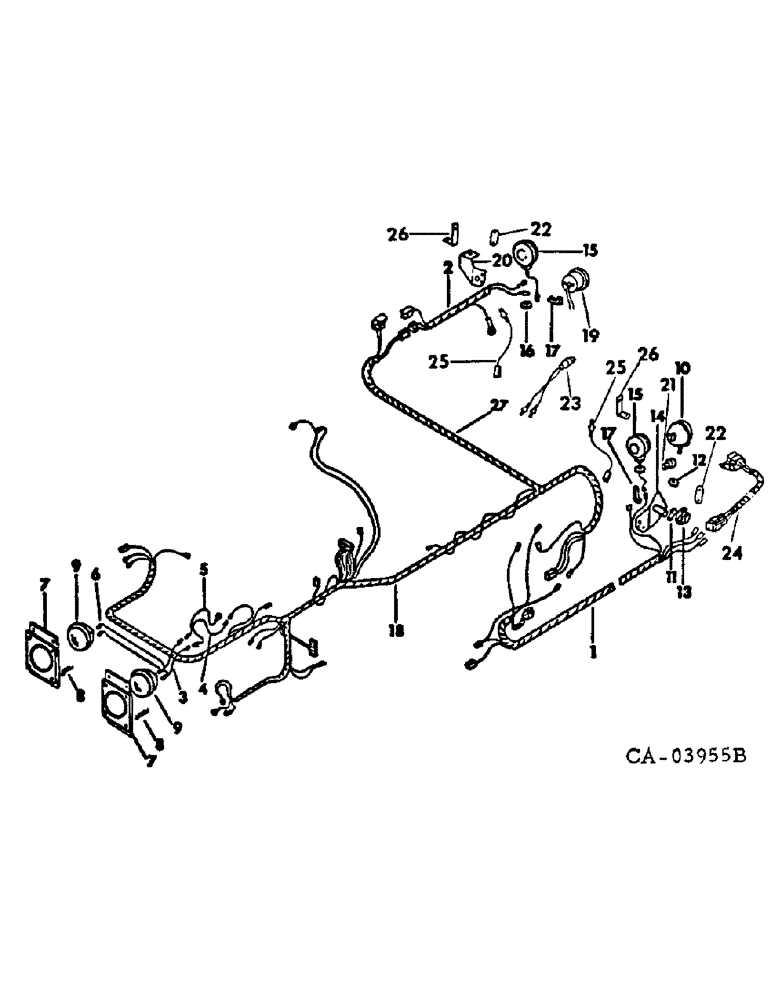

Запчасти Case IH 574 (08-23) - ELECTRICAL, ELECTRIC LIGHTING (06) - ELECTRICAL

1

529668R2

HARNESS

CABLE ASSY, LH fender, tractors without stop lights

1шт.

1

66489C2

CABLE ASSY, LH fender, tractors with stop lights

1шт.

2

529669R2

HARNESS

CABLE ASSY, RH fender, tractors without stop lights

1шт.

2

66488C2

CABLE ASSY RH FENDER, tractors with stop lights

1шт.

3

404420R1

CABLE ASSY, headlight junction

1шт.

4

405228R1

CABLE

ASSY, harness to headlight junction

1шт.

5

404421R1

CABLE

ASSY, Serial Range: headlight-ground

1шт.

6

404422R1

CABLE

ASSY, ground and headlight junction

1шт.

7

537013R1

HOUSING

headlight, replaces 528532R1

2шт.

529671R2

SCREW

10-24 x 2-1/4 C-Z ov-hd cr-rec mach

8шт.

66327C1

WASHER

grille screen retainer

4шт.

537014R1

INSERT

headlight housing

8шт.

8

528533R1

SPRING

headlight

8шт.

9

373662R91

LAMP

HEADLIGHT, sealed beam

2шт.

10

387729R92

LIGHT ASSY.

LIGHT ASSY, sealed beam combination rear and tail, only servicable items are bulb 455490, lamp 371461R91 and retainer 676078R1, replaces 377102R92

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

377105R1

CONNECTOR, ELEC

CONNECTOR, comb, rear and tail light, used with light 377102R91

1шт.

12

365503R1

SPACER

combination rear and tail light

1шт.

13

350920R1

CLAMP

combination rear and tail light

1шт.

14

529672R1

BRACKET

ASSY, combination rear light, tractors without stop lights without stop lights and ROPS

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

66492C1

BRACKET ASSY, tail and flasher light LH, tractors with stop lights and without ROPS

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

69973C1

BRACKET, stop light, tractors with stop lights and ROPS

1шт.

527067R1

U-BOLT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

394129R91

LIGHT

ASSY, flashing warning, for complete light assy, furnish 67538C91, only servicable items are lens, amber 899280R1 or 405532R1, red 899279R1 and lamp 9417866

2шт.

394262R1

WASHER

GASKET, flashing warning light

1шт.

15

67538C91

HEADLAMP

LIGHT ASSY, flashing warining, will work for 394129R91, only servicable item is lamp 9417866

1шт.

120371

NUT,1/2"-20, G5

2шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

2шт.

16

144227

SPIDER, REEL

fender cable

8шт.

17

376749R1

BODY

CONNECTOR, flashing warning light

6шт.

18

HARNESS ASSY, main, refer to starting and lighting listing

1шт.

19

967696R92

STOP LIGHT

LIGHT ASSY, combination stop and tail, tractors with stop lights, only servicable items ar lens 157729R1, gasket 81714R1, lamp 9417867 and two screw 132764

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

20

66494C1

BRACKET, tail and flasher light RH, tractors with stop lights and without ROPS

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

69973C1

BRACKET, stop light, tractors with stop lights and ROPS

1шт.

527067R1

U-BOLT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

21

387311R1

ROD, CONNECTING

CONNECTOR, work light, used with light 376849R91

1шт.

22

202562C1

REFLECTOR

2шт.

23

66484C1

CABLE ASSY, tail and stop light

2шт.

24

66064C1

HARNESS

ASSY, combination light extension, tractors with ROPS

1шт.

25

69974C1

CABLE, flashing light to light harness, tractors with stops lights and ROPS

2шт.

67311C1

CLIP, wiring

14шт.

26

69946C1

BRACKET ASSY, flashing warning, tractors with stop lights and ROPS

2шт.

27

529664R1

HARNESS

ASSY, fender cable

1шт.
