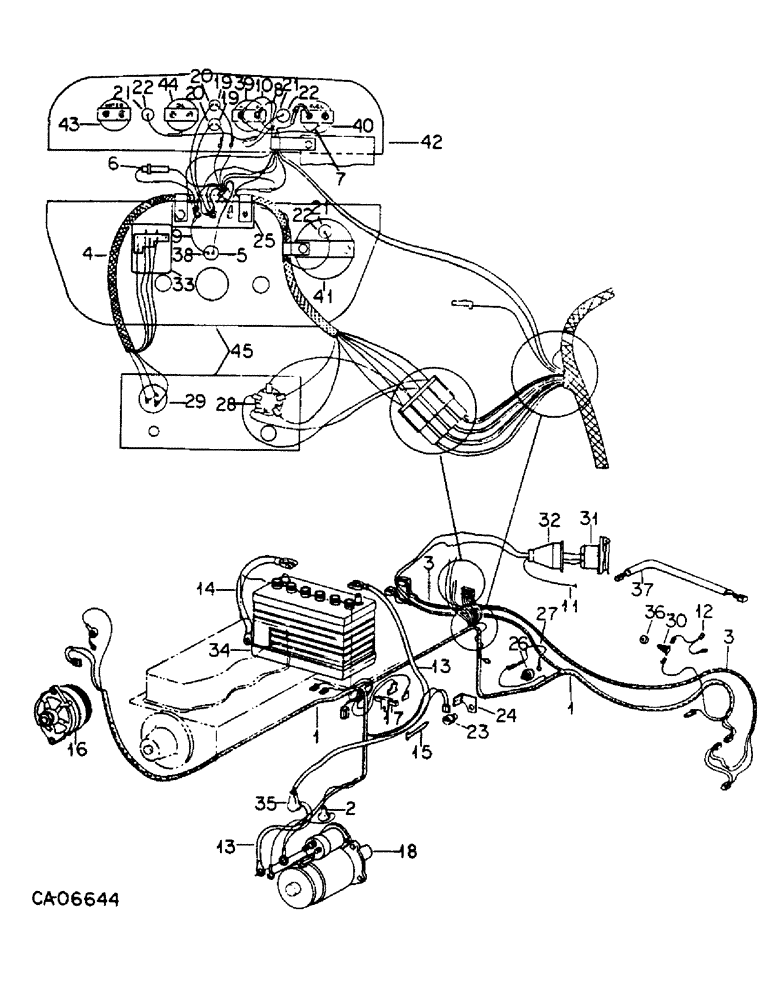

Запчасти Case IH 574 (08-15) - ELECTRICAL, BASIC GASOLINE ENGINE TRACTORS WIRING, 574 TRACTORS WITH SERIAL NO. 114909 AND ABOVE (06) - ELECTRICAL

1

114606C1

HARNESS ASSY, main cable

1шт.

2

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

3

114603C1

HARNESS

ASSY, fender cable

1шт.

4

114604C1

HARNESS

ASSY, panel cable

1шт.

5

114559

FUSE, cartridge type AGA-1

1шт.

5

145510

FUSE,1 Amp, Type 3AG

cartridge type AGC-1

1шт.

6

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC-10

1шт.

7

529660R1

CABLE

ASSY, junction block to fuel gauge

1шт.

8

529661R1

CABLE

ASSY, junction block to charge indicator positive terminal

1шт.

9

404530R1

CABLE

ASSY, junction, Serial Range: block-fuse

1шт.

10

404391R1

CABLE

ASSY, junction block to charge indicator negative terminal

1шт.

11

104388C1

GROUND CABLE

CABLE ASSY, Serial Range: connector-ground

1шт.

12

405229R1

CABLE

ASSY, parking brake ground

1шт.

13

529662R1

CABLE

ASSY, battery to solenoid switch

1шт.

14

529663R1

CABLE

ASSY, Serial Range: battery-ground

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

1шт.

15

306132C1

CABLE TIE,14.5" L

STRAP, lock

1шт.

16

ALTERNATOR-GENERATOR, for components see list of parts under details of alternator-generator

1шт.

17

548239R2

RECTIFIER

DIODE

1шт.

18

MOTOR, cranking, Delco-Remy, for components see list of parts under details of cranking motor

1шт.

19

70263C91

SOCKET

PACKAGE ASSY, parking bracke and transmission oil pressure socket, replaces 537804R1

1шт.

20

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895, 12 volt parking brake and transmission oil pressure warning light

1шт.

21

537803R1

SOCKET

ASSY, instrument light

3шт.

22

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895, 12 volt tachometer and gauges

3шт.

23

121629C1

IGNITION SWITCH

SWITCH ASSY, neutral starting, replaces 382728R91

1шт.

24

533859R1

BRACKET

neutral safety switch

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

378336R91

BLOCK

ASSY, junction

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

26

376855R92

SWITCH

transmission oil pressure

1шт.

27

404531R1

CABLE

JUNCTION

1шт.

28

107200C2

LIGHT SWITCH

SWITCH ASSY, lighting refer to engine controls and switches listing

1шт.

29

107682C1

SWITCH

ASSY, ignition key refer to engine controls and switches listing

1шт.

30

404352R1

SWITCH

ASSY, park brake warning light

1шт.

31

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET ASSY, 7 contact

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

32

783611C1

BOOT

COVER, 7 contact socket rubber

1шт.

33

107334C91

SWITCH

FLASHER ASSY, combination and turn signal switch, not California

1шт.

33

130816C1

FLASHER ASSY, combination and turn, California only

1шт.

34

538976R1

BATTERY, Prestolite 2226X, 12 volt

1шт.

35

364910R1

BOOT

INSULATOR, terminal cover boot

1шт.

36

534351R1

COVER

warning light switch

1шт.

37

66064C1

HARNESS

ASSY, combination light extension, used with protective frame

1шт.

38

376852R91

HOUSING

ASSY, fuse refer to engine controls and switches listing

1шт.

39

536229R1

INDICATOR

GAUGE ASSY, charge indicator refer to instrument panel and gauges listing

1шт.

40

529804R1

FUEL GAUGE

GAUGE ASSY, fuel refer to instrument panel and gauge listing

1шт.

41

61455C1

TACHOMETER, refer to instrument panel and gauges listing

1шт.

42

529358R11

PANEL

instrument face refer to insturment panel and gauges listing

1шт.

43

529801R1

INDICATOR

ASSY, heat refer to instrument panel and gauges listing

1шт.

44

529802R1

GAUGE

ASSY, oil pressure refer to instrument panel and gauges listing

1шт.

45

114627C1

PANEL ASSY, instrument refer to instrument panel and gauges listing

1шт.
