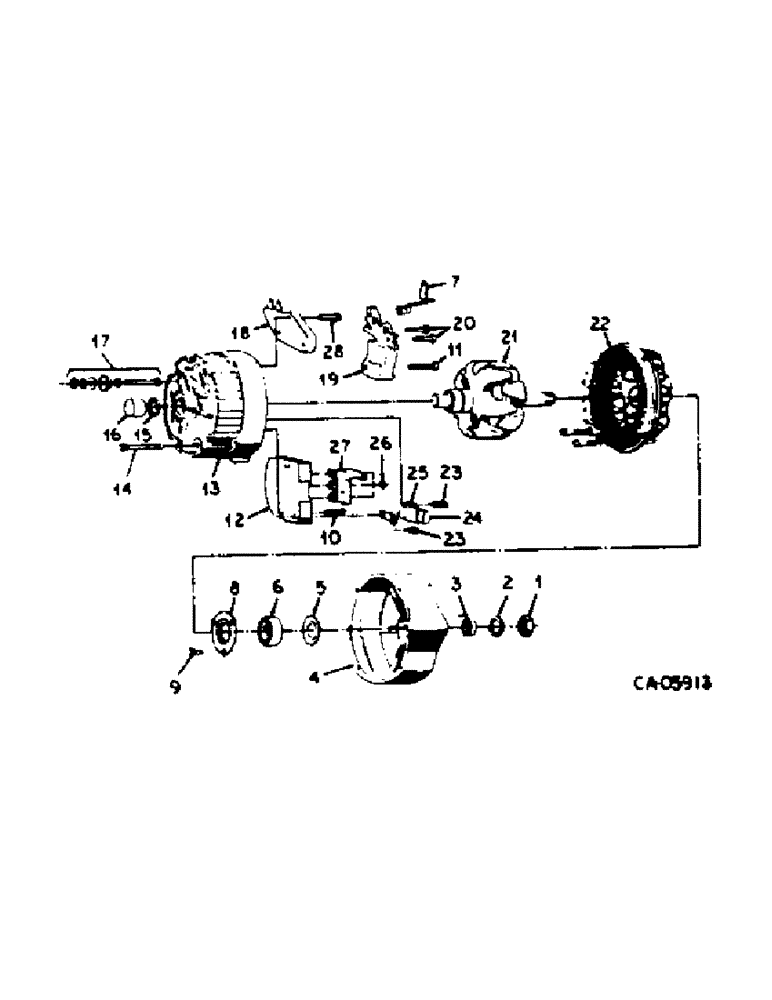

Запчасти Case IH 574 (08-06) - ELECTRICAL, ALTERNATOR-GENERATOR, 574 TRACTORS WITH SERIAL NO. 115058 AND ABOVE (06) - ELECTRICAL

1102920

GENERATOR

ALTERNATOR-GENERATOR, integral solid state voltage regulator

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option 574

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

A46932

ALTERNATOR

ALTERNATOR - 12 Volt 61 ampere

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A46932

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New P/N A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

4

1970525

FUNNEL

FRAME FRAME, drive end

1шт.

3

1959991

COLLAR

COLLAR, drive end

1шт.

1

1915172

NUT

NUT, drive shaft end

1шт.

5

800832

WASHER

WASHER, drive end oil slinger

1шт.

2

1941978

WASHER

WASHER, drive end shaft lock

1шт.

6

1974861

BALL BEARING

BEARING, drive end ball

1шт.

7

1894568

ELEC CONNECTOR

TERMINAL, relay

1шт.

8

1971993

PLATE

PLATE, drive end ball bearing retainer

1шт.

9

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, bearing, retainer plate attaching

3шт.

10

1876668

SCREW

SCREW, rectifier support

1шт.

11

1974020

SCREW

SCREW, brush holder pivot

1шт.

12

1891055

SUPPORT

SUPPORT, rectifier

1шт.

13

1894570

FRAME

FRAME, slip ring end

1шт.

14

1956975

BOLT

SCREW, frame attaching

4шт.

15

1961323

SEAL

SEAL, slip ring end roller bearing, used w/brg 9436831 only

1шт.

16

1974862

BUSHING

BEARING, slip ring end roller, replaces 9436831

1шт.

17

1846900

PACKAGE

PACKAGE, battery terminal

1шт.

18

1116387

VOLTAGE REGULATOR

REGULATOR, voltage

1шт.

19

1894559

HOLDER

HOLDER ASSY, brush and brush

1шт.

20

1876681

SCREW

SCREW ASSY, brush holder insulated

2шт.

21

1876163

ROTOR

ROTOR ASSY

1шт.

22

1894594

STATOR

STATOR ASSY, 42 ampere

1шт.

23

1851612

SCREW

SCREW W/LOCK WASHER, capacitor bracket and lead attaching

2шт.

24

1971411

CAPACITOR

CAPACITOR ASSY

1шт.

25

1869573

BRACKET

BRACKET, capacitor mounting

1шт.

26

453996

NUT,#8-32

NUT, no. 8 CDP hex mach screw type 1

3шт.

27

1971528

RECTIFIER

RECTIFIER, diode trio

1шт.

28

1894586

SCREW

SCREW ASSY, brush holder ground

1шт.
