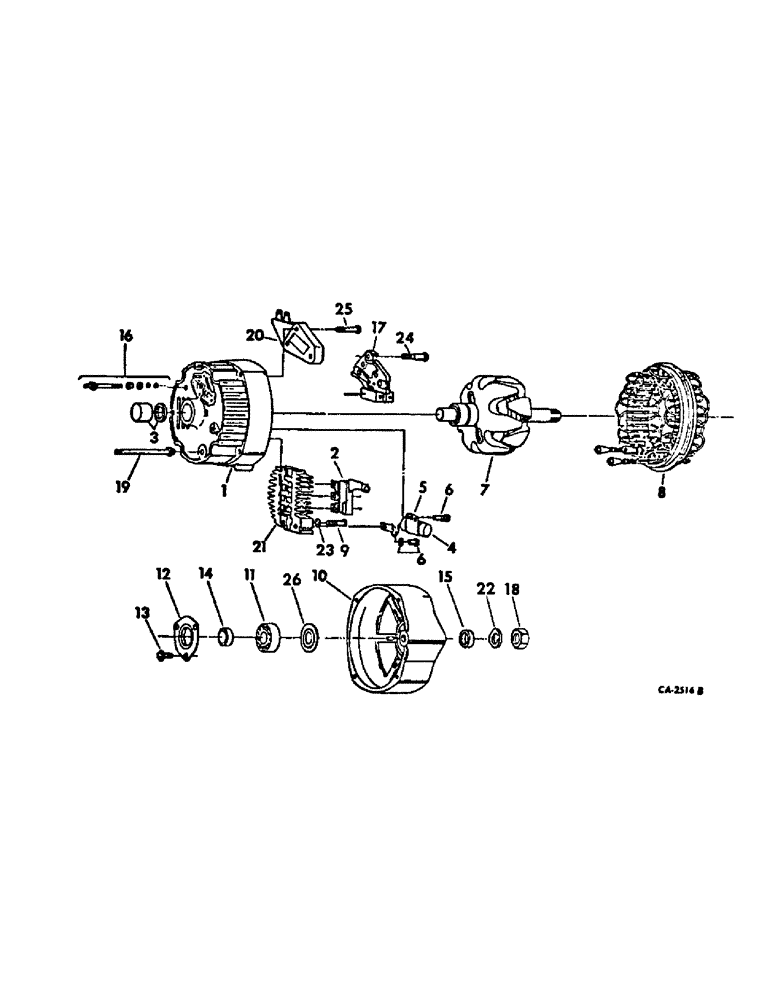

Запчасти Case IH 574 (08-05) - ELECTRICAL, ALTERNATOR-GENERATOR, DELCO REMY (06) - ELECTRICAL

1100578

ALTERNATOR

ALTERNATOR-GENERATOR ASSY, 37 ampere, for service replacement, furnish 1102920

1шт.

1100593

ALTERNATOR-GENERATOR ASSY, 37 ampere, for service replacement, furnish 1102920

1шт.

1100583

GENERATOR

ALTERNATOR-GENERATOR ASSY, 42 ampere, for service replacement, furnish 1102920

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option 574

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 AmpAlternator

1шт.

A46932

ALTERNATOR

ALTERNATOR - 12 Volt 61 ampere

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A46932

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New P/N A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1852101

FRAME

FRAME, slip ring end

1шт.

2

1971528

RECTIFIER

DIODE TRIO, negative

1шт.

3

423649C91

BALL BEARING

BEARING, slip ring end

1шт.

4

801824

CAPACITOR

CAPACITOR

1шт.

5

1869573

BRACKET

BRACKET, capacitor

1шт.

6

1851612

SCREW

SCREW, capacitor bracket

2шт.

7

1891598

ROTOR

ROTOR ASSY, replaces rotor, 1846657 and collar, 1963139

1шт.

8

1971986

STATOR

STATOR ASSY

1шт.

9

1970145

SCREW

SCREW, rectifier bridge attaching

1шт.

10

1970525

FUNNEL

FRAME FRAME, drive end

1шт.

11

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, drive end ball

1шт.

12

1971993

PLATE

PLATE, drive end ball bearing retainer

1шт.

13

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, retainer plate attaching

3шт.

14

1963139

COLLAR CLAMP

COLLAR, inside drive end, use w/rotor 1846657

1шт.

15

1959991

COLLAR

COLLAR, outside drive end

1шт.

16

1846900

PACKAGE

TERMINAL PACKAGE, battery

1шт.

17

1876873

HOLDER

BRUSH HOLDER AND BRUSH ASSY

1шт.

18

1915172

NUT

NUT, drive end shaft

1шт.

19

1956975

BOLT

BOLT, thru

4шт.

20

1116387

VOLTAGE REGULATOR

REGULATOR

1шт.

21

1875627

HOLDER

BRIDGE, positive rectifier

1шт.

22

1941978

WASHER

WASHER, drive end shaft nut lock

1шт.

23

1847933

WASHER

WASHER, rectifier bridge attaching screw spring

3шт.

24

1876681

SCREW

SCREW, insulated brush holder

2шт.

25

1876682

SCREW

SCREW, ground brush holder

1шт.

26

800832

WASHER

WASHER, drive end grease slinger

1шт.
