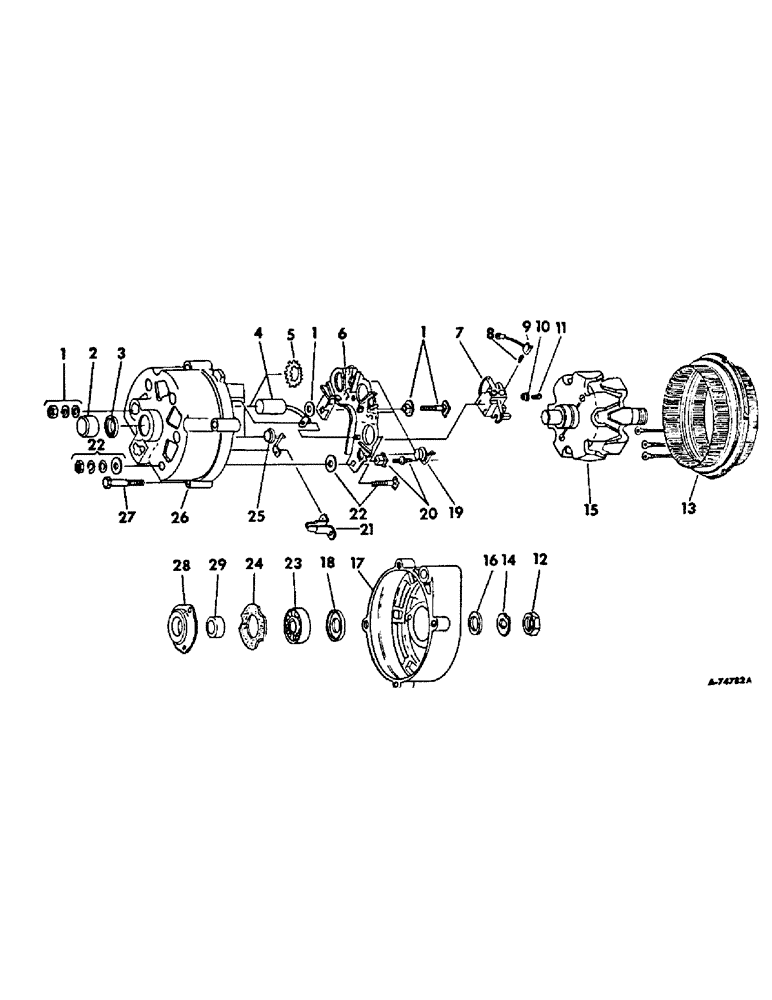

Запчасти Case IH 574 (08-04) - ELECTRICAL, ALTERNATOR-GENERATOR (06) - ELECTRICAL

1100805

GENERATOR

ALTERNATOR-GENERATOR, 702337C91

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option 574

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

A46932

ALTERNATOR

ALTERNATOR - 12 Volt 61 ampere

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A46932

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New P/N A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL W/NUTS AND WASHERS, ground

1шт.

2

423649C91

BALL BEARING

BEARING, slip ring end

1шт.

3

1961323

SEAL

RETAINER W/FELT, slip ring end

1шт.

4

1959455

CAPACITOR

CAPACITOR

1шт.

5

1960750

VALVE SPRING

SPRING, condenser retaining

1шт.

6

1959828

PACKAGE

HEAT SINK ASSY

1шт.

1959523

SPARE PART WASHER, heat sink screw insulator

1шт.

7

1964682

HOLDER

HOLDER ASSY, brush and spring

1шт.

8

(Not serviced separately), order holder assy 1964682

1шт.

9

(Not serviced separately), order holder assy 1964682

1шт.

10

1959389

INSULATOR

INSULATOR, brush holder screw

2шт.

11

1957501

SCREW

SCREW, brush holder attaching

2шт.

12

1911324

NUT

NUT, drive end shaft

1шт.

13

1959381

COIL

STATOR ASSY

1шт.

14

1941978

WASHER

WASHER, drive end shaft

1шт.

15

1958565

ROTOR

ROTOR ASSY

1шт.

16

1959991

COLLAR

COLLAR, drive end outside spacer

1шт.

17

1959917

FUNNEL

FRAME, drive end

1шт.

18

(Not used in this application)

1шт.

19

(Not used in this application)

1шт.

20

1964353

DIODE

DIODE, positive

3шт.

21

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

443919R91

BEARING

BEARING, drive end

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1964354

DIODE

DIODE, negative

3шт.

26

1969329

FUNNEL

FRAME FRAME, ship ring end

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1955494

PLATE

RETAINER ASSY, drive end bearing

1шт.

29

1963139

COLLAR CLAMP

COLLAR, drive

1шт.
