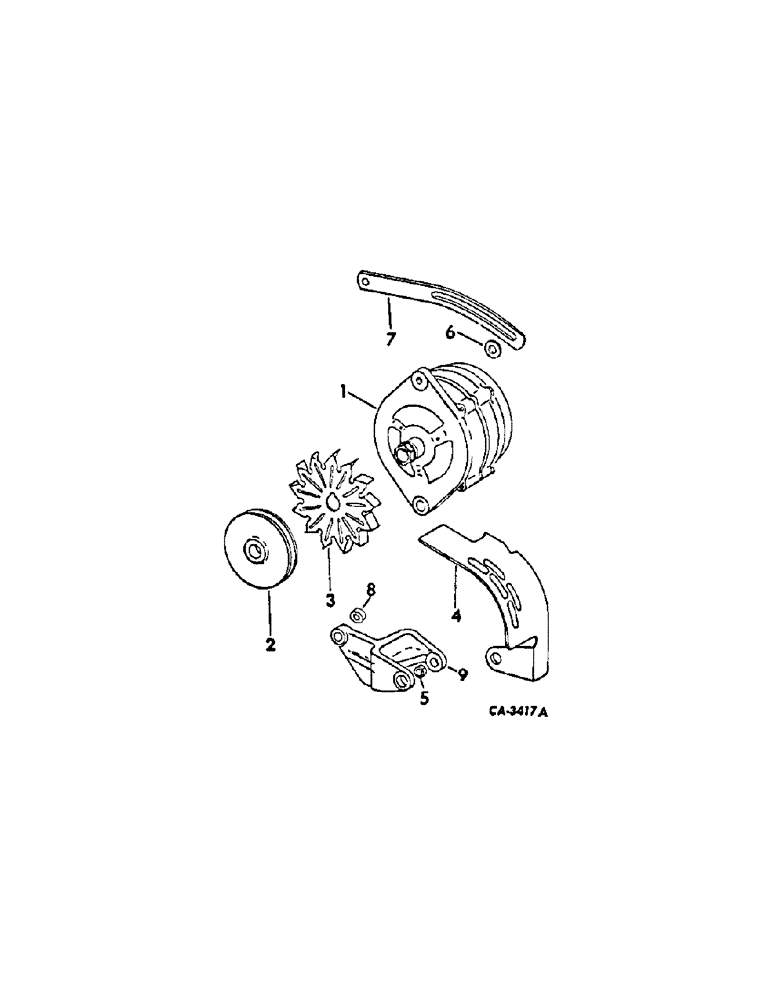

Запчасти Case IH 574 (08-03[1]) - ELECTRICAL, ALTERNATOR-GENERATOR, DIESEL ENGINE TRACTORS, 574 TRACTORS WITH S/N 115058 AND ABOVE (06) - ELECTRICAL

1

1102920

GENERATOR

ALTERNATOR-GENERATOR WITH REGULATOR, 130973C91

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option 574

1шт.

1

87297245

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

A46932

ALTERNATOR

ALTERNATOR - 12 Volt 61 ampere

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New PN A46932

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

121743

CHAIN,#12 - 24

no. 12 mach screw type 1

1шт.

21404R1

SCREW,Hex, 5/16"-18 x 4 1/2", G8

BOLT, 5/16 x 4-1/2 type 8

1шт.

9413977

NUT

NUT, 5/16 PHC P/T lock type 8

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

557265R1

WASHER

WASHER, .344 x 1.000 x .105 pln

1шт.

2

528173R1

PULLEY

PULLEY, alternator-generator

1шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

114652C1

SHIELD

SHIELD ASSY, alternator fan and pulley

1шт.

5

66465C1

BUSHING

BUSHING, alternator mounting bolt

1шт.

6

280185R1

SPACER

SPACER, alternator brace

1шт.

7

66466C1

STAY

BRACE, alternator adjusting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

NUT, 5/16-18 hex.

1шт.

8

397384R1

SCRAPER RING

SPACER, alternator bracket

1шт.

9

66467C1

HOLDER

BRACKET, alternator mounting

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
