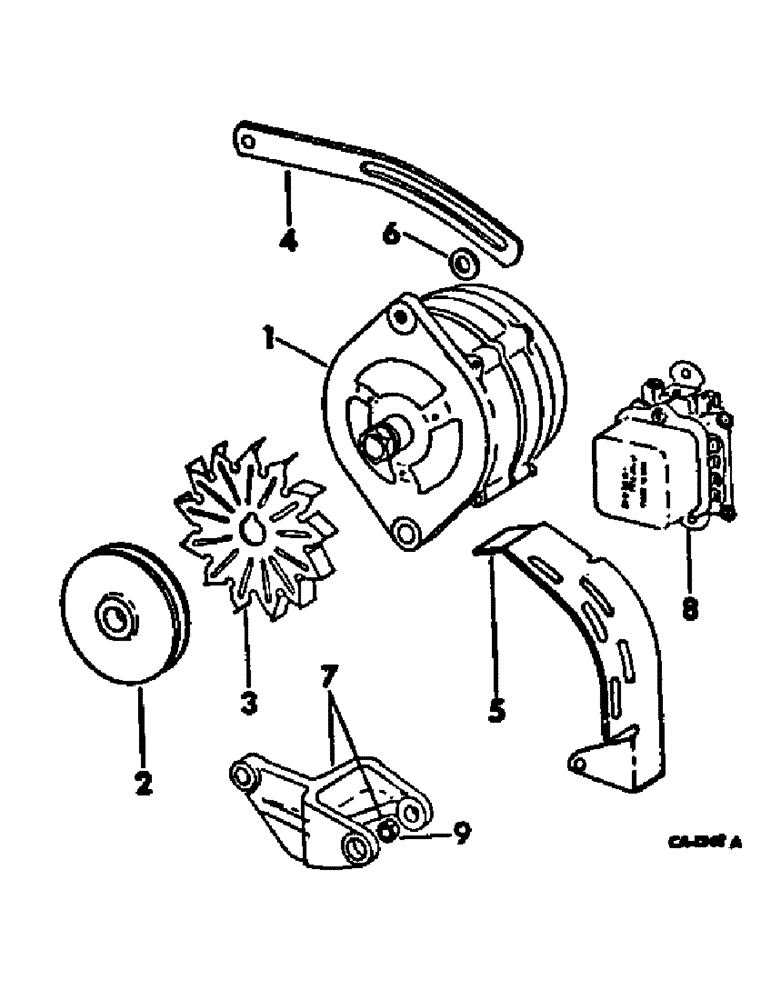

Запчасти Case IH 574 (08-02) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS (06) - ELECTRICAL

1

1100805

GENERATOR

ALTERNATOR-GENERATOR, Delco Remy, 702337C91, for components, see list of parts under details of alternator generator

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator Option 574

1шт.

1

87297245

CORE-ALTERNATOR

Return Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

A46932

ALTERNATOR

ALTERNATOR - 12 Volt 61 ampere

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A46932

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman For New P/N A47625

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/9-16 PHC hex. lock

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

528173R1

PULLEY

PULLEY, alternator-generator

1шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

534312R2

BRACE

BRACE, alternator-generator adjusting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

1шт.

5

114652C1

SHIELD

SHIELD ASSY, alternator fan and pulley, replaces 534313R2

1шт.

6

280185R1

SPACER

SPACER, alternator-generator brace

1шт.

7

533789R11

BRACKET

BRACKET ASSY, alternator-generator

1шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

BOLT, Hex, 5/16"-18 x 4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

1119513

VOLTAGE REGULATOR

REGULATOR, alternator-generator, 336410R91, 574 tractors w/serial no. 4240 and below and 2500 series A tractors w/serial no. 989 and below

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW, 1/4-20 x 1/2 hex-hd cap

2шт.

103019

BOLT

WASHER, 1/4 med lock

2шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

9

536241R1

BUSHING

BUSHING, alternator-generator bracket

1шт.
