Запчасти Case IH 574 (13-11) - SUPERSTRUCTURE, PROTECTIVE FRAME AND SEAL BELT (05) - SUPERSTRUCTURE

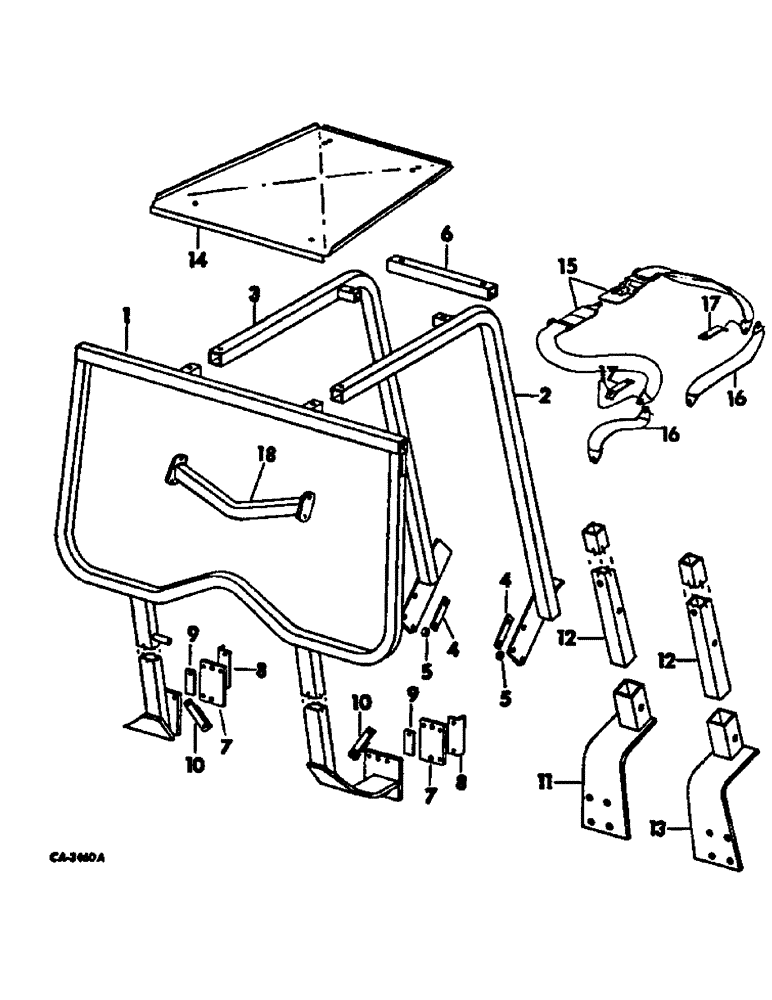

Схема запчастей Case IH 574 - (13-11) - SUPERSTRUCTURE, PROTECTIVE FRAME AND SEAL BELT (05) - SUPERSTRUCTURE
1
8
4
12
5
14
4
16
10
12
17
9
8
15
6
11
2
7
18
13
10
9
16
7
3
5

Артикул

Название

Примечание

Количество

ATTACHMENT PROTECTIVE FRAME, 537296R92, 574 and 2500 series A tractors with 2050A or 3050A loader and tractors with 1550 or 1850 loader also order completing package 68409C91, consists of all parts w/hardware marked unit A, light harness 66064C1

1шт.

Tractors with two stop and tail lights also order light bracket mounting attachment 70006C91

1шт.

ATTACHMENT, protective frame, 66343C92, 2500 series A Lo-Boy tractors with 2050A or 3050A loader, consists of all parts w/hardware marked unit B, light harness 66064C1, wheel spacer hub 66341C1 and product graphics

1шт.

Tractors with two stop and tail lights also order light bracket mounting attachment 70006C91

1шт.

ATTACHMENT, protective frame, 4 post, 66782C91, 2500 series A tractors with 2050A or 3050A loader and 3142A backhoe consists of all parts w/hardware marked unit C, LH fender 67154C1 and product graphics

1шт.

Tractors with two stop and tail lights also order light bracket mounting attachment 70006C91

1шт.

ATTACHMENT, seat belt, 539619R91, consists of all parts w/hardware marked unit D

1шт.

66917C91

PARTS ACCESSORY, protective frame canopy, 574 tractors, consists of all parts w/hardware marked unit E, when canopy is ordered tractor must also be equipped with exhaust extension and clamp

1шт.

COMPLETING PACKAGE, protective frame, 68409C91, 574 row crop tractors with 1550 or 1850 loader, consists of all parts w/hardware marked unit F

1шт.

ATTACHMENT, protective frame, 66778C91, 574 row crop tractors with 1550 or 1850 loader, consists of all parts w/hardware marked unit G

1шт.

Tractors with two stop and tail lights also order light bracket mounting attachment 70006C91

1шт.

ATTACHMENT, protective frame, 537294R92, 574 and 2500 series A tractors with 2050A or 3050A loader, consists of all parts w/hardware marked unit H

1шт.

Tractors with two stop and tail lights also order light bracket mounting attachment 70006C91

1шт.

ATTACHMENT, protective frame, 66051C91, 574 and 2500 series A tractors with 2050A or 3050A loader, consists of all parts w/hardware marked unit J

1шт.

Tractors with two stop and tail lights also order light bracket mounting attachment 70006C91

1шт.

ATTACHMENT, protective frame, 70830C91, 574 tractors with 1850 loader, consists of all parts w/hardware marked unit K

1шт.

Tractors with two stop and tail lights also order light bracket mounting attachment 70006C91

1шт.

ATTACHMENT, seat retaining belt, 539257R91, 574 diesel or gasoline tractors with synchromesh or hydrostatic transmission, row crop and non-row crop tractors, consists of all parts marked unit L

1шт.

NOTE, tractors with two stop and tail light also order light bracket mounting attachment 70006C91

1шт.

1

FRAME ASSY, rear, units A, B, C, G, H and J, not sercived separately, order frame attachment

1шт.

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

5/8-11 x 8.8 hex-hd type 8, 8 used with unit A, B, H and J, 6 used with unit C

1шт.

21434R1

NUT,5/8"-11, G8

5/8-11 hex. zn type 8, 6 used with unit C, 8 used with unti H

1шт.

23702R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

SCREW, 3/4-10 x 9 hex-hd cap, units A and G

4шт.

22049R1

NUT,3/4"-10, G8

3/4-10 C-Z hex. type 8, units A and G

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 zn hex-hd, units B, C and J

2шт.

120384

WASHER,1/2"

LOCK, , Units B, C and J 1/2"

2шт.

2

LEG ASSY, RH front, units A, B, C, G, H, J and K, not serviced separately, order frame attachment

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

SCREW, 3/4-10 x 2-1/4 znd hex-hd

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

3

LEG ASSY, LH front, units A, B, C, G, H, J and K, not serviced separately, order frame attachment

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

SCREW, 3/4-10 x 2-1/4 znd hex-hd

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

4

537308R1

PLATE

spacer, units A, B, C, G, H and J

2шт.

5

537309R1

SPACER

unit A, B, C, G, H and J

2шт.

6

BAR, front cross, units A, B, C, G, H, J and K, not serviced separately, order frame attachment

1шт.

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap, 6 used with unit K

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 6 used with Unit K 5/8"

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 C-Z hex. type 8, 6 used with unit K

4шт.

7

PLATE, backing, not serviced separately, order frame attachment, units A,B, G and H

2шт.

8

66062C1

PLATE

mounting, uits A, B, H and J

2шт.

9

66063C1

DECAL

SHIM, units A, B, G, H and J

4шт.

10

PLATE ASSY, mounting, units A, B, H and J, not serviced separately, order frame attachment

2шт.

11

BRACKET ASSY, LH mounting, units F and K, not serviced separtely, order completing package

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap type 8

4шт.

21330R1

NUT,1/2"-13, G8

1/2-13 znd hex. type 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

TUBE, connector, units F and K, not serviced separately, order completing package

2шт.

13

BRACKET ASSY, RH mounting, units F and K, not serviced separately, order completing package

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap type 8

4шт.

21330R1

NUT,1/2"-13, G8

1/2-13 znd hex. type 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

14

CANOPY, unit E, furnish parts accessory, 66917C91

1шт.

118225C1

STRIP

canopy

3шт.

118226C1

STRIP

canopy

1шт.

432487

HOLE PLUG BUTTON,11/16"

PLUG, 11/16 button

2шт.

21759R1

WASHER

.656 x 2.000 x .105

4шт.

21793R1

WASHER

.656 x 1.250 x .164

4шт.

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

5/8 x 3-1/2 type 8

4шт.

15

537339R1

SAFETY BELT

SAFETY BELT, 2", Units A, B, C, G, H, J and K

1шт.

404911C1

BOLT

seat seat belt anchor

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 znd hex. type 8

2шт.

15

702248C3

BELT

SAFETY BELT, Unit D

1шт.

344096C3

BOLT

BOLT, seat belt anchor

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 znd hex. type 8

2шт.

71233C91

PARTS ACCESSORY, seat belt, 2 inch, consists of belt, 71236C1 only

1шт.

16

539258R1

SAFETY BELT

SAFETY BELT, Retainer, Units A, B, C and L

2шт.

404911C1

BOLT

seat belt anchor

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 znd hex. type 8

2шт.

120395

WASHER

.469 x .922 x .051

4шт.

17

539259R1

CLIP

seat belt anchor, units A, B, C and L

1шт.

18

TUBE ASSY, center, unit C, not serviced separately, order frame attachment

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 hex-hd zn type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 hex. zn type 8

4шт.

70773C1

DECAL

PRODUCT GRAPHIC, seat belt and ROPS caution instruction

1шт.

65982C1

DECAL

PRODUCT GRAPHIC, ROPS caution instruction, keep hands clear

1шт.

70571C1

DECAL

PRODUCT GRAPHIC, ROPS caution instructions

1шт.
