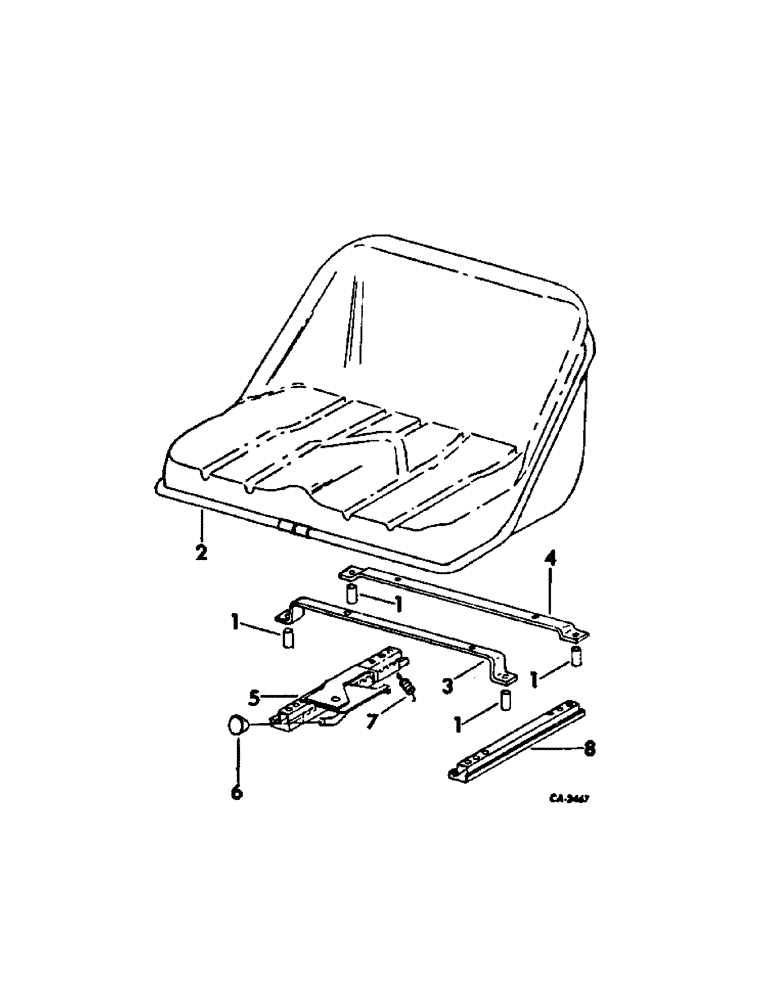

Запчасти Case IH 574 (13-07[1]) - SUPERSTRUCTURE, REFLECTOR, UPHOLSTERED SEAT (05) - SUPERSTRUCTURE

1

65881H

SPACER,1/4" Pipe x 1 1/4"

1/4 x 1-1/4 std pipe, row crop tractors, upholstered seat

4шт.

160741

SCREW, 5/16-18 x 2 C-Z cr-rec-pan-hd mach, upholstered seat

4шт.

2

538026R1

SEAT ASSY.

SEAT ASSY, pan, upholstered

1шт.

3

538027R1

BRACKET, front mounting, upholstered seat

1шт.

4

538028R1

BRACKET

rear mounting, upholstered seat

1шт.

5

825199C91

SLIDE

RAIL, slide RH w/adjuster, upholstered seat

1шт.

6

538693R1

BUTTON

KNOB, upholstered seat

1шт.

7

538694R1

SPRING

upholstered seat

1шт.

8

825198C1

RAIL

slide LH, upholstered seat

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

Upholstered seat Cross Pan Hd, 5/16"-18 x 3/4"

12шт.

120376

NUT,5/16"-18, G5

Upholstered seat 5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Upholstered seat 5/16"

8шт.
