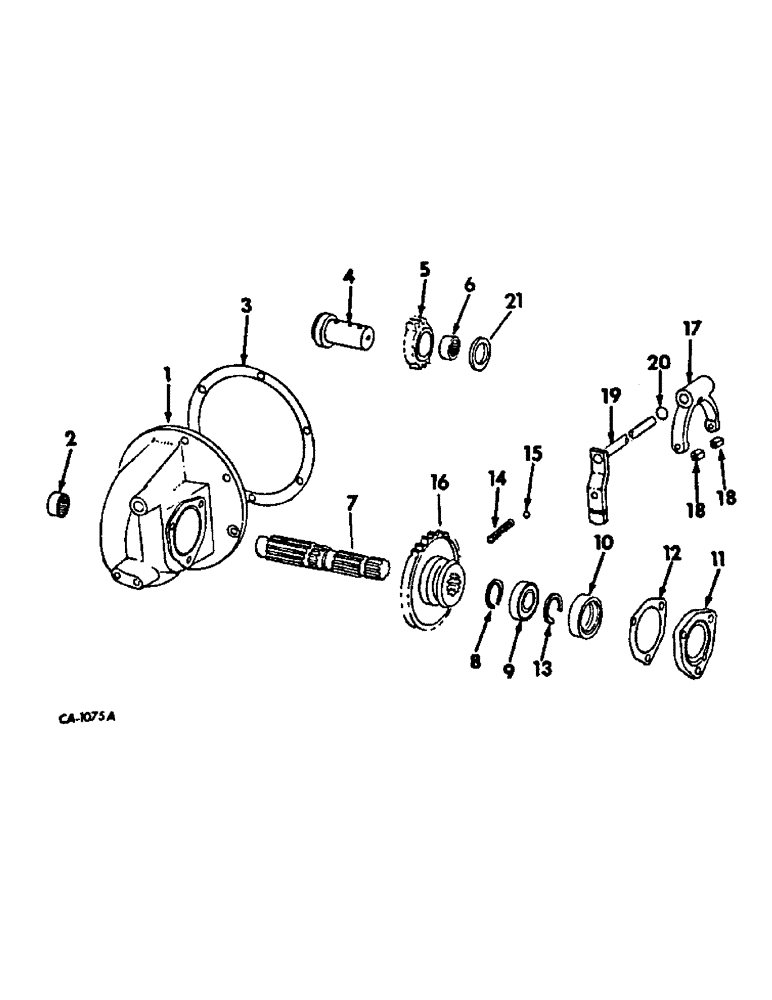

Запчасти Case IH 574 (07-46) - DRIVE TRAIN, SIDE DRIVE POWER TAKE-OFF (04) - Drive Train

ATTACHMENT, side drive PTO, 529321R91, 574 tractors and 2500 series A tractors with serial no. 100000 and below eqipped with IPTO, consists of all unmarked parts plus those marked unit A

1шт.

ATTACHMENT, side drive PTO, 67128C91, 574 tractors and 2500 series A tractors with serial no. 100001 and above equipped with IPTO, consists of all unmarked parts plus those marked unit B

1шт.

1

529322R21

HOUSING ASSY.

HOUSING W/BEARING, side drive PTO

1шт.

NLS

NO LONGER SERVICED

7шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/14 auto, sq-soc-hd pipe

1шт.

2

529323R91

BEARING, NEEDLE

BEARING, output shaft needle

1шт.

3

528650R1

GASKET

side drive PTO housing

1шт.

4

529324R1

SHAFT

side drive PTO idler gear, unit A

1шт.

618573R1

PIN,1/4" x 2 1/4", Coiled

1шт.

4

67129C1

SHAFT

side drive PTO idler gear, unit B

1шт.

618573R1

PIN,1/4" x 2 1/4", Coiled

1шт.

5

529325R1

GEAR, IDLER

GEAR, side drive PTO idler, 21 T

1шт.

6

287057R91

BEARING, NEEDLE

BEARING, idler gear needle

1шт.

7

529326R2

SHAFT, output, unit A

1шт.

7

67131C1

SHAFT

output, unit B

1шт.

8

573984R1

SNAP RING

RING, sliding gear retainer snap

1шт.

9

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, output shaft ball

1шт.

10

381480R91

OIL SEAL

output shaft oil

1шт.

11

529327R1

FLANGED BEARING

output shaft brg

1шт.

321316R1

SCREW

1/2-13 x 1-1/4 hex-hd cap

3шт.

12

529328R1

GASKET

output shaft brg retainer

1шт.

13

359141R1

RING, SNAP

RING, output shaft brg retainer snap

1шт.

14

529329R1

SPRING

driven gear poppet

1шт.

15

17009R1

BALL

9/32 cr-stl, optional w/16009R1

2шт.

15

16009R1

BALL

9/32 cr-stl, optional w/17009R1

2шт.

16

529330R1

GEAR

side drive PTO driven, 44 T, unit A

1шт.

16

67132C1

GEAR

side drive PTO driven, 44 T, unit B

1шт.

17

529331R1

FORK

ASSY, driven gear selector

1шт.

18

318721R1

BLOCK

BOLT, selector fork, unit A

2шт.

18

67133C1

BLOCK

selector fork, unit B

2шт.

19

65772C1

SHAFT ASSY.

SHAFT W/PRODUCT GRAPHIC, 65771C1, selector fork

1шт.

19791R1

PIN,1/4" x 1 1/8", Coiled

1шт.

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW, selector fork shaft arm adj

1шт.

20

355966R1

O-RING,0.424" ID x 0.103" Width

RING, 7/16 x 5/8 x 3/32, selector fork shaft

1шт.

21

67130C1

SPACER

idler gear, unit B

1шт.
