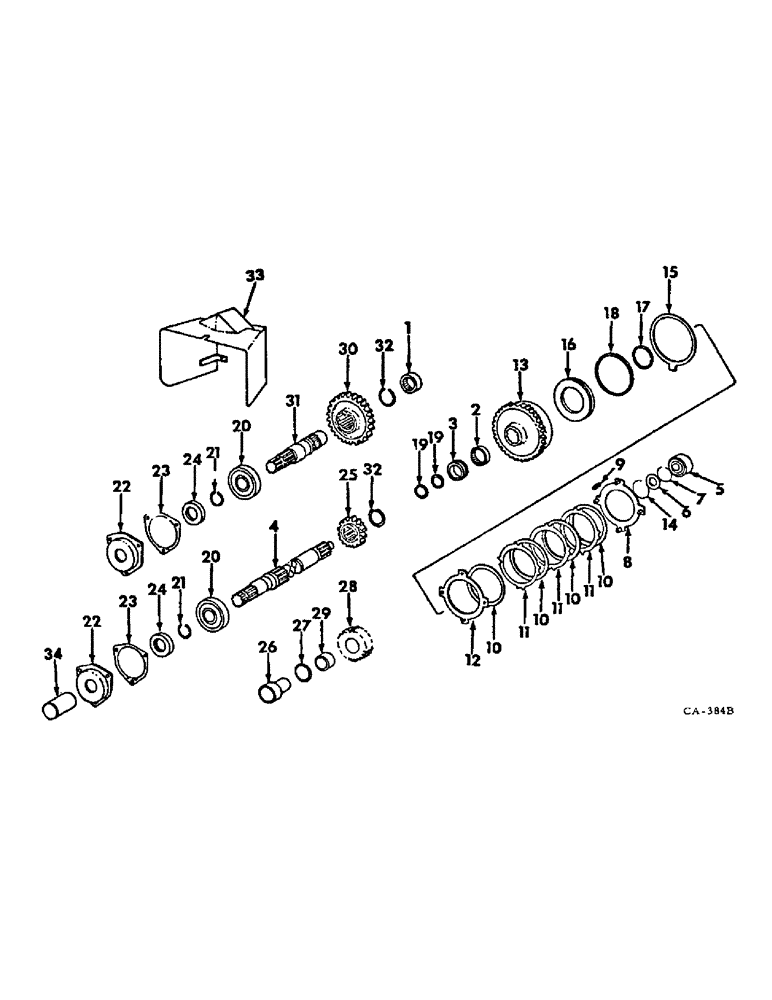

Запчасти Case IH 574 (07-42) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF, DUAL SPEED (04) - Drive Train

1

112821R91

NEEDLE BEARING

upper shaft needle

1шт.

2

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING, lower shaft needle

1шт.

3

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

4

404209R1

SHAFT

ASSY, 1000 RPM output, for service replacement, furnish shaft 3113020R1 and ring 607186R1

1шт.

4

3113020R1

SHAFT

ASSY, 1000 RPM output

1шт.

5

401710R1

HUB

ASSY, clutch

1шт.

6

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

7

401756R1

SNAP RING,#206, 1.936", Ext

RING, snap

1шт.

8

401714R11

PLATE

ASSY, clutch backing

1шт.

20154R1

DOWEL,5/16" x 7/8"

PIN, 5/16 x 7/8 dowel

4шт.

9

401715R1

SPRING

piston return

4шт.

10

DISC ASSY, front clutch, not serviced separately, furnish clutch plate service package 534934R92

1шт.

11

PLATE, driven, not serviced separately, furnish clutch plate serviced package 534934R92

1шт.

12

401718R1

PLATE

piston return

1шт.

13

404230R1

GEAR

clutch cup 44T

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

14

401720R1

CIRCLIP

RING, backing plate snap

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

16

401722R1

PISTON

clutch

1шт.

17

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, piston seal, inner

1шт.

18

401724R1

SEAL,0.551" ID x 0.07" Width

RING, piston seal, outer

1шт.

19

166972R1

RING

shaft sealing

2шт.

20

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING, shaft ball

2шт.

21

555570R1

SNAP RING

RING, brg retainer snap, used w/shaft 404209R1 and 404234R1 only

2шт.

21

607186R1

SNAP RING,#156, Ext

Brg, Used with shafts 3113017R1 and 3113020R1 #156, Ext

1шт.

22

401725R2

FLANGED BEARING

IPTO shaft brg

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

6шт.

23

399843R3

GASKET

shaft brg retainer

2шт.

24

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, shaft oil

2шт.

25

404232R1

GEAR

lower shaft drive, 21T

1шт.

26

401726R1

SHAFT

IPTO idler

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32

1шт.

28

401727R1

PINION

GEAR, idler, 24 T

1шт.

29

570450R1

BEARING

idler shaft needle

1шт.

30

404235R1

GEAR

540 RPM driven, 38 T

1шт.

31

404234R1

SHAFT

upper output, for service replacement, furnish shaft assy 3113017R1 and ring 607186R1

1шт.

31

3113017R1

SHAFT

upper output

1шт.

32

336000R1

SNAP RING,#175, 1.640", Ext

RING, driven gear retainer

2шт.

33

114684C1

SHIELD

W/PRODUCT GRAPHIC, 64553C1, IPTO safety

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

34

393116R1

TUBE

ASSY, IPTO shaft protection, will work for 406805R1

1шт.

534934R92

PLATE

PACKAGE, clutch plate service, consists of (4) disc (NSS), (6) plate (NSS), (1) o-ring 401723R1, (1) o-ring 401724R1, (4) spring 401715R1

1шт.

Ref (534934R2) - Not available - order individual component.

1шт.
