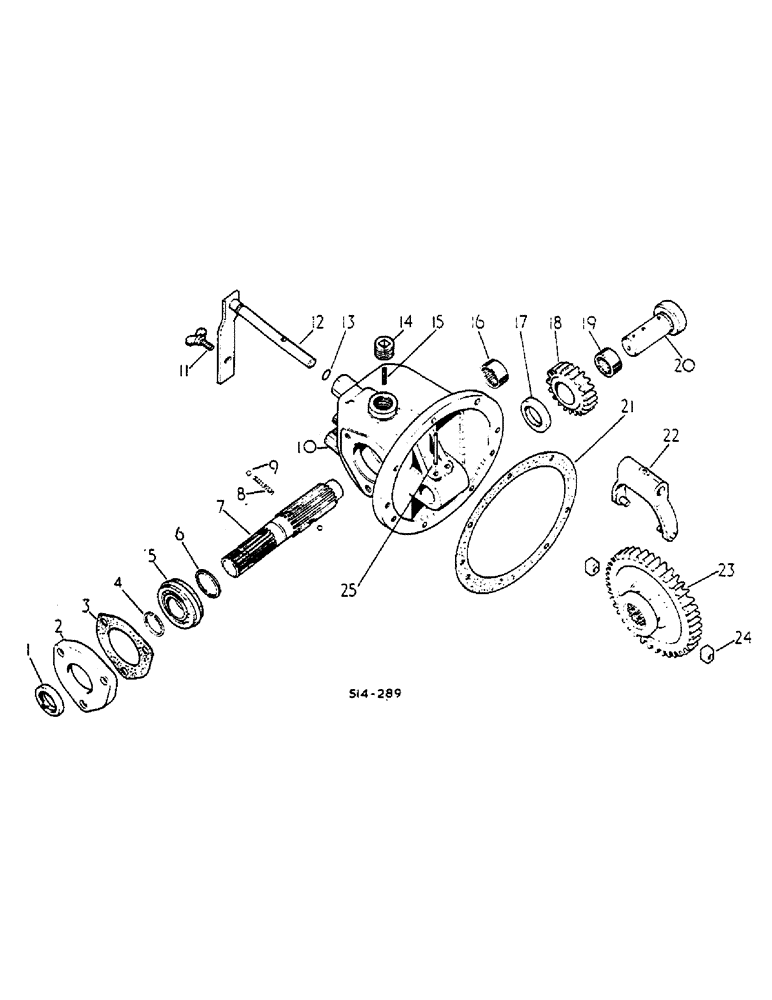

Запчасти Case IH 574 (07-056) - SIDE DRIVE POWER TAKE OFF, FOR TRACTORS W/SINGLE OR DUAL SPEED IPTO (04) - Drive Train
№
Артикул
Название
Примечание
Количество
67128C91
HOUSING
ATTACHMENT, SIDE DRIVE P.T.O., 574, Start Serial: 10037
1шт.
67128C91
HOUSING
ATTACHMENT, SIDE DRIVE P.T.O., 2500, Start Serial: 00594
1шт.
1
381480R91
OIL SEAL
OUTPUT SHAFT
1шт.
1
534917R91
OIL SEAL
OUTPUT SHAFT - OPTIONAL -
1шт.
2
529327R1
FLANGED BEARING
OUTPUT SHAFT BEARING
1шт.
321316R1
SCREW
1/2-13 X 1-1/4 HEX HD CAP
3шт.
3
529328R1
GASKET
OUTPUT SHAFT BRG. RETAINER
1шт.
4
359141R1
RING, SNAP
RING SNAP OUTPUT SHAFT BRG. RET.
1шт.
5
ST247
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
OUTPUT SHAFT
1шт.
5
704770R91
BALL BEARING
OUTPUT SHAFT
1шт.
5
700497R91
BEARING, BALL
OUTPUT SHAFT - OPTIONAL -
1шт.
6
573984R1
SNAP RING
SLIDING GEAR RETAINING
1шт.
7
67131C1
SHAFT
OUTPUT
1шт.
8
529329R1
SPRING
DRIVEN GEAR POPPET
1шт.
9
17009R1
BALL
9/32 CR-STL.
2шт.
9
16009R1
BALL
9/32 CR-STL. - OPTIONAL -
2шт.
10
529322R21
HOUSING ASSY.
SIDE DRIVE P.T.O.
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
7шт.
11
164603C1
THUMB SCREW,3/8" - 16 x 5/8"
SELECTOR FORK SHAFT ARM ADJ.
1шт.
12
65772C1
SHAFT ASSY.
SELECTOR FORK - W/PRODUCT GRAPHIC
1шт.
13
355966R1
O-RING,0.424" ID x 0.103" Width
7/16 X 5/8 X 3/32
1шт.
15
19791
PIN 1/4 X 1-1/8 HV COILED SPRING
1шт.
16
529323R91
BEARING, NEEDLE
OUTPUT SHAFT
1шт.
17
67130C1
SPACER
IDLER GEAR
1шт.
18
529325R1
GEAR, IDLER
GEAR,IDLE SIDE DRIVE PTO -21T
1шт.
19
287057R91
BEARING, NEEDLE
IDLER GEAR
1шт.
19
531437R91
NEEDLE BEARING
IDLER GEAR - OPTIONAL -
1шт.
20
67129C1
SHAFT
SIDE DRIVE PTO IDLER GEAR
1шт.
21
528650R1
GASKET
SIDE DRIVE PTO HOUSING
1шт.
22
529331R1
FORK
ASSY, DRIVEN GEAR SELECTOR
1шт.
23
67132C1
GEAR
SIDE DRIVE PTO DRIVEN -44T-
1шт.
24
67133C1
BLOCK
SPARE PART SELECTOR FORK
2шт.
25
618573R1
PIN,1/4" x 2 1/4", Coiled
1/4" x 2 1/4", Coiled
1шт.
Выбрано товаров: 34
