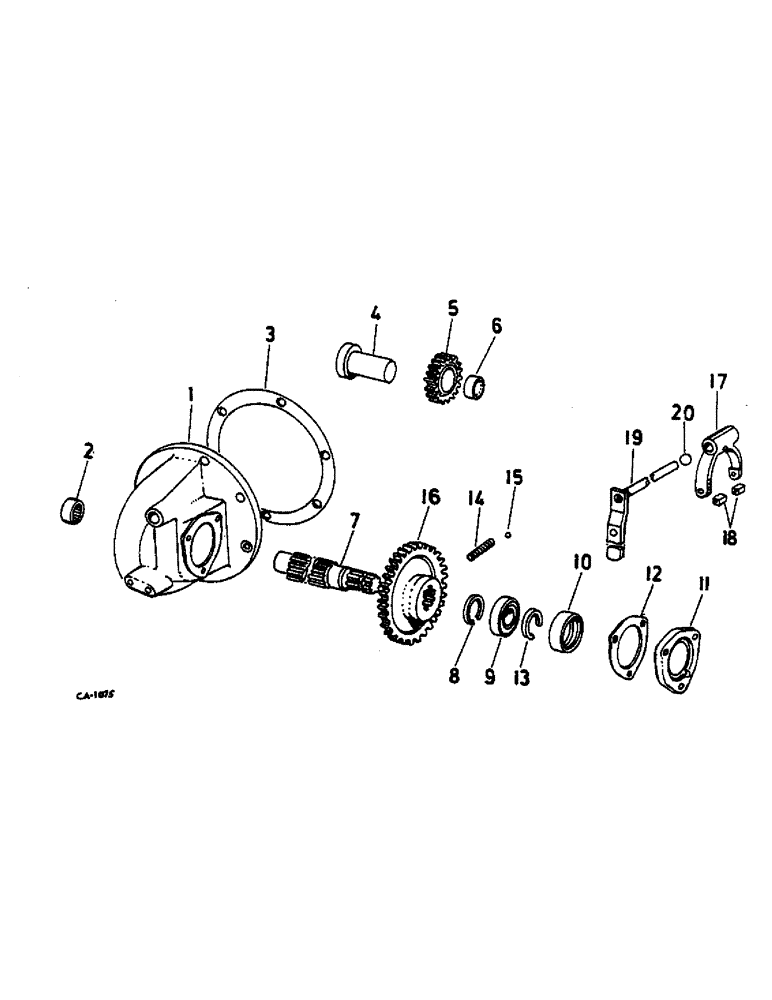

Запчасти Case IH 574 (07-054) - SIDE DRIVE POWER TAKE OFF, TRACTORS W/DUAL SPEED, IPTO (04) - Drive Train
№
Артикул
Название
Примечание
Количество
529321R91
ATTACHMENT SIDE DRIVE POWER TAKE-OFF, 574, Serial Range: -10036
1шт.
529321R91
ATTACHMENT SIDE DRIVE POWER TAKE-OFF, 2500, Serial Range: -00593
1шт.
1
529322R11
HOUSING
ASSY, SIDE DRIVE PTO
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
7шт.
2
529323R91
BEARING, NEEDLE
OUTPUT SHAFT
1шт.
3
528650R1
GASKET
SIDE DRIVE PTO HOUSING
1шт.
4
529324R1
SHAFT
SIDE DRIVE PTO IDLER GEAR
1шт.
618573R1
PIN,1/4" x 2 1/4", Coiled
1/4" x 2 1/4", Coiled
1шт.
5
529325R1
GEAR, IDLER
GEAR,IDLE SIDE DRIVE PTO -21T
1шт.
6
287057R91
BEARING, NEEDLE
IDLER GEAR, OPTIONAL
1шт.
6
531437R91
NEEDLE BEARING
IDLER GEAR, OPTIONAL
1шт.
7
529326R1
SPARE PART 1000 RPM OUTPUT
1шт.
8
573984R1
SNAP RING
SLIDING GEAR RETAINER
1шт.
9
ST247
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
OUTPUT SHAFT -OPTIONAL W/704770R91-
1шт.
9
704770R91
BALL BEARING
OUTPUT SHAFT -OPTIONAL W/ST247-
1шт.
10
534917R91
OIL SEAL
OUTPUT SHAFT OIL -OPTIONAL W/381480R91-
1шт.
10
381480R91
OIL SEAL
OUTPUT SHAFT OIL -OPTIONAL W/534917R91-
1шт.
11
529327R1
FLANGED BEARING
OUTPUT SHAFT BRG
1шт.
321316R1
SCREW
1/2-13 X 1-1/4 HEX-HD CAP
3шт.
12
529328R1
GASKET
OUTPUT SHAFT BRG RETAINER
1шт.
13
359141R1
RING, SNAP
RING SNAP OUTPUT SHAFT BRG RETAINER
1шт.
14
529329R1
SPRING
DRIVEN GEAR POPPET
1шт.
15
17009R1
BALL
9/32 CR-STL -OPTIONAL W/16009R1-
2шт.
15
16009R1
BALL
9/32 CR-STL -OPTIONAL W/17009R1-
2шт.
16
529330R1
GEAR
SPARE PART SIDE DRIVE PTO DRIVEN -44T
1шт.
17
529331R1
FORK
ASSY, DRIVEN GEAR SELECTOR
1шт.
18
318721R1
BLOCK
SELECTOR FORK
2шт.
19
65772C1
SHAFT ASSY.
ASSY, SELECTOR FORK
1шт.
65771C1
DECAL
PRODUCT-GRAPHIC CAUTION INSTRUCTION
1шт.
19791R1
PIN,1/4" x 1 1/8", Coiled
1/4" x 1 1/8", Coiled
1шт.
164603C1
THUMB SCREW,3/8" - 16 x 5/8"
SELECTOR FORK SHAFT ARM ADJ
1шт.
20
355966R1
O-RING,0.424" ID x 0.103" Width
7/16 X 5/8 X 3/32 SELECTOR FORK
1шт.
Выбрано товаров: 33
