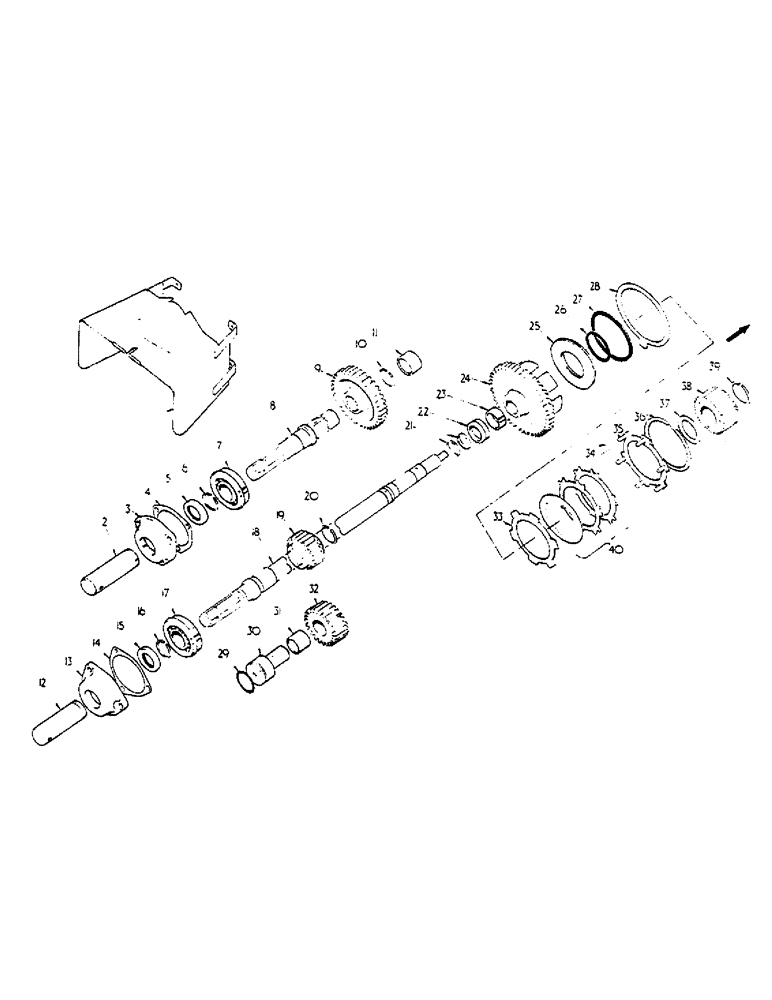

Запчасти Case IH 574 (07-052[A]) - IPTO, 614 AND 1004 RPM 6 SPLINE TOP SHAFT & 21 SPLINE BOTTOM STAFT W/ PROVISION FOR SIDE PTO (04) - Drive Train

1

401734R1

GUARD ASSY.

SHIELD ASSY, IPTO SAFETY

1шт.

1

528481R1

SHIELD

ASSY, IPTO SAFETY -TRACTORS W/HAND OPERATED DRUM BRAKE-

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

1шт.

3

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE IPTO SHAFT BRG

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

7

533615R1

BEARING

SHAFT BALL

1шт.

7

538962R1

BEARING SHAFT BALL -OPTIONAL-

1шт.

8

3113017R1

SHAFT

UPPER OUTPUT

1шт.

9

404237R1

PINION

GEAR, UPPER DRIVEN -36T-

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

SHAFT NEEDLE

1шт.

11

528103R91

BEARING, NEEDLE

SHAFT -OPTIONAL-

1шт.

12

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

1шт.

13

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE IPTO SHAFT BRG

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

14

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

16

607186R1

SNAP RING,#156, Ext

Brg

1шт.

17

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

17

533615R1

BEARING

SHAFT BALL

1шт.

17

538962R1

BEARING SHAFT BALL -OPTIONAL-

1шт.

18

66485C1

SHAFT ASSY.

1000 RPM 6 SPLINE

1шт.

18

66180C1

SHAFT

ASSY, 1000 RPM 21 SPLINE

1шт.

19

404233R1

PINION

GEAR, LOWER SHAFT DRIVE -22T-

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

21

166972R1

RING

SHAFT SEALING

2шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

23

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

LOWER SHAFT

1шт.

24

66068C1

GEAR

CLUTCH CUP -44T- -W/PROVISION FOR SIDE PTO

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

25

401722R1

PISTON

CLUTCH

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, PISTON SEAL -INNER-

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

RING, PISTON SEAL -OUTER-

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

30

401726R1

SHAFT

IPTO IDLER

1шт.

31

570450R1

BEARING

IDLER SHAFT NEEDLE

1шт.

31

528105R91

BEARING, NEEDLE

IDLER SHAFT -OPTIONAL-

1шт.

32

401727R1

PINION

GEAR, IDLER -24T-

1шт.

33

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

34

66182C1

SPRING

PISTON RETURN

6шт.

35

66186C91

PLATE ASSY.

CLUTCH BACKING

1шт.

20020R1

DOWEL,5/16" x 1"

5/16 X 1 DOWEL

6шт.

36

401720R1

CIRCLIP

BACKING PLATE

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

40

66193C91

PACKAGE

PACKAGE, CLUTCH PLATE -SERVICE- -CONSISTS OF

1шт.

DISC

5шт.

PLATE

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

66182C1

SPRING

6шт.

1092812R1

PRODUCT GRAPHIC

IPTO SPEED -SYNCHROMESH DRIVE TRACTORS-

1шт.

1092807R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED WARNING -SYNCHROMESH DRIVE TRACTORS-

1шт.

1092813R1

SPARE PART IPTO SPEED -HYDROSTATIC DRIVE TRACTORS-

1шт.
