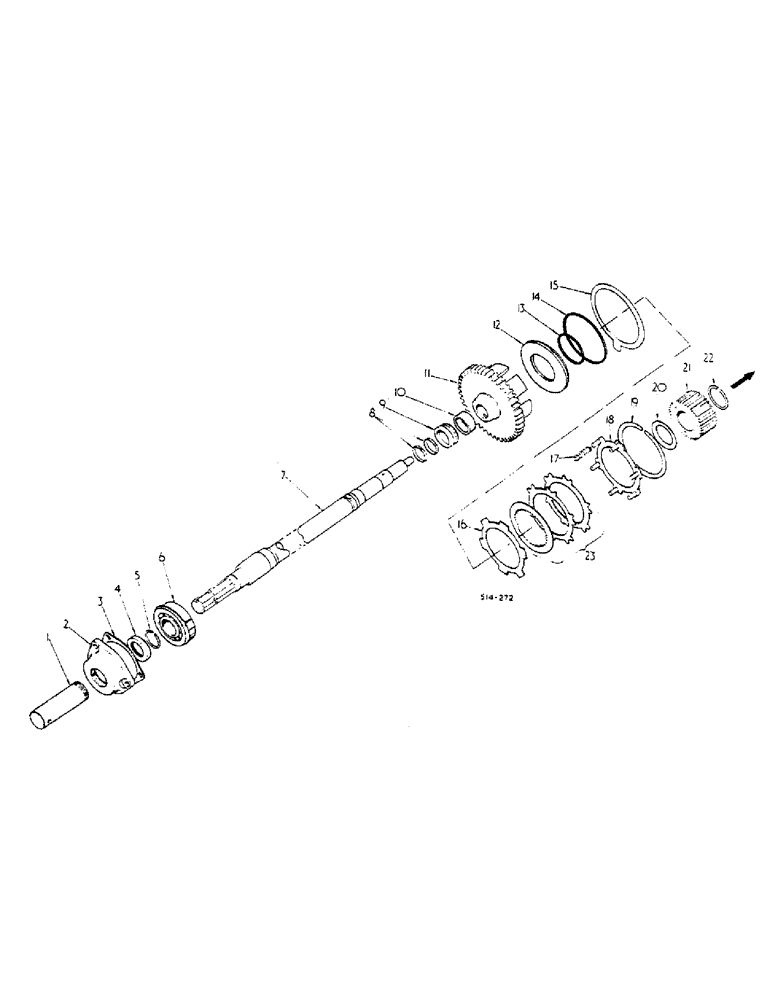

Запчасти Case IH 574 (07-050) - IPTO, SINGLE SPEED, 1050 RPM LOWER OUTPUT SHAFT FOR AIR COMPRESSOR W/PROVISION FOR SIDE PTO (04) - Drive Train

1

406808R1

TUBE

ASSY, IPTO SHAFT PROTECTION

1шт.

INDEPENDENT POWER TAKE OFF - BELT PULLEY DRIVE FOR USE W/ BELT PULLEY ATTACHMENT

1шт.

2

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE, IPTO SHAFT BRG

1шт.

INDEPENDENT POWER TAKE OFF - BELT PULLEY DRIVE FOR USE W/ BELT PULLEY ATTACHMENT

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

3

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

4

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

INDEPENDENT POWER TAKE OFF - BELT PULLEY DRIVE FOR USE W/ BELT PULLEY ATTACHMENT

1шт.

5

607186R1

SNAP RING,#156, Ext

Brg

1шт.

6

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT, OPTIONAL

1шт.

6

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT, OPTIONAL

1шт.

6

533615R91

BALL BEARING

SHAFT, OPTIONAL

1шт.

6

538962R91

BALL BEARING

SHAFT, OPTIONAL

1шт.

7

66458C1

SHAFT ASSY.

COMPRESSOR DRIVE

1шт.

7

66180C1

SHAFT

ASSY, BELT PULLEY DRIVE

1шт.

INDEPENDENT POWER TAKE OFF - BELT PULLEY DRIVE FOR USE W/ BELT PULLEY ATTACHMENT

1шт.

8

166972R1

RING

SHAFT SEALING

2шт.

9

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

10

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

1004 RPM SHAFT

1шт.

11

66068C1

GEAR

CLUTCH CUP -44T- -W/PROVISION FOR SIDE PTO

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

12

401722R1

PISTON

CLUTCH

1шт.

13

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, PISTON SEAL -INNER-

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

RING, PISTON SEAL -OUTER-

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

16

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

17

66182C1

SPRING

PISTON RETURN

6шт.

18

66186C91

PLATE ASSY.

CLUTCH BACKING

1шт.

20020R1

DOWEL,5/16" x 1"

5/16 X 1 DOWEL

6шт.

19

401720R1

CIRCLIP

BACKING PLATE

1шт.

20

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

21

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

22

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

23

66193C91

PACKAGE

IPTO CLUTCH PLATE -SERVICE- -CONSISTS OF

1шт.

DISC

5шт.

PLATE

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

66182C1

SPRING

6шт.

1092811R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED -SYNCHROMESH DRIVE TRACTORS-, NOT ILLUSTRATED

1шт.

1092807R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED WARNING -SYNCHROMESH DRIVE TRACTORS-, NOT ILLUSTRATED

1шт.

INDEPENDENT POWER TAKE OFF - BELT PULLEY DRIVE FOR USE W/ BELT PULLEY ATTACHMENT

1шт.

1092808R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED -HYDROSTATIC DRIVE TRACTORS-, NOT ILLUSTRATED

1шт.
