Запчасти Case IH 574 (07-048) - INDEPENDENT POWER TAKE-OFF, SINGLE SPEED, 614 RPM UPPER OUTPUT SHAFT (04) - Drive Train

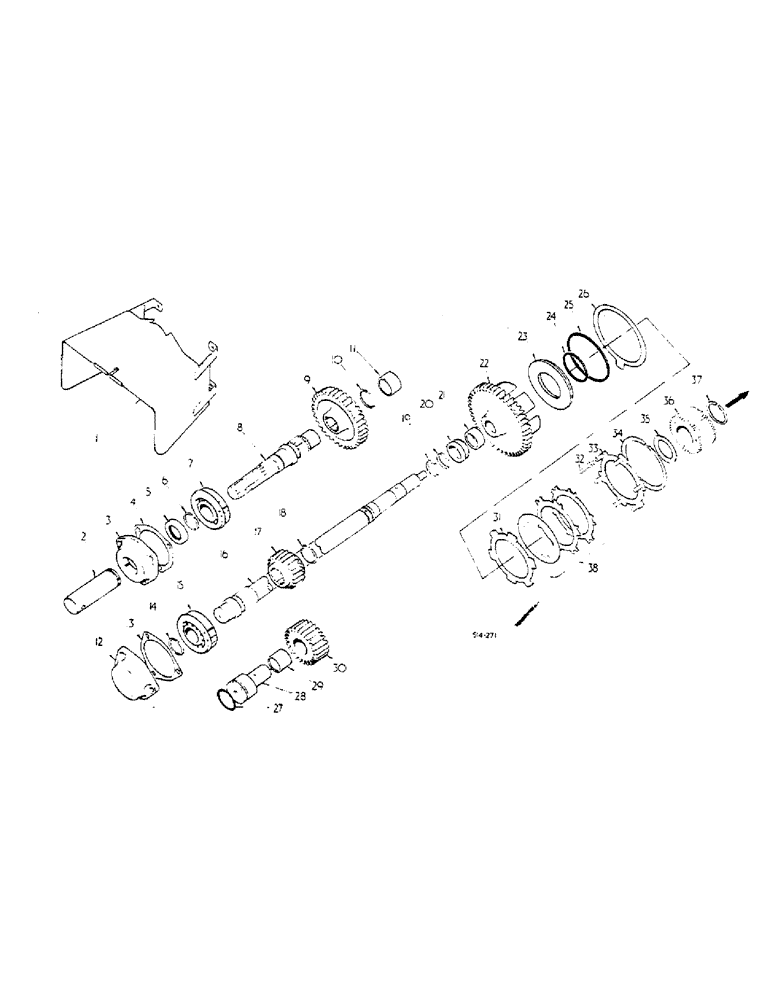

Схема запчастей Case IH 574 - (07-048) - INDEPENDENT POWER TAKE-OFF, SINGLE SPEED, 614 RPM UPPER OUTPUT SHAFT (04) - Drive Train
14
13
6
36
38
28
35
16
18
11
34
33
20
27
17
2
22
26
15
10
8
3
29
19
32
25
4
23
31
30
7
5
24
9
37
1
12
21

Артикул

Название

Примечание

Количество

1

401734R1

GUARD ASSY.

SHIELD ASSY, IPTO SAFETY

1шт.

1

526481R1

SHIELD ASSY, IPTO SAFETY -TRACTORS W/HAND OPERATED DRUM BRAKE-

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

406808R1

TUBE

ASSY, IPTO SHAFT PROTECTION

1шт.

3

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE, IPTO SHAFT BRG

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT, OPTIONAL

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT, OPTIONAL

1шт.

7

533615R1

BEARING

SHAFT, OPTIONAL

1шт.

7

538962R91

BALL BEARING

SHAFT, OPTIONAL

1шт.

8

3113017R1

SHAFT

UPPER OUTPUT

1шт.

9

404237R1

PINION

GEAR, DRIVEN -36T-

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

614 RPM SHAFT NEEDLE

1шт.

11

528103R91

BEARING, NEEDLE

614 RPM SHAFT -OPTIONAL-

1шт.

12

66191C1

FLANGED BEARING

IPTO BRG END

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

13

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

14

607186R1

SNAP RING,#156, Ext

Brg

1шт.

15

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

15

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

15

533615R1

BEARING

SHAFT BALL

1шт.

15

538962R1

BEARING SHAFT BALL -OPTIONAL-

1шт.

16

66189C1

SHAFT ASSY.

IPTO DRIVING

1шт.

17

404233R1

PINION

GEAR, LOWER SHAFT DRIVE -22T-

1шт.

18

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

19

166972R1

RING

SHAFT SEALING

2шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

21

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

SHAFT

1шт.

22

66068C1

GEAR

CLUTCH CUP -44T- -W/PROVISION FOR SIDE PTO.

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

23

401722R1

PISTON

CLUTCH

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, PISTON SEAL - INNER

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

RING, PISTON SEAL -OUTER-

1шт.

26

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

28

401726R1

SHAFT

IPTO IDLER

1шт.

29

570450R1

BEARING

IDLER SHAFT NEEDLE

1шт.

29

528105R91

BEARING, NEEDLE

IDLER SHAFT -OPTIONAL-

1шт.

30

401727R1

PINION

GEAR, IDLER -24T-

1шт.

31

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

32

66182C1

SPRING

PISTON RETURN

6шт.

33

66186C91

PLATE ASSY.

CLUTCH BACKING

1шт.

20020R1

DOWEL,5/16" x 1"

5/16 X 7/8 DOWEL

6шт.

34

401720R1

CIRCLIP

BACKING PLATE

1шт.

35

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

36

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

37

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

38

66193C91

PACKAGE

CLUTCH PLATE -SERVICE- -CONSISTS OF

1шт.

DISC

5шт.

PLATE

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

66182C1

SPRING

6шт.

1092846R1

PRODUCT GRAPHIC

IPTO SPEED -SYNCHROMESH DRIVE TRACTORS-, NOT ILLUSTRATED

1шт.

1092848R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED -HYDROSTATIC DRIVE TRACTORS-, NOT ILLUSTRATED

1шт.

Выбрано товаров: 59
