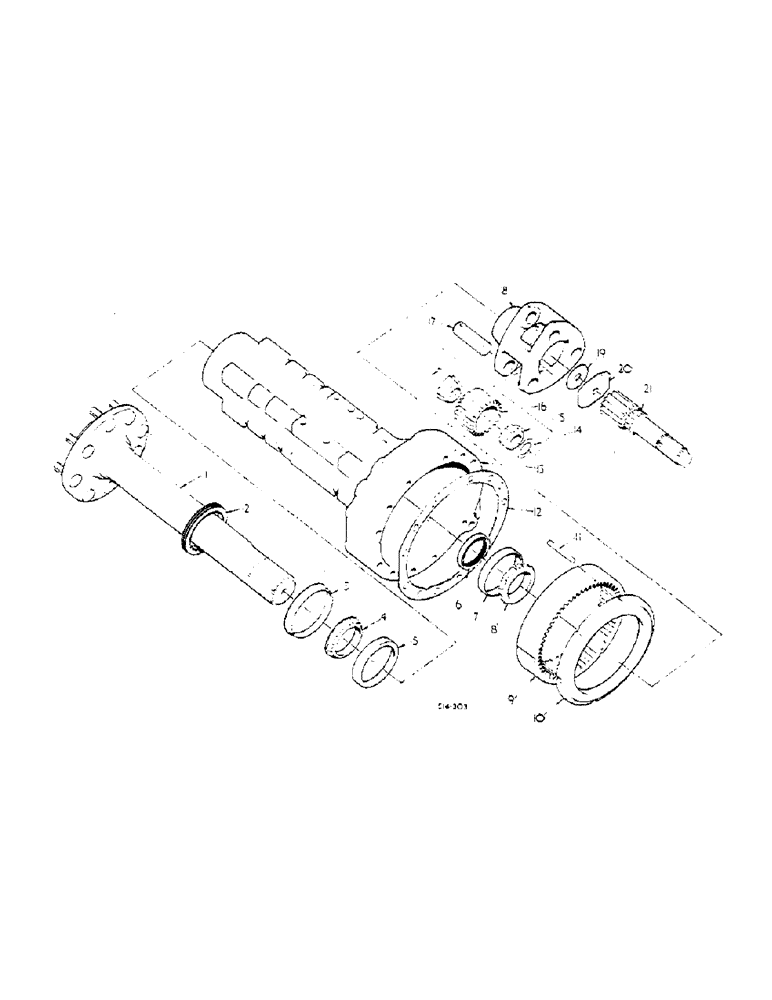

Запчасти Case IH 574 (07-042) - REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

404345R13

HALF SHAFT

AXLE ASSY, REAR

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, REAR WHEEL

16шт.

3047575R2

NUT,Wheel, 5/8"-18

NUT, REAR WHEEL

16шт.

1

528441R11

SPARE PART

AXLE ASSY, REAR -TRACTORS W/HAND OPERATED DRUM BRAKE

2шт.

528440R1

BOLT

BOLT, REAR WHEEL

16шт.

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

SCREW 5/16-18 X 1 SLT-F-HD MACH

4шт.

2

399794R91

SEAL

SEAL, REAR AXLE OUTER OIL -OPTIONAL W/530105R93-

2шт.

2

530105R1

SEAL

SEAL, REAR AXLE OUTER OIL -OPTIONAL W/399794R91-

2шт.

3

399796R1

SLEEVE

SLEEVE, WEAR

2шт.

4

383970R91

BEARING ASSY,3.0635" ID x 4.7822" OD x 0.6875, 0.9688"

BEARING ASSY, REAR AXLE OUTER CONE -OPTIONAL W/383971R91-

2шт.

4

383971R91

BEARING CONE

BEARING ASSY, REAR AXLE OUTER CONE -OPTIONAL W/383970R91-

2шт.

5

572901R1

BEARING, CUP,121.4552 mm OD x 24.7091 mm

BEARING, REAR AXLE OUTER CUP -OPTIONAL W/588266R1-

2шт.

5

588266R1

BEARING CUP

BEARING, REAR AXLE OUTER CUP -OPTIONAL W/572901R1-

2шт.

6

399798R91

OIL SEAL

SEAL, REAR AXLE INNER OIL -OPTIONAL W/530102R91-

2шт.

6

530102R91

OIL SEAL

SEAL, REAR AXLE INNER OIL -OPTIONAL W/399798R91-

2шт.

7

972466R1

BEARING CUP,112.7252 mm OD x 25.5016 mm

BEARING, REAR AXLE INNER CUP -OPTIONAL W/379379R1-

2шт.

7

379379R1

BEARING CUP

BEARING, REAR AXLE INNER CUP -OPTIONAL W/972466R1

2шт.

8

972465R91

BEARING ASSY,69.8565 mm ID x 25.311 mm

BEARING ASSY, REAR AXLE INNER CONE -OPTIONAL W/399800R91-

2шт.

8

399800R91

BEARING ASSY

BEARING ASSY, REAR AXLE INNER CONE -OPTIONAL W/972465R91-

2шт.

9

535317R1

GEAR, RING

RING, GEAR GEAR, RING 66T

2шт.

10

399760R1

RING

RING, BRAKE OUTER DISC

2шт.

11

529686R1

DOWEL

PIN DOWEL

6шт.

12

399762R1

GASKET

GASKET, REAR AXLE CARRIER

2шт.

13

399801R1

AXLE CARRIER

CARRIER, REAR AXLE LH

1шт.

13

528444R1

AXLE CARRIER

CARRIER, REAR AXLE LH -TRACTORS W/HAND OPERATED DRUM BRAKE-

1шт.

13

399803R1

AXLE CARRIER

CARRIER, REAR AXLE RH

1шт.

13

528445R1

AXLE CARRIER

CARRIER, REAR AXLE RH -TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW 5/8-11 X 4-1/4 HEX-HD CAP, Course Threads

22шт.

14

65421C1

SHIM KIT

PACKAGE, PLANET GEAR SHIM SERVICE

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, PLANET GEAR CONE

12шт.

16

66128C1

PLANETARY GEAR

GEAR PLANET -25T

6шт.

17

399812R1

SHAFT

PIN, PLANET SHAFT

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

404344R2

GEAR

CARRIER, PLANET GEAR

2шт.

19

65422C1

SHIM KIT

PACKAGE, REAR AXLE RETAINER SHIM

1шт.

20

399748R1

SPACER

SPACER, PLANET CARRIER RET

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

SCREW 5/8-18 X 1-1/2 HEX-HD CAP

2шт.

21

404343R1

SHAFT

SHAFT, PLANETARY DRIVE RH

1шт.

21

404342R1

SHAFT

SHAFT, PLANETARY DRIVE LH

1шт.
