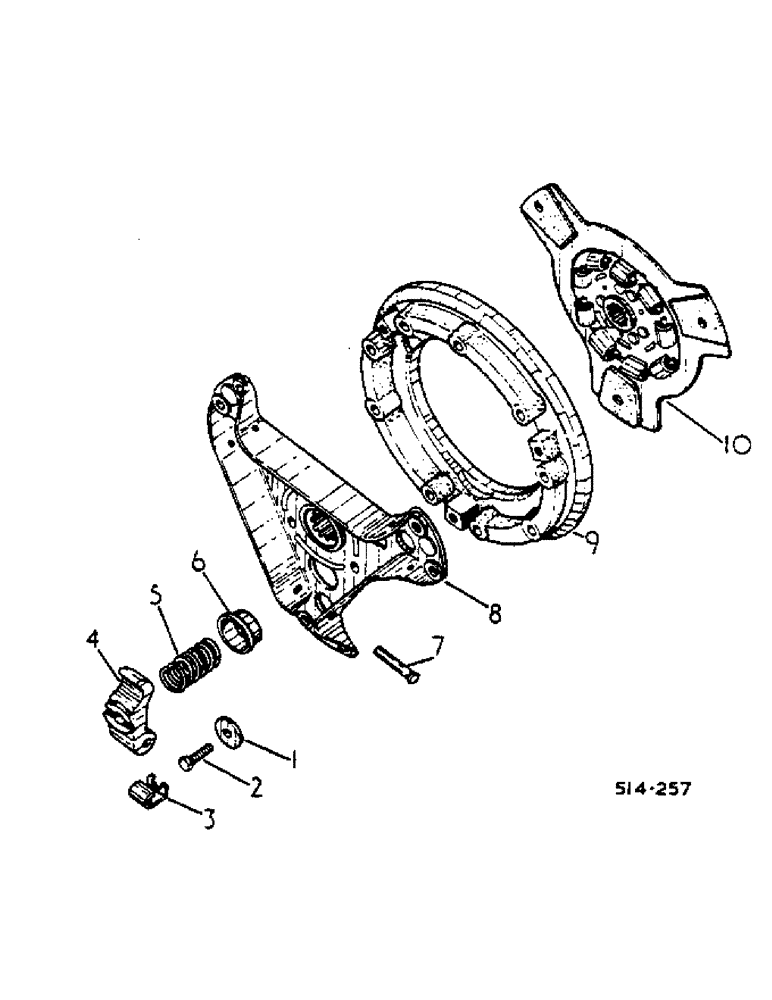

Запчасти Case IH 574 (07-032) - CLUTCH (04) - Drive Train

70716C1

COVER ASSY

CLUTCH PRESSURE PLATE -CONSISTS OF REF NOS 1-9-

1шт.

68211C91

COVER

ASSY, CLUTCH PRESSURE PLATE -CONSISTS OF REF NOS 1-9 -ORDER COVER ASSY 70716C1-

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

WASHER

3шт.

2

69911C1

KIT

COVER PARTS W/SCREW, CLIP, NUT AND WASHER

1шт.

*

NUT 5/16-24 HEX

3шт.

3

CLIP, RETURN

3шт.

4

69912C1

KIT

LEVER AND PIVOT PIN

1шт.

5

69910C2

KIT

PRESSURE SPRING AND CUP

1шт.

6

CUP, SPRING

3шт.

7

PIN, PIVOT

3шт.

8

69914C1

HUB ASSY.

KIT, BRACKET AND HUB

1шт.

9

69913C1

KIT

PRESSURE PLATE

1шт.

10

401479R93

DRIVEN PLATE

ASSY, CLUTCH DISC -3 DISC-

1шт.

10

401479R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 11 in., 10Tooth hub, 3 paddle

1шт.

10

401479R93C

CORE-CLUTCH DISC

Return Number

1шт.
