Запчасти Case IH 574 (07-030) - CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

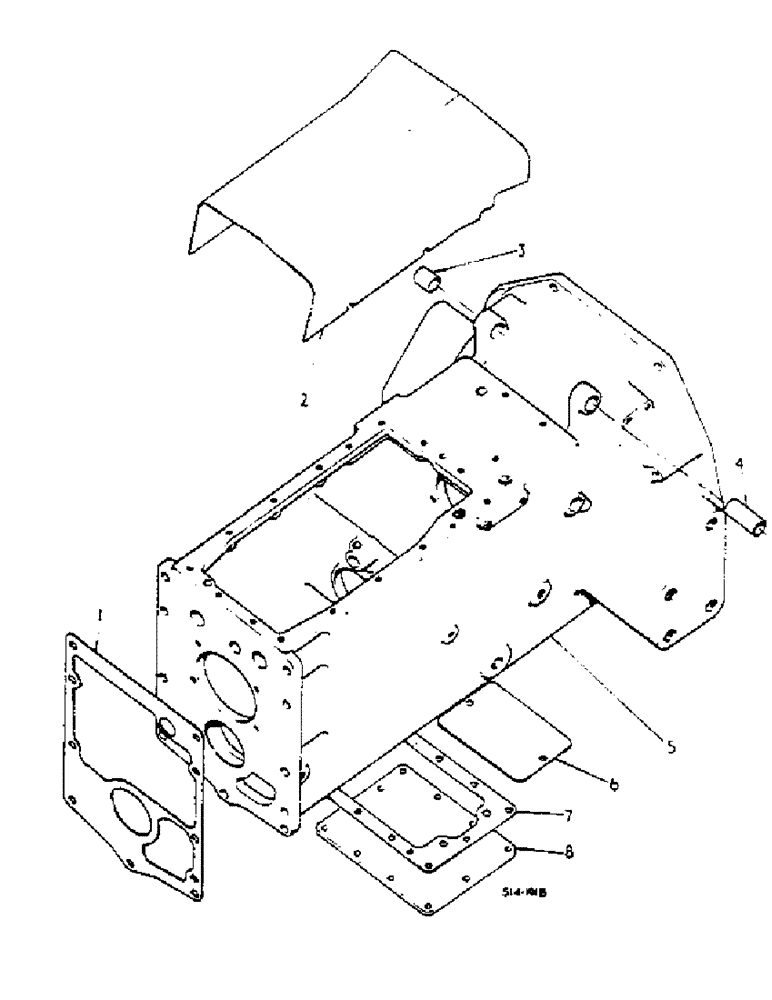

Схема запчастей Case IH 574 - (07-030) - CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train
7
3
5
4
1
8
2
6

Артикул

Название

Примечание

Количество

1

399814R3

GASKET

CLUTCH HOUSING TO REAR FRAME

1шт.

2

66290C1

COVER

ASSY CLUTCH HOUSING

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

1/4-20 x 3/8 C-Z SLT-PAN-HD MACH

4шт.

3

539245R1

BUSHING

CLUTCH AND BRAKE SHAFT

1шт.

4

537099R1

NO LONGER SERVICED

BUSHING, LH BRAKE PEDAL PIVOT

1шт.

4

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

LH BRAKE PEDAL PIVOT -OPTIONAL-

1шт.

5

537097R93

CLUTCH HOUSING

ASSY, CLUTCH -ALSO INCLUDES BEARING 399820R91 OR 527746R91 IN SPEED TRANSMISSION-

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2-13 X 1-1/2 HEX HD CAP TO REAR

9шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 HEX-HD CAP THRU SPACER

2шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

Thru pan

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

3113103R1

PLUG

3/4-14 AUTOMOTIVE HEX HD PIPE

1шт.

327411R1

PLUG,Cup, 5/8"

5/8 CUP

1шт.

19962R1

DOWEL,3/8" x 3/4"

1шт.

20556R1

DOWEL,1/2" x 3/4"

1шт.

19904R1

DOWEL,1/2" x 1"

2шт.

9410359

PLUG

3/4-16 STR THD O-RING BOSS

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

6

399817R1

COVER

CLUTCH COMPARTMENT

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

7

402556R2

GASKET

CLUTCH HOUSING BOTTOM REAR COVER

1шт.

8

402182R1

COVER

CLUTCH HOUSING BOTTOM REAR

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

11шт.

Выбрано товаров: 23
