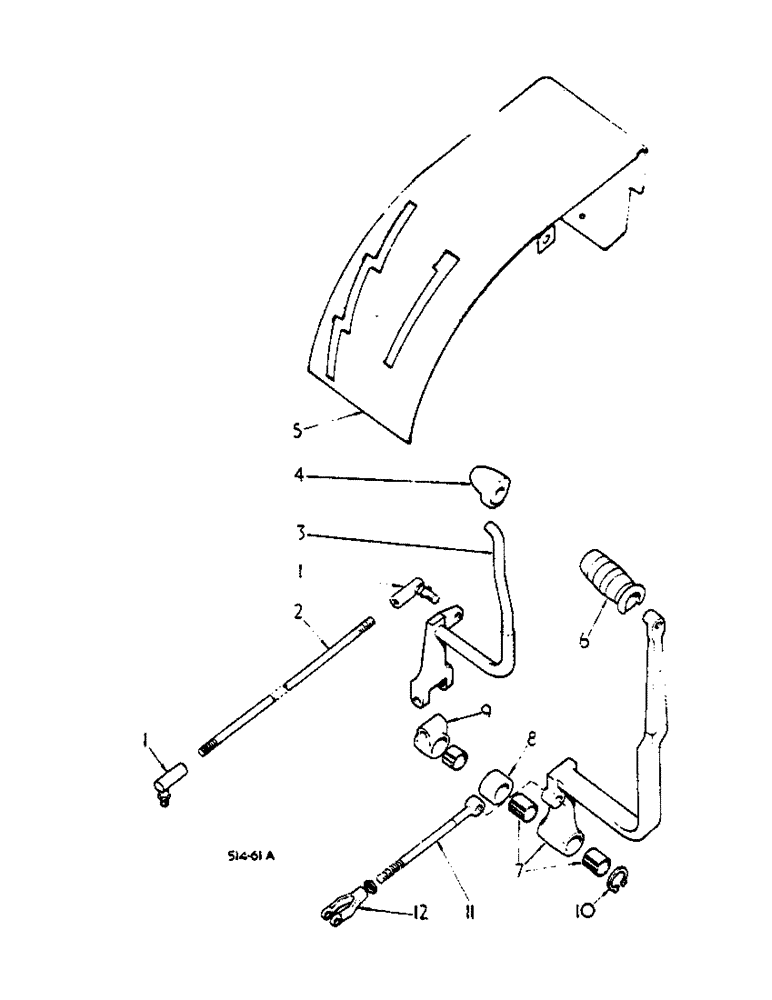

Запчасти Case IH 574 (07-022) - TRANSMISSION CONTROLS, FORWARD AND REVERSE (04) - Drive Train

1

537469R1

SWING JOINT

3/8-24 X 1-11/32 -OPTIONAL W/392594R1-

2шт.

1

392594R1

END ASSY.

3/8-24 X 1-11/32 -OPTIONAL W/537469R1

2шт.

2

528122R1

ROD

SPEED SHIFT LEVER

1шт.

3

530532R1

LEVER

ASSY, SPEED SHIFT

1шт.

4

379022R2

KNOB

SPEED SHIFT LEVER

1шт.

5

534258R2

HOUSING ASSY.

TRANSMISSION SHIFT

1шт.

6

528138R1

HANDLE

LEVER

1шт.

426372

HEX SOC SCREW,3/8" - 16 x 2 3/4"

3/8-16 X 2-3/4 ZN SOC-HD CAP

1шт.

7

530536R1

LEVER

SPARE PART ASSY, RANGE SHIFT

1шт.

539245R1

BUSHING

RANGE SHIFT LEVER

2шт.

8

534260R1

SPACER

RANGE SHIFT LEVER

1шт.

9

530932R1

HUB ASSY.

TRANSMISSION SHIFT HAND LEVER

1шт.

615192R1

WASHER

29/32 X 1-1/4 X .0299

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

10

454331R1

SNAP RING,#87, Ext

Shift lever

1шт.

11

528789R1

ROD

ASSY, RANGE SHIFT REAR

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

3/8 X 1-11/32 ROD END

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

12

161003C1

NO LONGER SERVICED

CLEVIS CLEVIS, 3/8-24 X 2-1/4 ROD END -OPTIONAL W/161536

1шт.

12

213-316

ADJUSTABLE CLEVIS,3/8" - 24

3/8-24 X 2-3/16 ROD END -OPTIONAL W/161003C1

1шт.

74158H

CLEVIS PIN,3/8" x 1.344"

3/8 X 1-11/32 ROD END

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.
