Запчасти Case IH 574 (07-013) - PUMP SERVO CYLINDER (04) - Drive Train

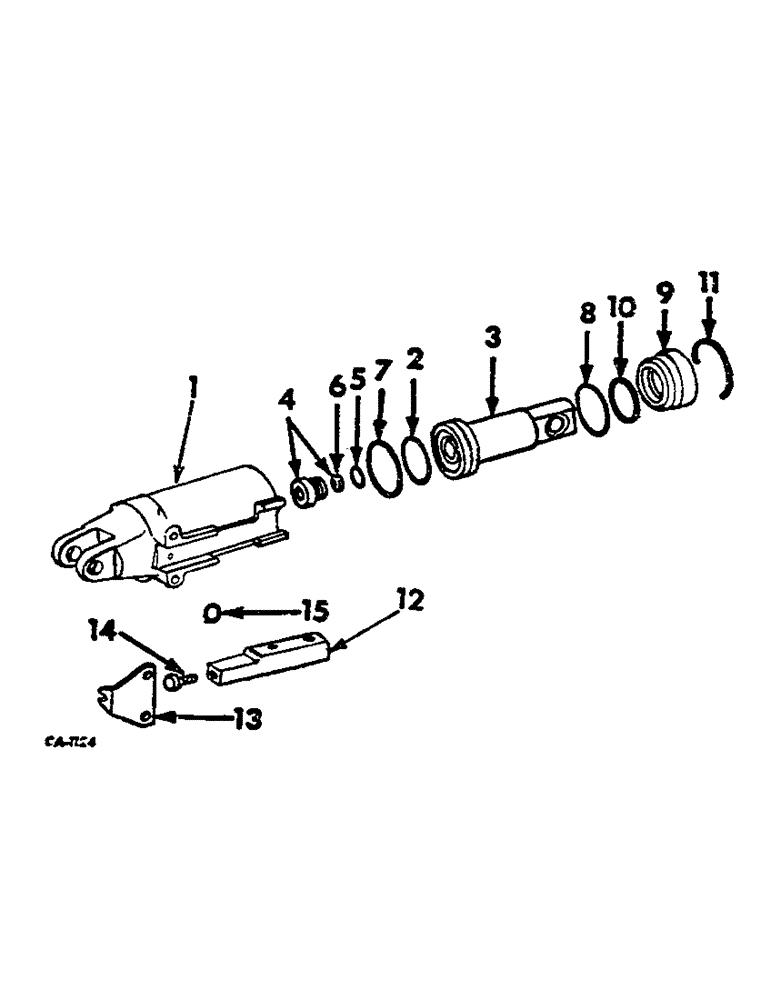

Схема запчастей Case IH 574 - (07-013) - PUMP SERVO CYLINDER (04) - Drive Train
5
2
14
9
3
4
10
1
7
8
13
11
6
12
15

Артикул

Название

Примечание

Количество

1

401079R1

BODY

1шт.

2

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1-3/8 X 1-9/16 X 3/32

1шт.

3

401080R1

PISTON

1шт.

4

401082R11

PLUG

ASSY, FIXED ORIFICE

1шт.

4

535851R11

PLUG

ASSY -INDUSTRIAL MODEL-

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

6

529960R1

STRAINER ELEMENT

1шт.

7

405311R1

RING

PISTON SEALING

1шт.

8

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 X 1-13/16 X 3/32

1шт.

9

401084R1

GUIDE

1шт.

10

405310R1

RING

GUIDE SEALING INNER

1шт.

347070R1

O-RING,1.301" ID x 0.07" Width

1-5/16 X 1-7/16 X 1/16

1шт.

11

388968R1

ELECTRICAL WIRE

WIRE RETAINING

1шт.

12

401086R1

BLOCK

1шт.

12

401086R11

NO LONGER SERVICED

BLOCK ASSY, VARIABLE ORIFICE ADJ -INDUSTRIAL MODELS-

1шт.

20154R1

DOWEL,5/16" x 7/8"

PIN 5/16 X 7/8

1шт.

13

401087R1

BRACKET

ADJ BLOCK

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

2шт.

14

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

ADJ BLOCK

1шт.

15

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

401088R91

STRIPPER PACKAGE

PUMP SERVO CYLINDER O-RING AND SEAL SERVICE

1шт.

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1шт.

405311R1

RING

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

405310R1

RING

1шт.

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1шт.

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

396109R1

RING

1шт.

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

166438R1

SLEEVE

1шт.

347070R1

O-RING,1.301" ID x 0.07" Width

1шт.

Выбрано товаров: 31
