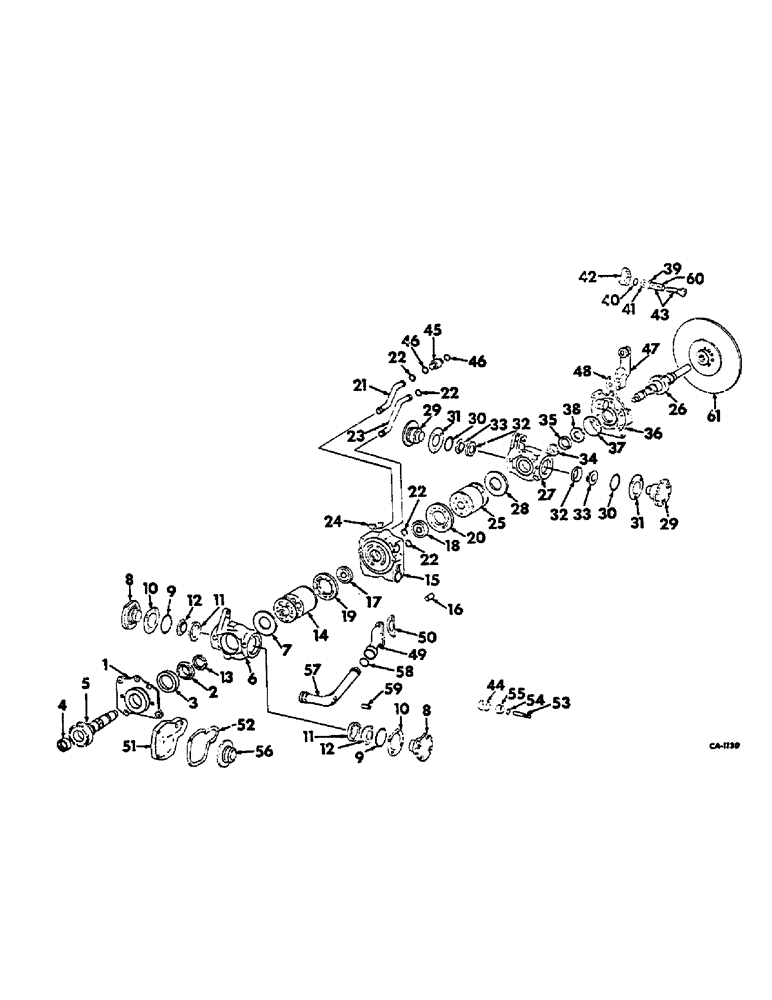

Запчасти Case IH 574 (07-006) - HYDRO DRIVE SHAFTS, MOTOR ASSYS, CENTER SECTION (04) - Drive Train

1

400958R1

BEARING HOUSING,2.65" ID x 4.374" OD

REAR BRG

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

2

400960R91

ROLLER BEARING,1.7505" ID x 3.4375" OD x 1.1875, 0.9375"

ASSY, OUTPUT SHAFT REAR

1шт.

3

PL14039

BEARING, OUTPUT SHAFT CUP

1шт.

4

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

OUTPUT SHAFT NEEDLE, 574, Start Serial: 9815

1шт.

4

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

OUTPUT SHAFT NEEDLE, 2500, Start Serial: 594

1шт.

4

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

OUTPUT SHAFT NEEDLE, 574/9814, Serial Range: -9814

1шт.

4

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

OUTPUT SHAFT NEEDLE, 2500, Serial Range: -593

1шт.

5

65259C1

SHAFT

SPARE PART OUTPUT, 574, Start Serial: 9815

1шт.

5

65259C1

SHAFT

SPARE PART OUTPUT, 2500, Start Serial: 594

1шт.

66014C1

SNAP RING

OUTPUT SHAFT BRG INT

1шт.

5

400951R2

SHAFT, OUTPUT, 574, Serial Range: -9814

1шт.

5

400951R2

SHAFT, OUTPUT, 2500, Serial Range: -593

1шт.

6

400963R1

HOUSING

SPARE PART MOTOR SWASH PLATE

1шт.

7

400965R1

THRUST PLATE

1шт.

8

400966R1

TRUNNION

MOTOR

2шт.

9

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 X 3 X 3/32

2шт.

297330R1

BOLT

SCREW, HEX-HD W/NYLON INSERT

8шт.

10

400967R91

SHIM KIT

PACKAGE, MOTOR TRUNNION SERVICE -CONSISTS OF

2шт.

400968R1

SHIM .005

1шт.

400969R1

SHIM .007

1шт.

54

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 OD tube, Valve shut-off bolt

1шт.

400970R1

SHIM .020

1шт.

11

62923R91

ROLLER BEARING

ASSY, MOTOR TRUNNION CONE

2шт.

12

130503H

BEARING CUP

MOTOR TRUNNION

2шт.

13

400971R1

RING, SNAP

RING SNAP BEARING RETAINING .136

1шт.

13

400972R1

RING, SNAP

RING SNAP BEARING RETAINING .141

1шт.

13

400973R1

RING, SNAP

RING SNAP BEARING RETAINING .146

1шт.

13

400974R1

RING, SNAP

RING SNAP BEARING RETAINING .151

1шт.

13

400975R1

RING, SNAP

RING SNAP BEARING RETAINING .156

1шт.

13

400976R1

RING, SNAP

RING SNAP BEARING RETAINING .163

1шт.

13

400977R1

RING, SNAP

RING SNAP BEARING RETAINING .166

1шт.

13

400978R1

RING, SNAP

RING SNAP BEARING RETAINING .171

1шт.

13

400979R1

RING, SNAP

RING SNAP BEARING RETAINING .176

1шт.

13

400980R1

RING, SNAP

RING SNAP BEARING RETAINING .181

1шт.

13

400981R1

RING, SNAP

RING SNAP BEARING RETAINING .186

1шт.

14

KIT, MOTOR CYLINDER BLOCK -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF MOTOR CYLINDER BLOCK-

1шт.

15

BODY ASSY, CENTRE SECTION W/VALVES -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF CENTER SECTION BODY-

1шт.

400986R1

BOLT,Hex, 1/2" - 13 x 1.62"

1/2-13 X 1-5/16 HEX HD CAP

2шт.

16

394825R1

DOWEL

PIN, CENTER SECTION

2шт.

17

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

ASSY, OUTPUT SHAFT FRONT

1шт.

530741R1

BEARING CUP

OUTPUT SHAFT FRONT CUP

1шт.

18

400990R91

ROLLER BEARING,0.75" ID x 2.125" OD x 0.775"

ASSY, INPUT SHAFT REAR

1шт.

537188R1

ROLLER BEARING,0.75" ID x 2.125" OD x 0.875"

INPUT SHAFT REAR CONE

1шт.

19

530773R1

PLATE

MOTOR VALVE

1шт.

20

530766R1

PLATE

PUMP VALVE RH

1шт.

21

400994R1

TUBE ASSY.

CENTER SECTION CHARGE

1шт.

22

384943R1

O-RING,0.739" ID x 0.07" Width

4шт.

23

400998R1

TUBE ASSY.

CENTER SECTION EXHAUST

1шт.

24

401000R1

STRIP

CENTER SECTION PIPE RETAINER

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

1шт.

25

KIT, PUMP CYLINDER BLOCK -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF PUMP CYLINDER BLOCK-

1шт.

26

401009R1

SHAFT

INPUT

1шт.

27

401011R1

HOUSING

PUMP SWASH PLATE

1шт.

28

596335R1

THRUST PLATE

1шт.

29

401012R1

TRUNNION

PUMP

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

30

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

O-RING 2-5/16 X 2-1/2 X 3/32

2шт.

31

401018R91

SHIM KIT

PACKAGE, PUMP TRUNNION SHIM SERVICE -CONSISTS OF

2шт.

401013R1

SHIM .005

1шт.

401014R1

SHIM .007

1шт.

401015R1

SHIM .020

1шт.

32

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

ASSY, PUMP TRUNNION

2шт.

33

527486R1

BEARING, CUP

PUMP TRUNNION CUP

2шт.

34

459454R91

ROLLER BEARING,1.563" ID x 1.01"

ASSY, INPUT SHAFT FRONT

1шт.

35

567849R1

BEARING CUP,1.5625" ID x 3" OD x 1.01"

INPUT SHAFT FRONT CUP

1шт.

36

401020R91

PUMP

TRANSMISSION CHARGE -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF TRANSMISSION CHARGE PUMP-

1шт.

297330R1

BOLT

SCREW 3/8-16 X 1 HEX-HD NYLOK

5шт.

37

343943R1

O-RING,6.234" ID x 0.139" Width

6-1/4 X 6-1/2 X 1/8

1шт.

38

401021R91

SHIM KIT

PACKAGE, INPUT SHAFT FRONT BEARING SHIM -CONSISTS OF

1шт.

401022R1

SHIM .005

1шт.

401023R1

SHIM .007

1шт.

401024R1

SHIM .020

1шт.

39

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE

1шт.

40

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 X 3/4 X 1/16

1шт.

41

388591R1

RING

VALVE HOUSING SEALING

1шт.

42

405194R1

HOUSING

SERVO REGULATOR VALVE

1шт.

43

529486R91

VALVE

ASSY, PRESSURE REGULATOR

1шт.

44

396100R1

STRAINER ELEMENT

SCREEN, REGULATOR VALVE

1шт.

45

401026R1

TUBE

CHARGE JUMPER

1шт.

46

384943R1

O-RING,0.739" ID x 0.07" Width

Charge Jumper Tube

2шт.

47

401027R1

MANIFOLD

CHARGE PUMP

1шт.

48

401028R1

GASKET

CHARGE PUMP MANIFOLD

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8-16 X 3-3/4 HEX-HD CAP

2шт.

565832R1

WASHER

13/32 X 5/8 X .049 COPPER

4шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

49

401032R1

ELBOW

SUCTION PIPE

1шт.

50

401033R1

GASKET

SUCTION PIPE ELBOW

1шт.

51

401069R1

COVER

FILTER

1шт.

52

401070R1

GASKET

FILTER COVER

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

53

401071R1

BOLT,Hex, 1/2" - 20 x 2 3/4"

VALVE SHUT OFF

1шт.

55

401072R1

VALVE

ASSY, FILTER SHUT OFF

1шт.

56

386121R92

VALVE

FILTER BY-PASS

1шт.

57

401074R1

TUBE ASSY.

SPARE PART SUCTION

1шт.

277677R1

LOCK SCREW

W/NYLON PELLET INSERT

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

58

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 X 1-7/8 X 1/8

2шт.

59

401077R1

BUSHING

SUCTION PIPE SUPPORT

1шт.

60

529487R1

STRAINER ELEMENT

REGULATOR VALVE

1шт.

61

404078R91

PLATE ASSY.

DRIVE

1шт.

324711R1

BOLT

SCREW W/NYLON PELLET INSERT

6шт.

103320

LOCK WASHER,5/16"

6шт.

ref

Part No.

English Remarks

1шт.

65126C91

FILTER, ELEMENT

ELEMENT, FILTER PACKAGE, SERVICE, NOT ILLUSTRATED

1шт.
