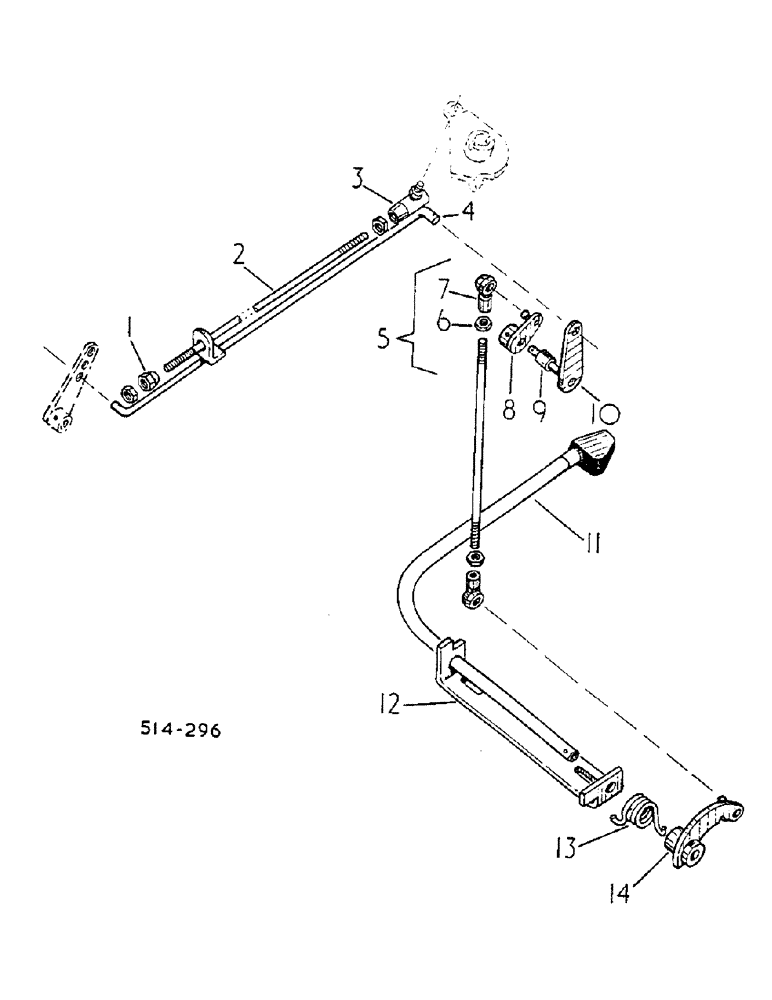

Запчасти Case IH 574 (12-112A) - FOOT ACCELERATOR, - 475, 574, 674, & 2500 MACHINES - Power

1

528776R1

NUT

FOOT ACCELERATOR PICK-UP ROD SWIVEL

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 HEX JAM

1шт.

2

528775R1

ROD

FOOT ACCELERATOR PICK-UP

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-18 HEX JAM

1шт.

3

531713R1

BALL JOINT

JOINT, 1/4-28 BALL

1шт.

3

109400

STEERING KNUCKLE

JOINT, 1/4-28 BALL

1шт.

3

19318R1

BALL JOINT

JOINT, 1/4-28 BALL - OPTIONAL -

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 HEX JAM

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

528767R1

ROD ASSY.

ROD ASSY, BELLCRANK

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 COTTER

2шт.

5

3116194R91

ROD

ASSY, CONNECTING - MACHINES FITTED W/ISO MOUNTED CAB -

1шт.

5

532106R3

ROD

ASSY, CONNECTING - MACHINES NOT FITTED W/ISO MOUNTED CAB -

1шт.

6

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

7

3068537R1

TRUNNION

END, CONNECTING ROD

2шт.

8

3118439R1

LEVER

ASSY, BELLCRANK - MACHINES FITTED W/ISO MOUNTED CAB -

1шт.

8

532104R1

LEVER ASSY.

LEVER ASSY, BELLCRANK INNER - MACHINES NOT FITTED W/ISO MOUNTED CAB -

1шт.

9

754603R1

SPACER

1шт.

10

3116192R1

ARM

ASSY, BELLCRANK - MACHINES FITTED W/ISO MOUNTED CAB -

1шт.

10

532100R1

ARM

ASSY, BELLCRANK - MACHINES NOT FITTED W/ISO MOUNTED CAB -

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

2шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

11

3116188R1

PEDAL

ASSY, FOOT ACCELERATOR - MACHINES FITTED W/ISO MOUNTED CAB -

1шт.

11

532096R2

PEDAL ASSY.

PEDAL ASSY, FOOT ACCELERATOR - MACHINES NOT FITTED W/ISO MOUNTED CAB -

1шт.

12

3116190R1

SUPPORT

ASSY, FOOT ACCELERATOR PEDAL

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 HEX

2шт.

102214

WASHER

5/16 LOCK

2шт.

95-11034

WASHER,1/4"

5/16

2шт.

878986R1

SPACER,1/4" Pipe x 5/8"

- MACHINES FITTED W/ISO MOUNTED CAB -

2шт.

12

532093R4

SUPPORT ASSY.

SUPPORT ASSY, FOOT ACCELERATOR PEDAL

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

425-115

NUT,5/16"-24, G5

5/16-24 HEX - MACHINES NOT FITTED W/ISO MOUNTED CAB -

2шт.

13

532099R1

SPRING

FOOT ACCELERATOR PEDAL RETURN

1шт.

14

532102R1

LEVER ASSY.

LEVER ASSY, BELLCRANK OUTER

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.
