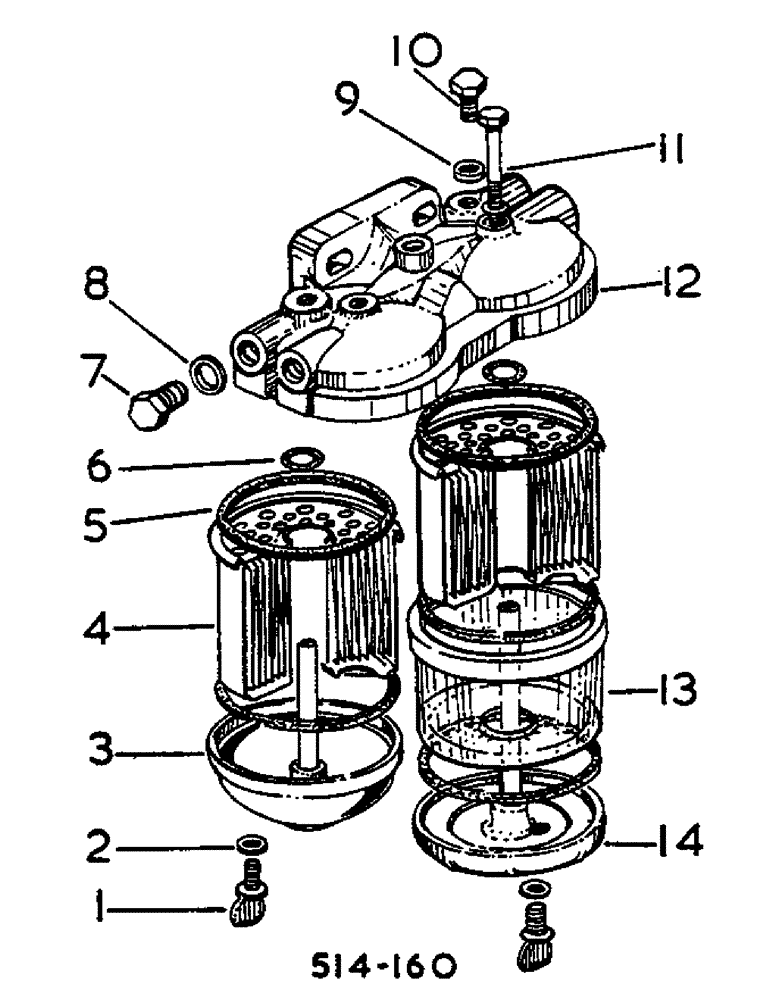

Запчасти Case IH 574 (12-053) - TWIN FUEL FILTER, C.A.V INJECTION Power

3138816R92

NO LONGER SERVICED

FILTER ASSY, TWIN FUEL

1шт.

1

3072558R1

PLUG

DRAIN

2шт.

2

3072559R1

WASHER

SEAL, DRAIN PLUG

2шт.

3

3078691R1

BASE, ASSY, W/STUD

1шт.

4

3044506R92

ELEMENT

FILTER

2шт.

5

3105001R1

SEAL

COVER AND BASE

5шт.

6

3044505R1

SEAL

ELEMENT

2шт.

7

3078689R1

PLUG

CLOSING

1шт.

8

3078690R1

SEALING WASHER

SEAL, CLOSING PLUG

1шт.

9

3049111R1

SEALING WASHER

SEAL, VENT PLUG

1шт.

10

3070770R1

PLUG

VENT

1шт.

11

3070771R2

BOLT

CENTRE

2шт.

3144668R1

SEALING WASHER

2шт.

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

12

3078687R2

HEAD

FILTER

1шт.

ON ORDERS FOR HEAD 3078687R1 FURNISH R2 W.TWO O RING 796020R1 AND TWO WASHER 3144668R1.

1шт.

13

3069610R1

BOWL

TRANSPARENT

1шт.

14

3078688R1

BASE ASSY, W/STUD

1шт.

ref

Part No.

English

1шт.

3044504R1

WASHER

SEAL -USED W/CENTRE BOLT 3070771R1-, NOT ILLUSTRATED

1шт.
