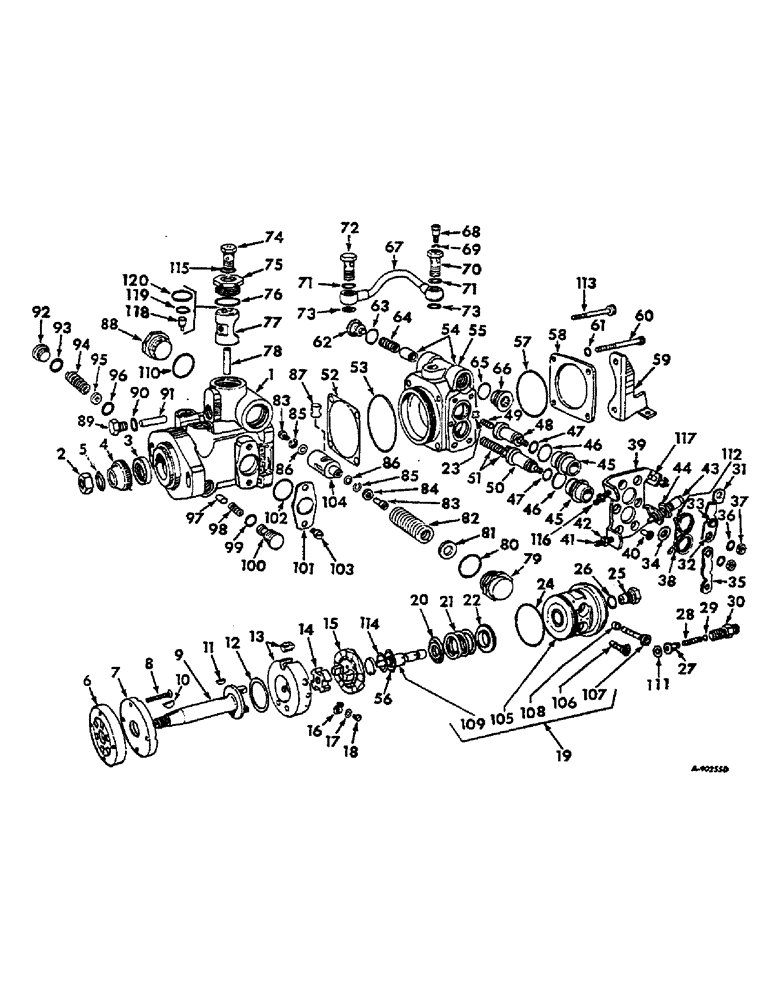

Запчасти Case IH 574 (12-047) - FUEL INJECTION PUMP Power

3136323R92

FUEL INJECTION PUMP

ASSY, BOSCH TYPE EP/VA4/100H1100BR12-6- -SYNCHROMESH DRIVE TRACTORS-

1шт.

3138686R91

FUEL INJECTION PUMP

ASSY, BOSCH TYPE EP/VA4/100H1200BR12 -HYDROSTATIC DRIVE TRACTORS-

1шт.

1

3136259R91

HOUSING

W/TIMING ADV. PISTON, PUMP

1шт.

2

933981R1

NUT,M12 x 1.75, Cl 5

Drive shaft

1шт.

3

3078355R1

SEAL

OIL

1шт.

4

-NOT USED-

1шт.

5

933996R1

LOCK WASHER,M12

1/2 MED LOCK

1шт.

6

3059003R91

PUMP

ROTOR ASSY, CHARGING

1шт.

7

3059004R1

SUPPORT

RING, RETAINER

1шт.

8

3132364R1

SCREW

SPARE PART RETAINER SUPPORT RING

4шт.

9

3059001R1

SHAFT

DRIVE

1шт.

10

3078371R1

WOODRUFF KEY

DRIVE SHAFT FRONT

1шт.

11

3132395R1

KEY

CHARGING PUMP WOODRUFF

1шт.

12

3059006R1

WASHER

DRIVE SHAFT THRUST

1шт.

13

3078346R91

RETAINER

RING ASSY, ROLLER

1шт.

14

3059007R1

DISC

COUPLING, DRIVE SHAFT FLEXIBLE

1шт.

15

3059008R2

CAM

FACE

1шт.

16

3132598R1

INDICATOR

TIMING

1шт.

17

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

TIMING POINTER

1шт.

18

933326R1

WASHER

SCREW, TIMING POINTER

1шт.

19

3132963R1

SPARE PART W/PLUGER AND CONTROL PISTON -USED W/PUMP 3138686R91-

1шт.

19

3136089R91

HEAD

ASSY, DISTRIBUTOR -USED W/PUMP 3136323R92-

1шт.

20

3136092R1

SEAT

PLUNGER RETURN SPRING FRONT .197

1шт.

20

3136093R1

SEAT

PLUNGER RETURN SPRING FRONT .205

1шт.

20

3136094R1

CUP

SEAT, PLUNGER RETURN SPRING FRONT .213

1шт.

20

3136095R1

SEAT

PLUNGER RETURN SPRING FRONT .220

1шт.

20

3136096R1

SEAT

SPARE PART PLUNGER RETURN SPRING FRONT .228

1шт.

20

3136097R1

SEAT

PLUNGER RETURN SPRING FRONT .236

1шт.

21

3132257R1

SPRING

PLUNGER RETURN

1шт.

22

3136098R1

SEAT

PLUNGER RETURN SPRING GEAR

1шт.

23

3132584R1

DISC

1шт.

24

3078361R1

O-RING

RING, PACKING DISTRIBUTOR HEAD

1шт.

25

3059063R2

PLUG

PUMP PLUNGER

1шт.

26

3132407R1

O-RING

O-RING, PUMP PLUNGER PLUG

1шт.

27

3136357R1

VALVE

ASSY, DELIVERY -USED W/PUMP 3136323R92-

4шт.

27

3136356R1

VALVE

ASSY, DELIVERY -USED W/PUMP 3138686R91-

4шт.

28

3132408R1

SPRING

DELIVERY VALVE

4шт.

29

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

DELIVERY VALVE SPRING

4шт.

30

3059067R1

HOLDER

DELIVERY VALVE

4шт.

31

3132590R1

LEVER

SPEED CONTROL -OPTIONAL W/3132591R1-

1шт.

31

3132591R1

LEVER

SPEED CONTROL -OPTIONAL W/3132590R1-

1шт.

32

-NOT USED-

1шт.

33

-NOT USED-

1шт.

34

3059076R1

WASHER

SPACER, SHUT-OFF CONTROL

1шт.

35

3059077R1

LEVER

SHUT-OFF CONTROL -OPTIONAL W/3059078R1-

1шт.

35

3059078R1

LEVER

SHUT-OFF CONTROL -OPTIONAL W/3059077R1-

1шт.

36

933987R1

LOCK WASHER,M6

1/4 MED

2шт.

37

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

SHUT-OFF CONTROL LOCK

2шт.

38

3132589R1

SPRING

CONTROL PLUNGER TORSION

1шт.

39

3136110R1

PLATE

STOP -OPTIONAL W/3059073R1-

1шт.

39

3059073R1

SPARE PART STOP -OPTIONAL W/3136110R1-

1шт.

40

931320R1

SCREW,M6 x 12mm, Cl 8.8

STOP PLATE

6шт.

41

3059074R1

SCREW

STOP PLATE ADJUSTING

1шт.

42

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

HEX PLATE ADJUSTING SCREW

3шт.

43

3132251R1

STOP LOCK

STOP, SHUT-OFF CONTROL PLUNGER

1шт.

44

3059096R1

NUT

SHUT-OFF CONTROL PLUNGER STOP

1шт.

45

3059072R1

BUSHING

CONTROL SHAFT

1шт.

45

3132587R1

BUSHING

SPEED CONTROL SHAFT

1шт.

46

785602R1

O-RING

CONTROL PLUNGER AND THROTTLE SHAFT BUSHING

2шт.

47

3078363R1

O-RING

CONTROL PLUNGER SHAFT

1шт.

47

3078354R1

O-RING,2mm Thk x 6.5mm ID

THROTTLE SHAFT

1шт.

48

3132583R1

SHAFT

ASSY, SPEED CONTROL

1шт.

49

3132256R1

VALVE SPRING

SPEED CONTROL SHAFT

1шт.

50

3132260R2

SHAFT

ASSY, SHUT-OFF CONTROL PLUNGER

1шт.

51

3132586R1

SPRING

SPARE PART SHUT-OFF CONTROL SHAFT

1шт.

52

3132377R1

SHIM

PUMP AND INTERMEDIATE HSG .009

1шт.

52

3132378R1

SHIM

PUMP AND INTERMEDIATE HSG .011

1шт.

52

3059040R1

SHIM

PUMP AND INTERMEDIATE HSG .008

1шт.

52

3059041R1

SHIM

PUMP AND INTERMEDIATE HSG .010

1шт.

52

3059042R1

DISC

SHIM, PUMP AND INTERMEDIATE HSG .012

1шт.

52

3059043R1

SHIM

PUMP AND INTERMEDIATE HSG .020

1шт.

52

3059044R1

SHIM

PUMP AND INTERMEDIATE HSG .024

1шт.

52

3059045R1

SHIM

PUMP AND INTERMEDIATE HSG .039

1шт.

53

3078360R1

RING

PACKING

1шт.

54

3132402R1

HOUSING

W/ACCUMULATOR PISTON, INTERMEDIATE

1шт.

55

NSS

NOT SOLD SEPARAT

ORDER 3132402R1

1шт.

56

3132091R1

WASHER, INJECTION PUMP PLUNGER THRUST

1шт.

57

3078364R1

O-RING

RING, PACKING INTERMEDIATE HSG PLATE

1шт.

58

3059083R1

SPARE PART INTERMEDIATE HOUSING

1шт.

59

3059084R1

BRACKET

SHUT-OFF CABLE SUPPORT

1шт.

60

931325R1

HEX SOC SCREW,M6 x 75mm, Cl 10.9

INTERMEDIATE HSG MTG 2.953

2шт.

61

933987R1

LOCK WASHER,M6

1/4 MED

4шт.

62

3136107R1

PLUG

ACCUMULATOR SPRING

1шт.

63

785602R1

O-RING

1шт.

64

3132277R1

SPRING

ACCUMULATOR

1шт.

65

785602R1

O-RING

1шт.

66

3059052R1

PLUG

ACCUMULATOR PISTON

1шт.

67

3059085R91

TUBE

FUEL SUPPLY

1шт.

68

3132383R1

SCREW

BLEEDER

1шт.

69

933696R1

SEALING RING,M6 x 10 x 1

1шт.

70

3136149R1

SCREW

BOLT, BLEEDER SCREW

1шт.

71

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

72

3059086R1

BANJO BOLT

BOLT, FUEL SUPPLY TUBE

1шт.

73

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

74

3132412R1

VALVE

FUEL RETURN

1шт.

75

3059014R1

UNION

SPARE PART CONNECTOR, FUEL RETURN VALVE

1шт.

76

3078356R1

O-RING

UNION ADAPTOR ADVANCE HSG

1шт.

77

3132400R1

BOLT

MEMBER, TIMING ADVANCE ROTATING -USED W/PUMP 3138686R91-

1шт.

77

3132960R1

PIN

ADJUSTING -USED W/PUMP 3136323R92-

1шт.

78

3059010R1

PIN

TIMING ADJ. CONNECTING - SHORT

1шт.

79

3136087R1

PLUG

ADVANCE PISTON SPRING -USED W/PUMP 3138686R91-

1шт.

79

3136131R1

PLUG

ADVANCE HOUSING -USED W/PUMP 3136323R92-

1шт.

80

3078357R1

O-RING

SPARE PART

1шт.

81

3136111R1

WASHER

SHIM .039

1шт.

81

790783R1

WASHER

SHIM .020

1шт.

82

3136085R1

SPRING

ADVANCE PISTON

1шт.

83

931110R1

SCREW,Slot Cheese , M5 x 0.8 x 8mm, Cl 4.8

SPARE PART ADVANCE PISTON STOP

2шт.

84

-NOT USED-

1шт.

85

106498

LOCK WASHER,#12

2шт.

86

3132290R91

PACKAGE

SPARE PART SHIM SERVICE, CONSISTS OF

1шт.

3059016R1

SHIM

.008, USE AS REQUIRED

2шт.

3059017R1

SPARE PART SHIM .012, USE AS REQUIRED

2шт.

3059018R1

SHIM

.020, USE AS REQUIRED

2шт.

3059019R1

SHIM

.039, USE AS REQUIRED

1шт.

87

3132259R1

SLIDE

ADVANCE PISTON -USED W/PUMP 3138686R91-

1шт.

88

3059020R1

PLUG

ADVANCE PISTON

1шт.

89

3132578R1

PLUG

ADVANCE LINKAGE

1шт.

90

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

Packing, Plug Advance Hsg

1шт.

91

3132576R1

PIN

TIMING ADVANCE CONNECTION - LONG -USED W/PUMP 3138686R91-

1шт.

91

3132961R1

PIN

CONNECTING CONTROL BOLT -USED W/PUMP 3136323R92-

1шт.

92

3059038R1

PLUG

SPARE PART REGULATOR VALVE SPRING

1шт.

93

3078358R1

O-RING

1шт.

94

3132280R1

SPRING

REGULATOR VALVE

1шт.

95

3132246R1

STOP

REGULATOR PISTON

1шт.

96

3078359R1

O-RING

BUSHING REGULATOR VALVE

1шт.

97

3059026R1

SPARE PART REGULATOR VALVE .348

1шт.

97

3059027R1

SPARE PART REGULATOR VALVE .350

1шт.

97

3059028R1

SPARE PART REGULATOR VALVE .352

1шт.

97

3059029R1

SPARE PART REGULATOR VALVE .354

1шт.

97

3059030R1

SPARE PART REGULATOR VALVE .356

1шт.

97

3059031R1

SPARE PART REGULATOR VALVE .358

1шт.

97

3059032R1

SPARE PART REGULATOR VALVE .360

1шт.

97

3059033R1

SPARE PART REGULATOR VALVE .362

1шт.

97

3059034R1

PISTON

REGULATOR VALVE .364

1шт.

97

3132366R1

PISTON

REGULATOR VALVE .342

1шт.

97

3132367R1

PISTON

REGULATOR VALVE .344

1шт.

97

3132368R1

PISTON

SPARE PART REGULATOR VALVE .347

1шт.

97

3132369R1

PISTON

REGULATOR VALVE .366

1шт.

97

3132370R1

SPARE PART REGULATOR VALVE .368

1шт.

97

3132371R1

PISTON

REGULATOR VALVE .370

1шт.

97

3132372R1

PISTON

REGULATOR VALVE .372

1шт.

97

3132373R1

PISTON

REGULATOR VALVE .374

1шт.

97

3132374R1

PISTON

REGULATOR VALVE .376

1шт.

97

3132375R1

PISTON

REGULATOR VALVE .378

1шт.

98

3132255R1

SPRING

REGULATOR PISTON

1шт.

99

3078358R1

O-RING

1шт.

100

3059099R91

VALVE

ASSY, CHARGING PUMP REGULATOR

1шт.

101

3059091R91

SPARE PART TIMING WINDOW

1шт.

102

3054854R1

O-RING,2mm Thk x 20mm ID, 70 Duro

1шт.

103

931327R1

BOLT,M6 x 10mm, Cl 8.8

SCREW, TIMING WINDOW COVER

2шт.

104

NSS

NOT SOLD SEPARAT

ORDER 3136259R91-

1шт.

105

NSS

NOT SOLD SEPARAT

ORDER REF NO 19-

1шт.

106

NSS

NOT SOLD SEPARAT

ORDER REF NO 19-

1шт.

107

NSS

NOT SOLD SEPARAT

ORDER REF NO 19-

1шт.

108

NSS

NOT SOLD SEPARAT

ORDER REF NO 19-

1шт.

109

NSS

NOT SOLD SEPARAT

ORDER REF NO 19-

1шт.

110

3078357R1

O-RING

SPARE PART PLUG ADVANCE HSG

1шт.

111

3078362R1

SEALING WASHER

DELIVERY VALVE

1шт.

112

3132588R1

SPRING

SPEED CONTROL TORSION -USED W/PUMP 3136323R92-

1шт.

113

931324

SCREW, INTERMEDIATE HSG MTG 2.756

2шт.

114

3136090R1

SPACER

INJECTION PLUNGER

1шт.

115

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

116

3132885R1

BOLT

STOP

1шт.

116

3136136R1

SCREW

STOP

1шт.

117

3132885R1

BOLT

STOP

1шт.

118

3132883R1

PLUG

PIN, DOG POINT ADVANCE PISTON

1шт.

119

3132884R1

WASHER

ADVANCE PISTON

1шт.

120

933845R1

RING,M20, Int

RETAINING LOCK ADVANCE PISTON

1шт.

3059093R91

SEAL

SET, EXTERIOR -CONSISTS OF REF NOS 24, 26, 63, 65, 69, 71, 73, 76, 80, 90, 93, 99, 102, 110, 111 AND 115-, NOT ILLUSTRATED

1шт.

3059094R93

GASKET KIT

SET, INTERIOR -CONSISTS OF REF NOS 3, 46, 47, 53, 57 AND 96-, NOT ILLUSTRATED

1шт.
