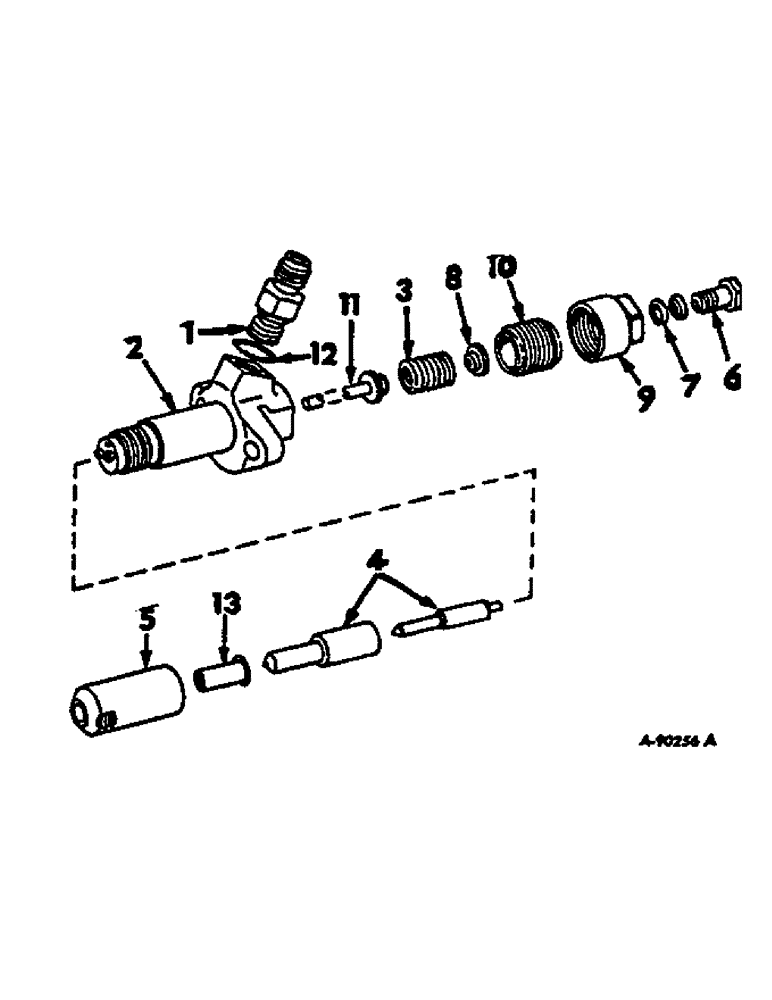

Запчасти Case IH 574 (12-044) - INJECTION NOZZLE, BOSCH INJECTION Power

3055423R93

HOLDER

ASSY, INJECTION NOZZLE

4шт.

735253C91

REMAN-FUEL INJECTOR

4шт.

1934195C1

CORE-FUEL INJECTOR

Return Number

4шт.

3055298R92

NOZZLE HOLDER

-LESS REF NO 4-

4шт.

1

3056940R91

UNION

CONNECTOR ASSY, FUEL INLET

1шт.

2

BODY, INJECTION NOZZLE HOLDER -NOT SERVICED SEPARATELY, ORDER HOLDER ASSY 3055423R93-

1шт.

3

759844R1

SPRING

1шт.

4

3055428R92

FUEL SYSTEM INJECTOR

NOZZLE

1шт.

5

3136042R1

NUT, NOZZLE CAP

1шт.

6

3132999R1

HOLLOW SCREW

HOLLOW

1шт.

7

3053133R1

SEALING RING,M8 x 11.5 x 1

PACKING

2шт.

8

787049R1

CUP

SEAT, SPRING

1шт.

9

3056943R1

CROWN NUT

NOZZLE HOLDER CAP

1шт.

10

3132998R1

SCREW

CAP, SPRING

1шт.

11

3056939R91

SPINDLE

W/GUIDE

1шт.

12

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

WASHER, FUEL INLET CONNECTION

1шт.

13

-NOT USED-

1шт.

425-115

NUT,5/16"-24, G5

Injection Nozzle Holder, Not Illustrated

8шт.
