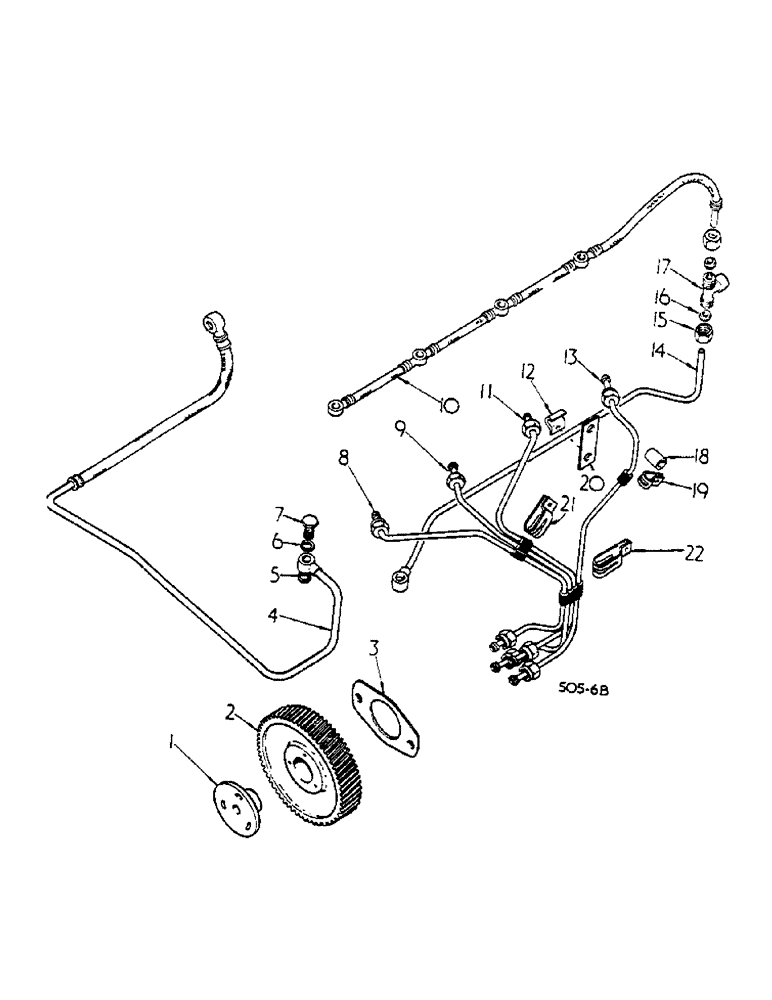

Запчасти Case IH 574 (12-042) - FUEL INJECTION PUMP AND CONNECTIONS, BOSCH INJECTION Power

1

3055067R1

HUB

INJECTION PUMP GEAR

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

8.5 X 19 S 2.5MM

3шт.

2

3056885R3

PINION

GEAR, INJECTION PUMP

1шт.

3

3055384R1

GASKET

FUEL INJECTION PUMP

1шт.

4

3136077R2

FUEL HOSE

FILTER TO INJECTION PUMP

1шт.

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

HOLLOW

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

2шт.

3132052R1

CLIP

FUEL LINE

2шт.

5

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

6

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

1шт.

7

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

HOLLOW

1шт.

8

3144237R91

TUBE

ASSY, INJECTION CYLINDER 1 - BOSCH INJECTION C.R. PUMP, HYDROSTATIC, Start Serial: 105487

1шт.

8

3144237R91

TUBE

ASSY, INJECTION CYLINDER 1 - BOSCH INJECTION C.R. PUMP, SYNCHROMESH, Start Serial: 069908

1шт.

8

3132164R11

PIPE

ASSY, INJECTION CYLINDER 1

1шт.

9

3144215R1

PIPE ASSY, INJECTION CYLINDER 2 - BOSCH INJECTION C.R. PUMP, HYDROSTATIC, Start Serial: 105487

1шт.

9

3132165R11

PIPE

PIPE ASSY, INJECTION CYLINDER 2 - BOSCH INJECTION C.R. PUMP, SYNCHROMESH, Start Serial: 069908

1шт.

10

3055606R1

TUBE

LEAK

1шт.

11

3144217R1

PIPE ASSY, INJECTION CYLINDER 3 - BOSCH INJECTION C.R. PUMP, HYDROSTATIC, Start Serial: 105487

1шт.

11

3144217R1

PIPE ASSY, INJECTION CYLINDER 3 - BOSCH INJECTION C.R. PUMP, SYNCHROMESH, Start Serial: 069908

1шт.

11

3132166R11

PIPE

ASSY, INJECTION CYLINDER 3

1шт.

12

3055386R1

CLAMP

CLIP, FUEL LINE

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

13

3144219R91

TUBE

ASSY, INJECTION CYLINDER 4 - BOSCH INJECTION C.R. PUMP, HYDROSTATIC, Start Serial: 105487

1шт.

13

3144219R91

TUBE

ASSY, INJECTION CYLINDER 4 - BOSCH INJECTION C.R. PUMP, SYNCHROMESH, Start Serial: 069908

1шт.

13

3132167R11

PIPE

ASSY, INJECTION CYLINDER 4

1шт.

14

3144382R1

TUBE ASSY.

OVERFLOW - BOSCH INJECTION C.R. PUMP, HYDROSTATIC, Start Serial: 105487

1шт.

14

3144382R1

TUBE ASSY.

OVERFLOW - BOSCH INJECTION C.R. PUMP, SYNCHROMESH, Start Serial: 069908

1шт.

14

3138685R1

PIPE

OVERFLOW

1шт.

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

15

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING

2шт.

16

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

COMPRESSION

2шт.

17

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

SPECIAL TEE

1шт.

18

3055480R1

SPACER

PIPE

1шт.

19

3132767R1

CLAMP

PIPE

1шт.

20

3132174R1

LINK

FUEL LINE FIXING

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

21

3132766R1

CLAMP

PIPE

1шт.

22

3132768R1

CLAMP

PIPE

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

3052189R1

BELLEVILLE WASHER

1/4 LOCK

1шт.

3144238R91

INJECTION PIPE

SET, AS REQD - BOSCH INJECTION C.R. PUMP, HYDROSTATIC, NOT ILLUSTRATED, Start Serial: 105487

1шт.

3144238R91

INJECTION PIPE

SET, AS REQD - BOSCH INJECTION C.R. PUMP, SYNCHROMESH, NOT ILLUSTRATED, Start Serial: 069908

1шт.
